Q25M/1-F1S-111/A1/M1-F3D

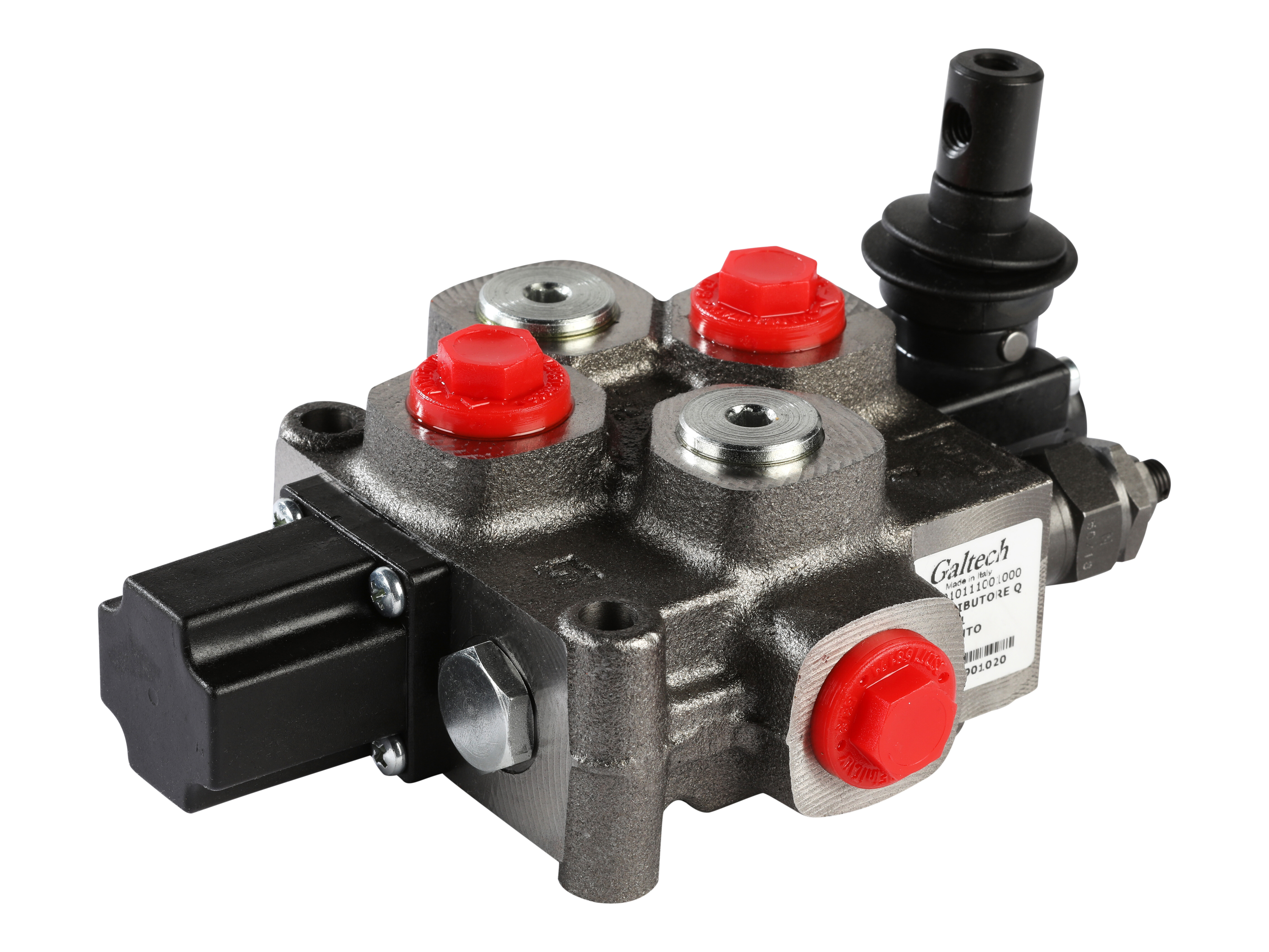

1-section Q25 monoblock directional valve with built-in pressure relief valve and one spool. Manually activated
Spool function: Double acting with port A and B open to T in neutral position. Spring centered.
Open center port P to T in neutral position.
Partnumber:
025-1003
Package size:
0 pcs
Min. order quantity is:
1 pcs
Antal sektioner
1
Arbejdsporte
G 3/8 BSP
Flow Nominel
30 lpm
Forureningsgrad maks.
16/14/12 - ISO 4406
Håndtag
Exclusive
Materiale
Cast iron
Model kode
Q25M/1-F1S-111/A1/M1-F3D
Mærke navn
Walvoil
Olieviskositet anbefalet
10 - 400 cSt
Port P1
G 3/8 BSP
Port P2
G 3/8 BSP
Port T1
G 1/2 BSP
Port T2
G 3/8 BSP
Temperatur arbejdsvæske maks.
+80 °C
Temperatur maks.
+80 °C
Temperatur min.
-30 °C
Temperatur omgivelse maks.
+60 °C
Temperatur omgivelse min.
-40 °C
Tryk T maks.
25 bar
Tryk maks.
300 bar
Trykbegrænsningsventil
Yes
Trykindstilling maks.
280 bar
Trykindstilling min.
30 bar
Trykvidereføring
No
Package size
0 pcs
Barcode
5704295201221
Gross weight
2,91 Kg
Net weight
2,91 Kg
Country of origin
ITA
Intrastat code
84812010
1-section Q25 monoblock directional valve with built-in pressure relief valve and one spool. Manually activated
Spool function: Double acting with port A and B open to T in neutral position. Spring centered.
Open center port P to T in neutral position.
