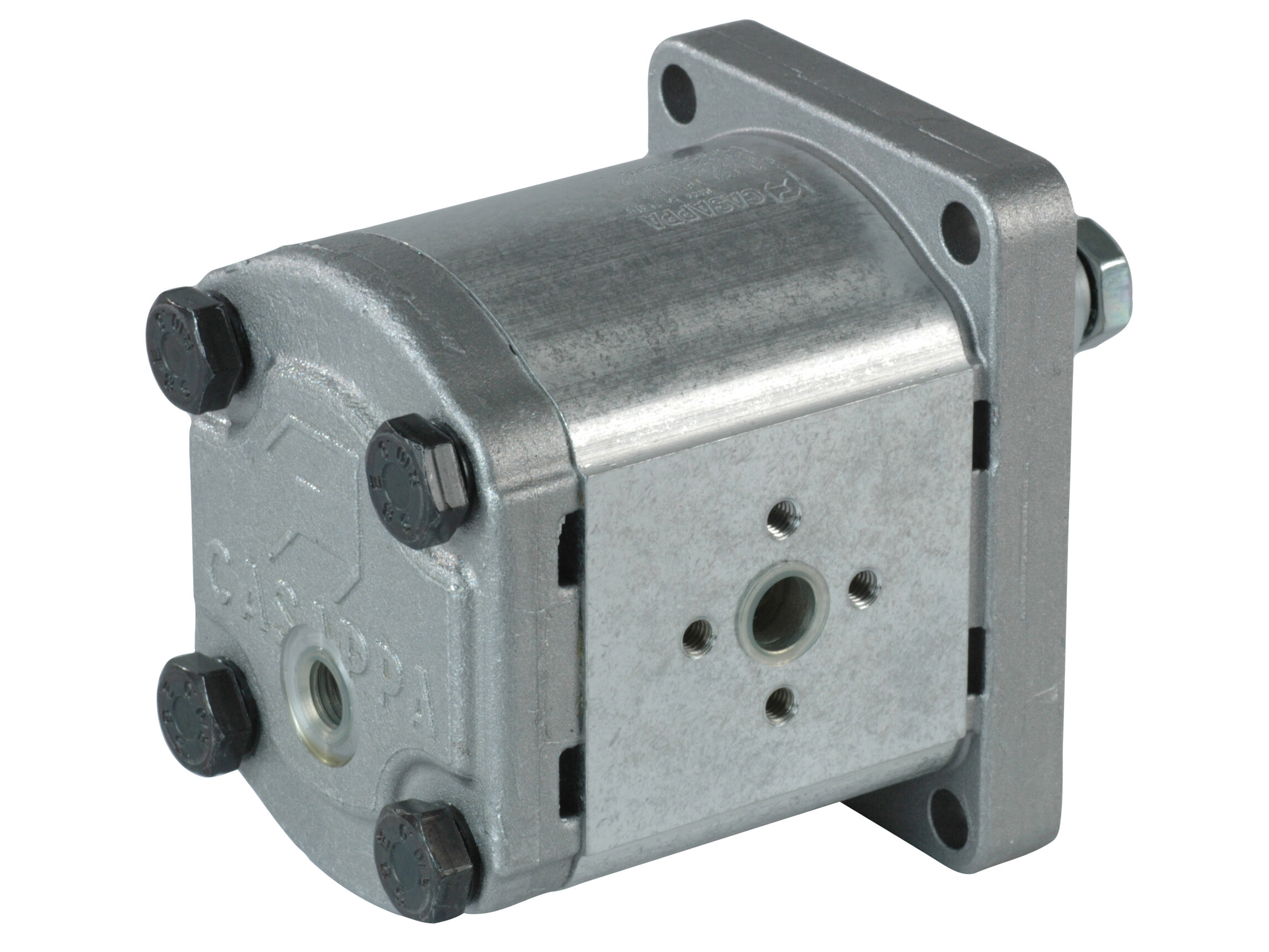

PLM20.8R0-82E2-LEA/EA-N-EL-DH Polaris motor, Casappa

PLM20.8R0-82E2-LEA/EA-N-EL-DH Polaris motor, Casappa

Casappa Polaris, series 2 gear motor..

Housing: Aluminium..

Gear wheels with slide bearings and two aluminium end plates..

Front- and rear cover: Aluminium.

Connection flanges must be ordered separately.

Varenummer:

01999813

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tilbehør (3)

Straight flange 1/2" BSP - (4) 30mm

Partnumber: 1RD1/2X30

Flange 90° 1/2" BSP - (3) 30mm

Partnumber: 1RGD1/2X30

Rørflange 1/2" BSP - (4) Boltcirkel 30mm

Partnumber: DFI1/2X30

Specifications
Dimensions and shipping

Brand Name

Casappa

Contamination level max.

19/17/14 - ISO 4406

Displacement

8.26 cm3

Model code

PLM20.8R0-82E2-LEA/EA-N-EL (DH)

Mounting flange

EU37 - 96x72

Number of mounting holes

Oil viscocity recommended

12 - 100 cSt

Port inlet

EU30

Port outlet

EU30

Pressure continous max.

250 bar

Pressure intermittent max.

280 bar

Rotation direction

Reversible (CW/CCW)

Rotational speed max.

3500 rpm

Shaft cone

1:8

Shaft keyway

3,2 mm

Shaft type

Tapered

Package size

0 pcs

Barcode

5704334439233

Gross weight

2,80 Kg

Net weight

2,80 Kg

Country of origin

ITA

Intrastat code

84122981

Product information

Casappa Polaris, series 2 gear motor..

Housing: Aluminium..

Gear wheels with slide bearings and two aluminium end plates..

Front- and rear cover: Aluminium.

Connection flanges must be ordered separately.
