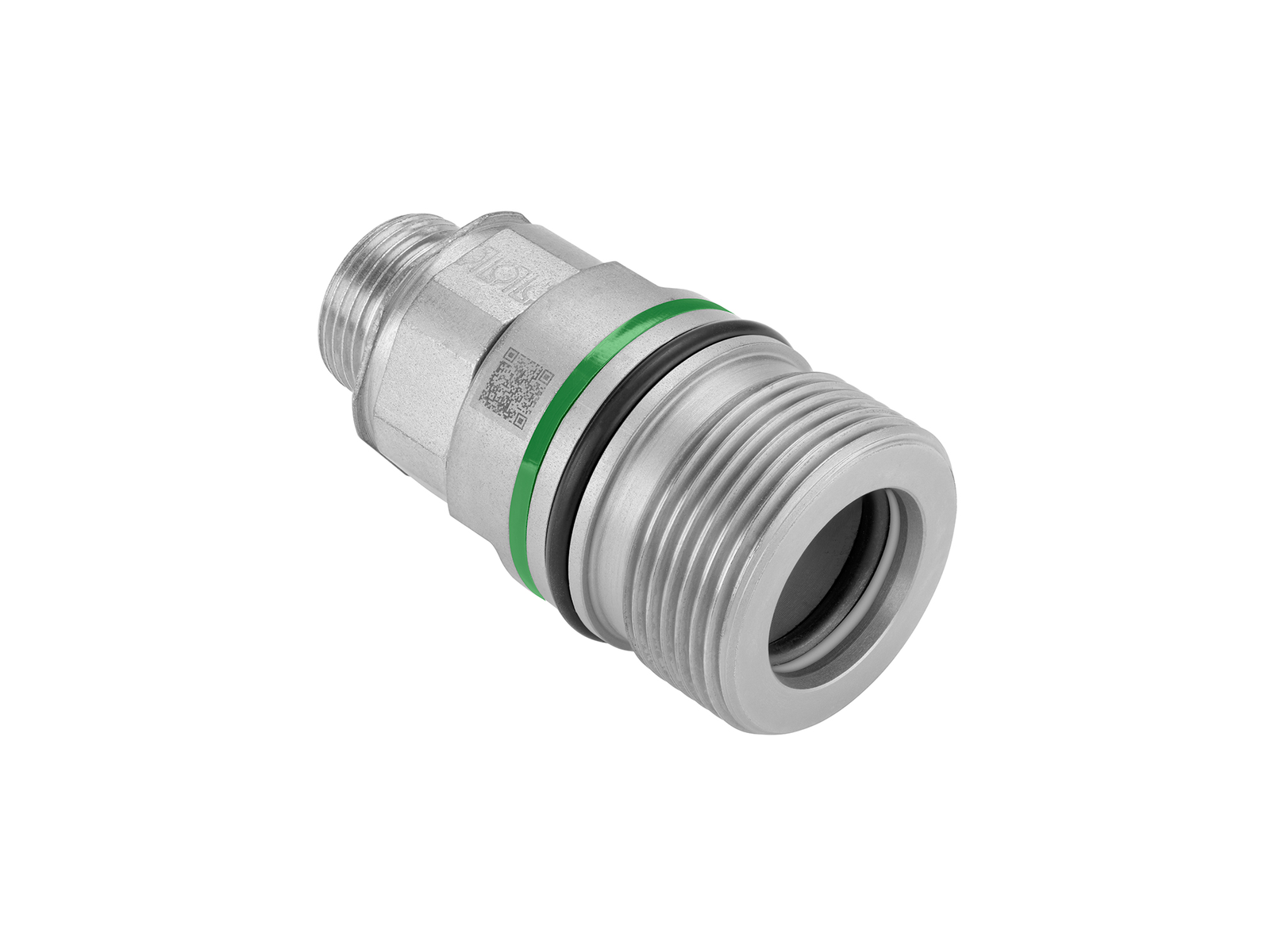

Screw coupling female HSN - DN25 - M36x2 (25S)

VÆLG VARIANT

Varenummer	Beskrivelse	Mærke navn	Størrelse	Materiale	Tryk maks.
HSN-06-F-08S	Screw coupling female HSN - DN06.3 - M16x1.5 (8S)	Stauff	1/4 "	Kulstofstål	450 bar
HSN-12-F-12S	Screw coupling female HSN - DN12.5 - M20x1.5 (12S)	Stauff	1/2 "	Kulstofstål	400 bar
HSN-12-F-16S	Screw coupling female HSN - DN12.5 - M24x1.5 (16S)	Stauff	1/2 "	Kulstofstål	400 bar
HSN-19-F-20S	Screw coupling female HSN - DN19 - M30x2 (20S)	Stauff	3/4 "	Kulstofstål	400 bar
HSN-25-F-20S	Screw coupling female HSN - DN25 - M30x2 (20S)	Stauff	1 "	Kulstofstål	350 bar
HSN-25-F-25S	Screw coupling female HSN - DN25 - M36x2 (25S)	Stauff	1 "	Kulstofstål	350 bar
HSN-25-F-30S	Screw coupling female HSN - DN25 - M42x2 (30S)	Stauff	1 "	Kulstofstål	350 bar
HSN-38-F-30S	Screw coupling female HSN - DN38 - M42x2 (30S)	Stauff	1.1/2 "	Kulstofstål	350 bar
HSN-38-F-38S	Screw coupling female HSN - DN38 - M52x2 (38S)	Stauff	1.1/2 "	Kulstofstål	350 bar

Anvendelsesområde

Entreprenørmaskiner, Industrihydraulik

Frakobling

Skrue

Gevind DIN standard

DIN 3861

Materiale

Kulstofstål

Mærke navn

Stauff

Overfladebehandling

Zink-Nikkel belagt

Samling under tryk

Tilladt

Serie

Temperatur maks.

+100

Temperatur min.

-25

Tilkobling

Skrue
