UQD 08 Lynkoblinger

VÆLG VARIANT

Varenummer	Beskrivelse	Størrelse	Gevind	DIN størrelse	Tryk sprængning min.
11358734	UQD08 Compact Plug 1/2 Male BSPP Blue	1/2 "	G 1/2	-8	20.7 bar
11358746	UQD08 Compact Plug 1/2 Male BSPP Red	1/2 "	G 1/2	-8	20.7 bar
11368440	UQD08 Compact Plug 7/8 Male ORB Blue	1/2 "	7/8-14 UNF	-10	20.7 bar
11368458	UQD08 Compact Plug 7/8 Male ORB Red	1/2 "	7/8-14 UNF	-10	20.7 bar
11368468	UQD08 Compact Socket 5/8 Hose Tail Blue	1/2 "	5/8	-10	20.7 bar
11368473	UQD08 Compact Socket 5/8 Hose Tail Red	1/2 "	5/8	-10	20.7 bar
11368540	UQD08 Compact Socket 5/8 Hose Tail Blue	1/2 "	5/8	-10	20.7 bar
11368547	UQD08 Compact Socket 5/8 Hose Tail Red	1/2 "	5/8	-10	20.7 bar
11370285	UQD08 Compact Socket 1/2 Male BSPP Red	1/2 "	G 1/2	-8	20.7 bar
11370286	UQD08 Compact Socket 1/2 Male BSPP Blue	1/2 "	G 1/2	-8	20.7 bar

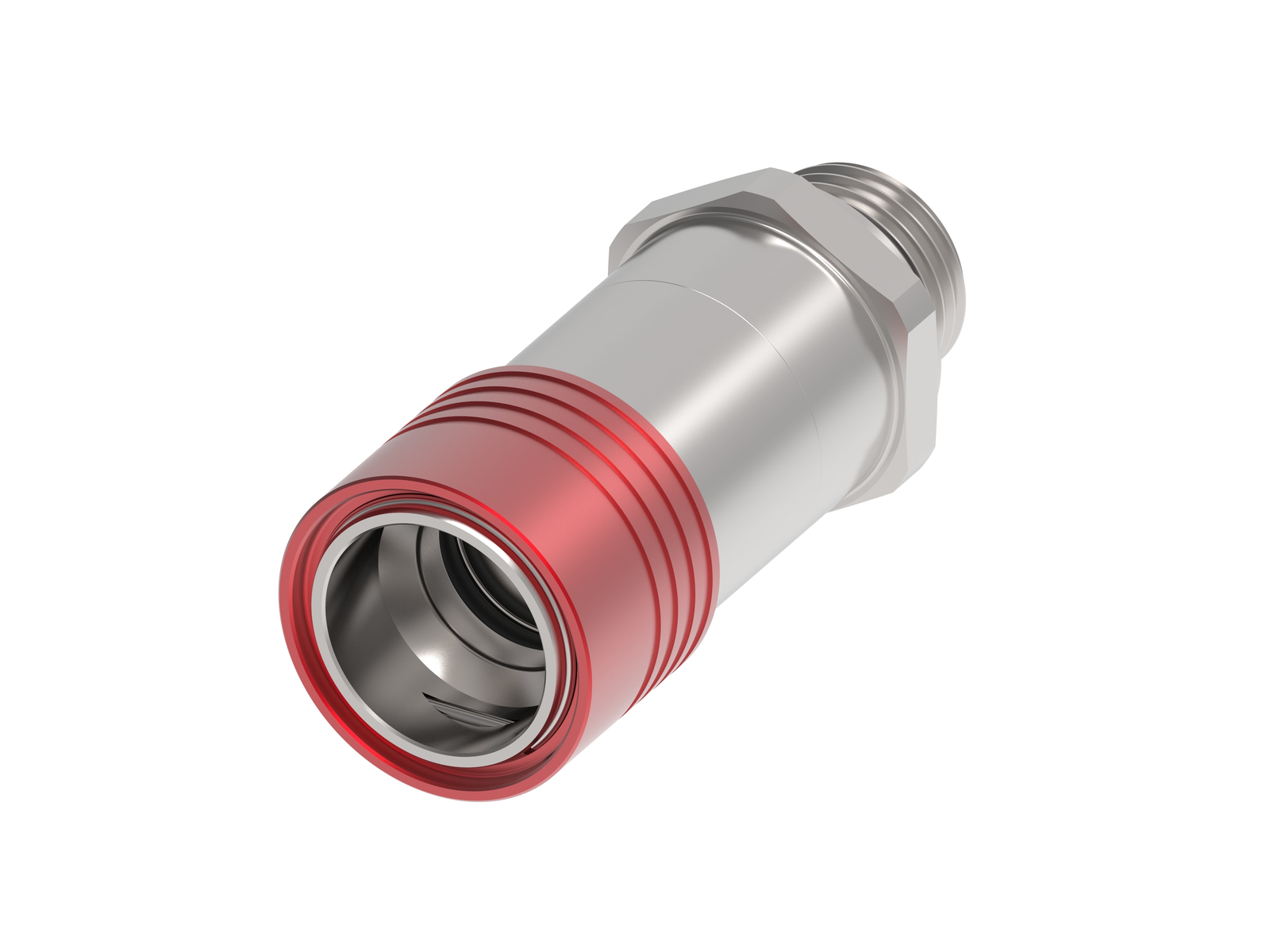

11421782	UQD08 Compact Socket 1/2 Male BSPP Red	1/2 "	G 1/2	-8	20.7 bar

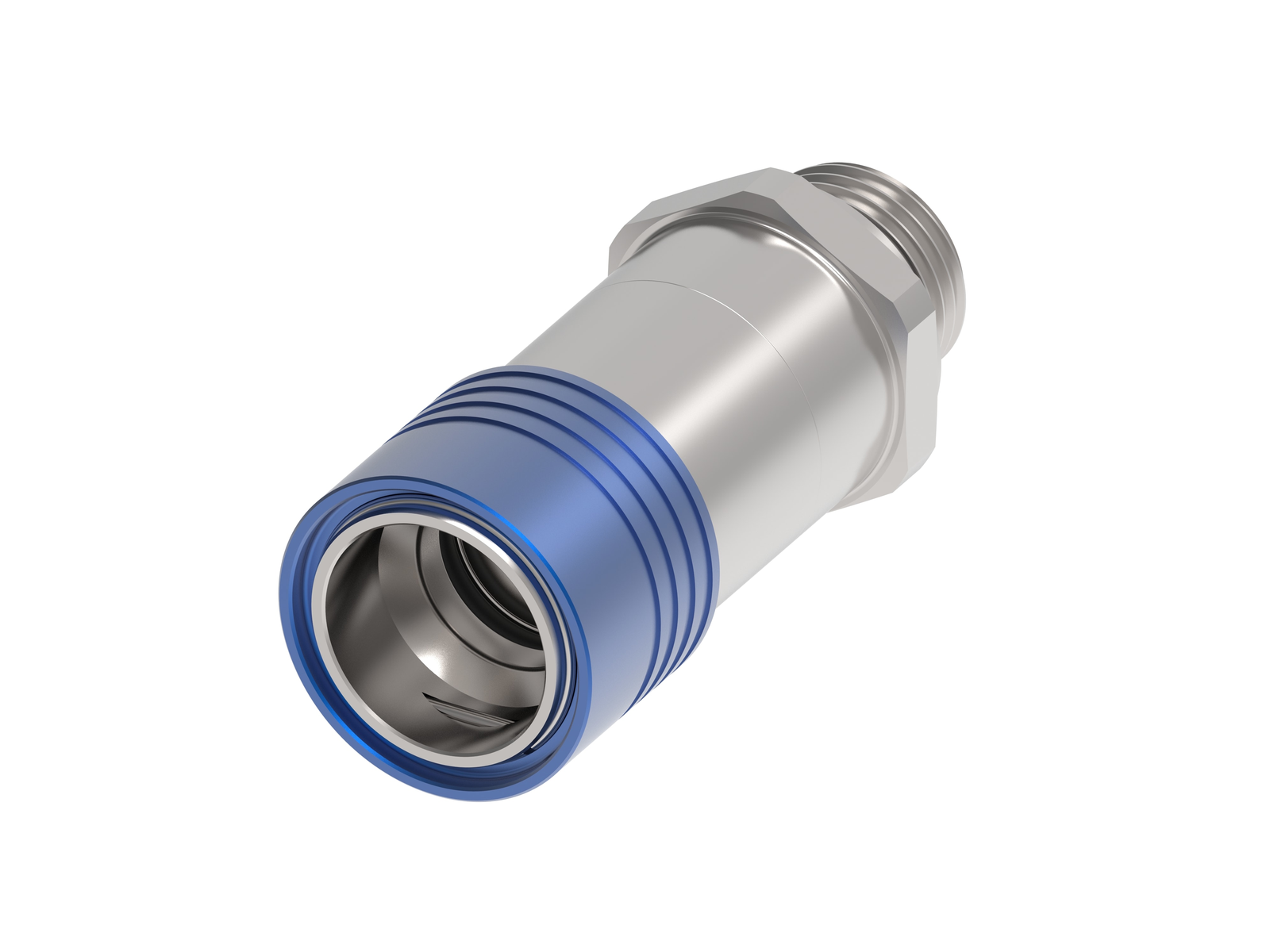

11421783	UQD08 Compact Socket 1/2 Male BSPP Blue	1/2 "	G 1/2	-8	20.7 bar
12029056	UQD08 Compact Plug 7/8 Male ORB Red	1/2 "	7/8-14 UNF	-10	20.7 bar
12029057	UQD08 Compact Plug 7/8 Male ORB Blue	1/2 "	7/8-14 UNF	-10	20.7 bar
8UQP50MBSRD	UQD08 Plug 1/2 Male BSPP Red	1/2 "	G 1/2	-8	20.7 bar
8UQP87ORMBL	UQD08 Plug 7/8 Male ORB Blue	1/2 "	7/8-14 UNF	-10	20.7 bar
8UQP87ORMRD	UQD08 Plug 7/8 Male ORB Red	1/2 "	7/8-14 UNF	-10	20.7 bar

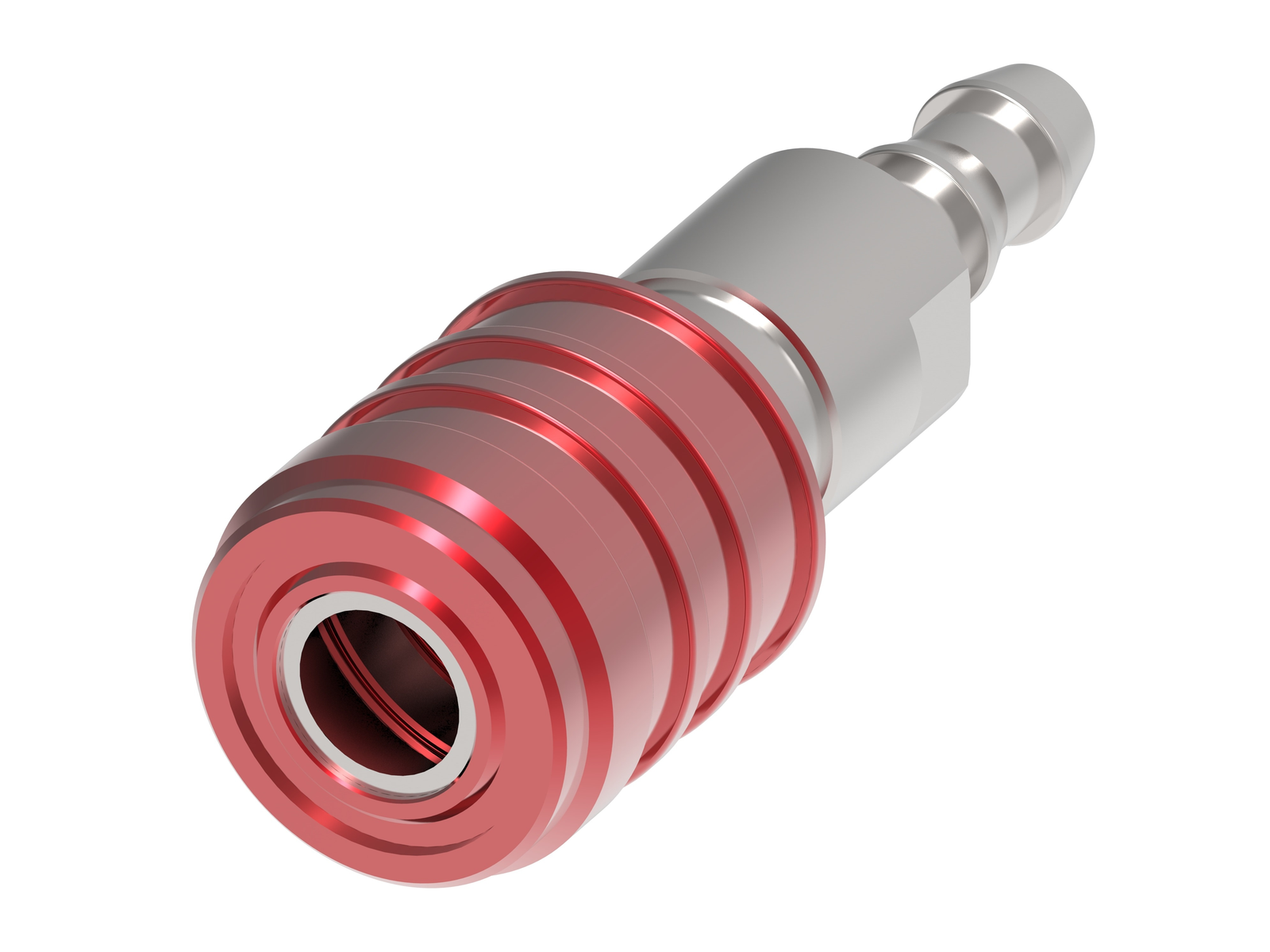

8UQS62HARD	UQD08 Socket 5/8 Hose Tail Red	1/2 "	5/8	-10	20.7 bar

Arbejdstryk

6,9

Flow

17,8

Lynkobling type

Push to connect

Maks. luftindtrængning

0,029

Maks. væsketab

0,03

Mærke navn

Danfoss

Pakningsmateriale

EPDM

Størrelse

1/2

Temperatur maks.

150

Temperatur min.

-40

Tilkobling

Manuel tilslutning

Tryk sprængning min.

20.7

Ventiltype

2-vejs

Vinkel
