UQD 06 Lynkoblinger

VÆLG VARIANT

Varenummer	Beskrivelse	Størrelse	Gevind	DIN størrelse	Tryk sprængning min.
11348376	UQD06 compact socket 3/4 male ORB red	3/8 "	3/4-16 UNF	-8	20.7 bar
11348377	UQD06 compact socket 3/4 male ORB blue	3/8 "	3/4-16 UNF	-8	20.7 bar
11358710	UQD06 Compact Plug 3/8 Male BSPP Red	3/8 "	G 3/8	-6	20.7 bar
11358716	UQD06 Compact Plug 3/8 Male BSPP Blue	3/8 "	G 3/8	-6	20.7 bar
11372495	UQD06 Compact Plug 3/4 Male ORB Red	3/8 "	3/4-16 UNF	-8	20.7 bar
11372531	UQD06 Compact Plug 3/4 Male ORB Blue	3/8 "	3/4-16 UNF	-8	20.7 bar

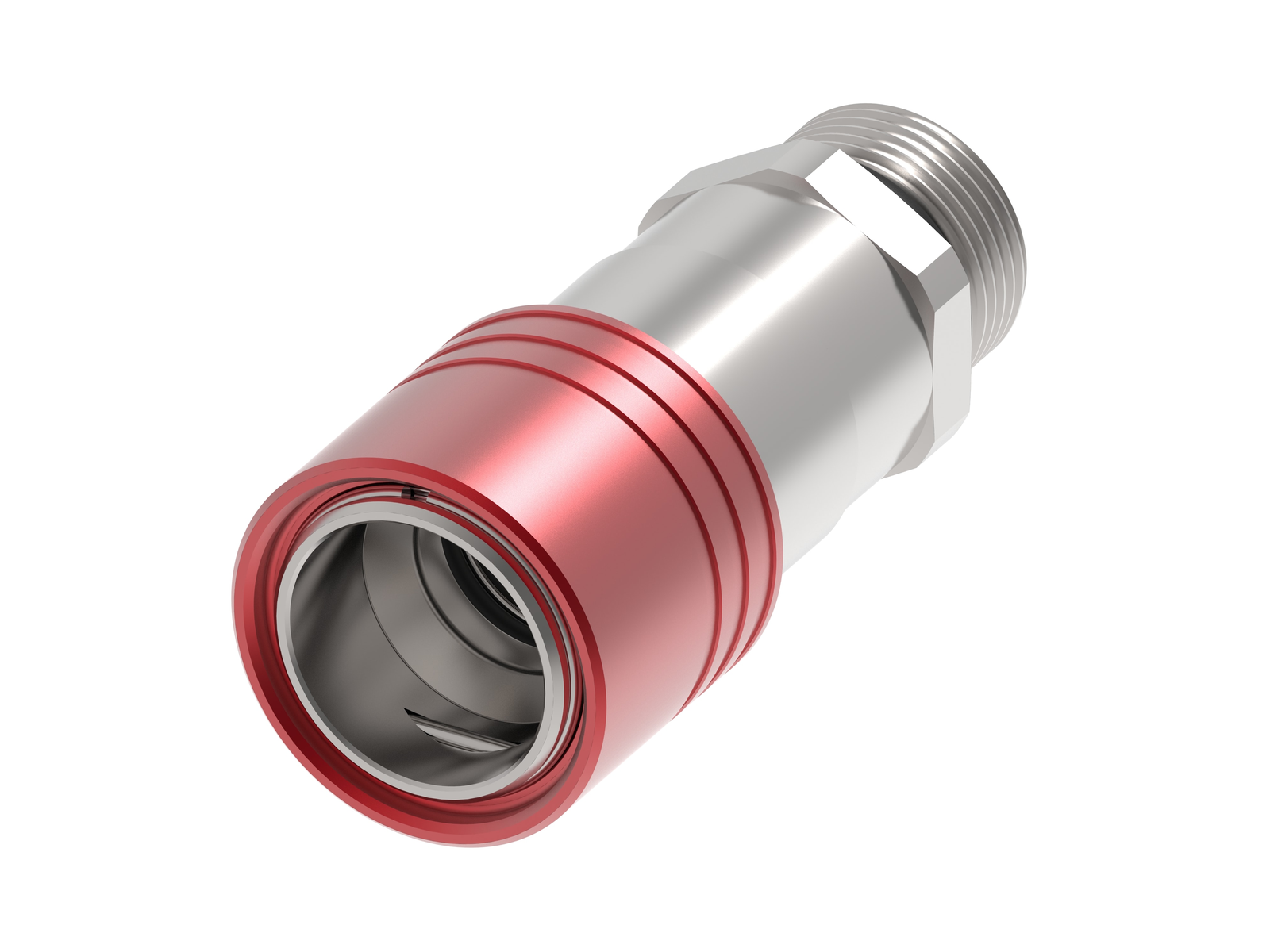

11375906	UQD06 Compact Socket 3/4 Male ORB Red	3/8 "	3/4-16 UNF	-8	20.7 bar

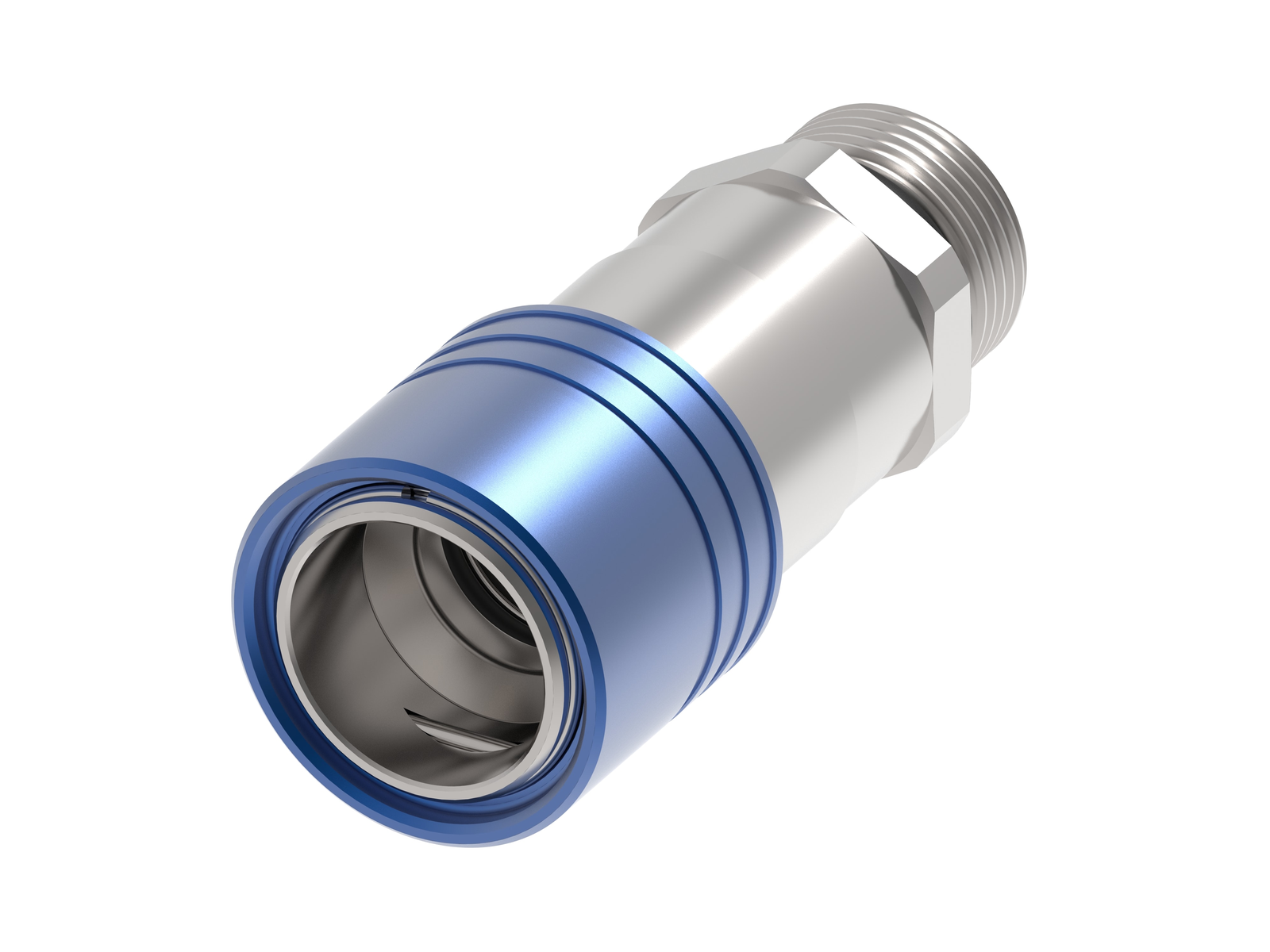

11375917	UQD06 Compact Socket 3/4 Male ORB Blue	3/8 "	3/4-16 UNF	-8	20.7 bar
11375918	UQD06 Compact Socket 1/2 Hose Tail Red	3/8 "	1/2	-8	20.7 bar
11375919	UQD06 Compact Socket 1/2 Hose Tail Blu	3/8 "	1/2	-8	20.7 bar
11426424	UQD06 Plug 3/4 Male ORB Blue	3/8 "	3/4-16 UNF	-8	20.7 bar
11426442	UQD06 Plug 3/4 Male ORB Red	3/8 "	3/4-16 UNF	-8	20.7 bar
12029053	UQD06 Plug Compact 3/4 Male ORB Blue	3/8 "	3/4-16 UNF	-8	20.7 bar
12029054	UQD06 Plug Compact 3/4 Male ORB Red	3/8 "	3/4-16 UNF	-8	20.7 bar
6UQP37MBSBL	UQD06 Plug 3/8 Male BSPP Blue	3/8 "	G 3/8	-6	20.7 bar
6UQP37MBSRD	UQD06 Plug 3/8 Male BSPP Red	3/8 "	G 3/8	-6	20.7 bar
6UQP75ORMBL	UQD06 Plug 3/4 Male ORB Blue	3/8 "	3/4-16 UNF	-8	20.7 bar
6UQP75ORMRD	UQD06 Plug 3/4 Male ORB Red	3/8 "	3/4-16 UNF	-8	20.7 bar
6UQS50HABLS11	UQD06 Socket 1/2 Hose Tail Blue	3/8 "	1/2	-8	20.7 bar
6UQS50HARDS11	UQD06 Socket 1/2 Hose Tail Red	3/8 "	1/2	-8	20.7 bar

Arbejdstryk

6,9

Flow

11,4

Lynkobling type

Push to connect

Maks. luftindtrængning

0,027

Maks. væsketab

0,022

Mærke navn

Danfoss

Pakningsmateriale

EPDM

Størrelse

3/8

Temperatur maks.

150

Temperatur min.

-40

Tilkobling

Manuel tilslutning

Tryk sprængning min.

20.7

Ventiltype

2-vejs

Vinkel
