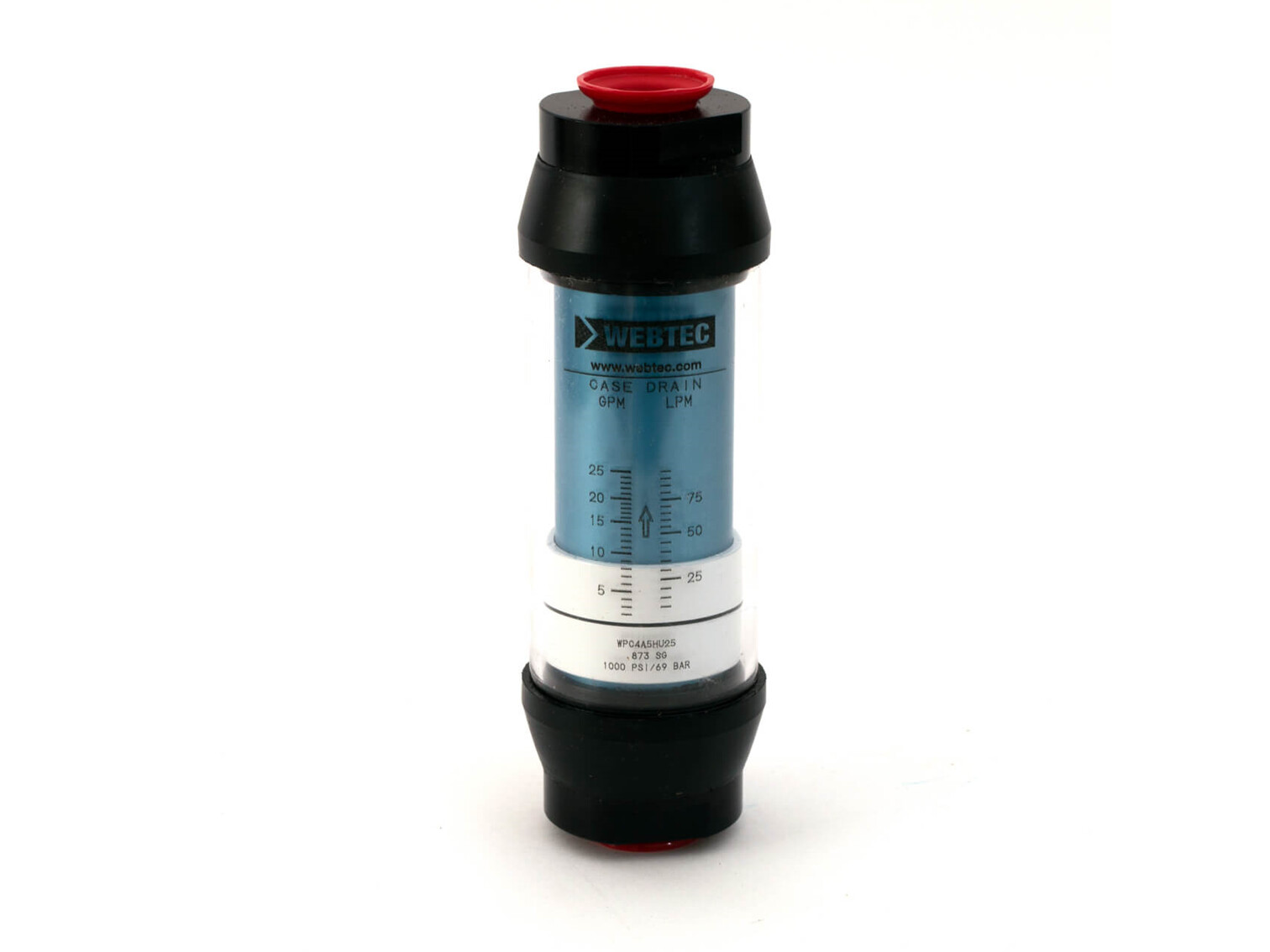

Hydraulik Flow Monitor - Webtec WP

VÆLG VARIANT

Varenummer	Beskrivelse	Flowmåling min.	Flowmåling maks.
WPB3A6HR01	WPB3A6HR01 - Hydraulic Flow Monitor - 3/8" BSP 240 BAR 0.5 - 4 lpm	0.5 lpm	4 lpm
WPB3A6HR02	WPB3A6HR02 - Hydraulic Flow Monitor - 3/8" BSP 240 BAR 1 - 8 lpm	1 lpm	8 lpm
WPB3A6HT05	WPB3A6HT05 - Hydraulic Flow Monitor - 1/2" BSP 240 BAR 2 - 19 lpm	2 lpm	19 lpm
WPB3A6HT10	WPB3A6HT10 - Hydraulic Flow Monitor - 1/2" BSP 240 BAR 4 - 38 lpm	4 lpm	38 lpm
WPB3A6HT15	WPB3A6HT15 - Hydraulic Flow Monitor - 1/2" BSP 240 BAR 4 - 56 lpm	4 lpm	56 lpm
WPB3S7HR10	WPB3S7HR10 - Hydraulic Flow Monitor - 3/8" BSP 420 BAR 4 - 38 lpm	4 lpm	38 lpm
WPB3S7HT01	WPB3S7HT01 - Hydraulic Flow Monitor - 1/2" BSP 420 BAR 0.5 - 4 lpm	0.5 lpm	4 lpm
WPB3S7HT02	WPB3S7HT02 - Hydraulic Flow Monitor - 1/2" BSP 420 BAR 1 - 8 lpm	1 lpm	8 lpm
WPB3S7HT15	WPB3S7HT15 - Hydraulic Flow Monitor - 1/2" BSP 420 BAR 4 - 56 lpm	4 lpm	56 lpm
WPB4A6HU10	WPB4A6HU10 - Hydraulic Flow Monitor - 3/4" BSP 240 BAR 4 - 38 lpm	4 lpm	38 lpm
WPB4A6HU20	WPB4A6HU20 - Hydraulic Flow Monitor - 3/4" BSP 240 BAR 10 - 75 lpm	10 lpm	7.5 lpm
WPB4A6HU30	WPB4A6HU30 - Hydraulic Flow Monitor - 3/4" BSP 240 BAR 10 - 115 lpm	10 lpm	115 lpm
WPB4A6HV25	WPB4A6HV25 - Hydraulic Flow Monitor - 1" BSP 240 BAR 10 - 100 lpm	10 lpm	100 lpm
WPB4A6HV40	WPB4A6HV40 - Hydraulic Flow Monitor - 1" BSP 240 BAR 15 - 150 lpm	15 lpm	150 lpm
WPB4S7HU05	WPB4S7HU05 - Hydraulic Flow Monitor - 3/4" BSP 420 BAR 2 - 19 lpm	2 lpm	19 lpm
WPB4S7HV50	WPB4S7HV50 - Hydraulic Flow Monitor - 1" BSP 420 BAR 15 - 190 lpm	15 lpm	190 lpm
WPB5A6HW75	WPB5A6HW75 - Hydraulic Flow Monitor - 1 1/4" BSP 240 BAR 30 - 280 lpm	30 lpm	280 lpm
WPB5A6HW88	WPB5A6HW88 - Hydraulic Flow Monitor - 1 1/4" BSP 240 BAR 50 - 375 lpm	50 lpm	375 lpm
WPB5A6HW99	WPB5A6HW99 - Hydraulic Flow Monitor - 1 1/4" BSP 240 BAR 75 - 550 lpm	75 lpm	550 lpm
WPB5A6HX75	WPB5A6HX75 - Hydraulic Flow Monitor - 2" BSP 240 BAR 30 - 280 lpm	30 lpm	280 lpm
WPB5A6HX99	WPB5A6HX99 - Hydraulic Flow Monitor - 2" BSP 240 BAR 75 - 550 lpm	75 lpm	550 lpm
WPB5A6HY99	WPB5A6HY99 - Hydraulic Flow Monitor - 1 1/2" BSP 240 BAR 75 - 550 lpm	75 lpm	550 lpm
WPB5S7HY99	WPB5S7HY99 - Hydraulic Flow Monitor - 1 1/2" BSP 420 BAR 75 - 550 lpm	75 lpm	550 lpm
WPC3A5HT01	WPC3A5HT01 - Hydraulic Case Drain Monitor - 1/2" BSP 69 BAR 0.5 - 4 lpm	0.5 lpm	4 lpm
WPC3A5HT15	WPC3A5HT15 - Hydraulic Case Drain Monitor - 1/2" BSP 69 BAR 4 - 56 lpm	4 lpm	56 lpm
WPC4A5HU25	WPC4A5HU25 - Hydraulic Case Drain Monitor - 3/4" BSP 69 BAR 10 - 100 lpm	10 lpm	100 lpm
WPC4A5HV30	WPC4A5HV30 - Hydraulic Case Drain Monitor - 1" BSP 69 BAR 10 - 115 lpm	10 lpm	115 lpm

Specifikationer
Dimensioner og forsendelse (vælg variant)

Temperatur maks.

+115

Produkt information
Målskitse (vælg variant)
