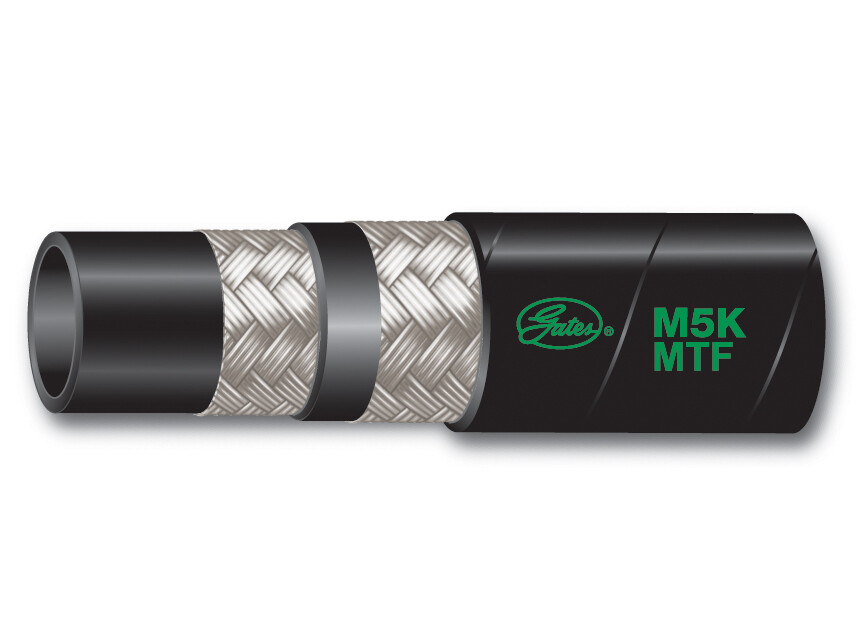

M5K - MegaTuff hydraulikslanger

SELECT VARIANT

Partnumber	Description	Hose size	Pressure max.	Hose type	Bend radius
04M5K-MTF	1/4" Hydraulikslange M5K-MegaTuff - 350 bar - 2SC	1/4 "	350 bar	M5K-MTF	52 mm
06M5K-MTF	3/8" Hydraulikslange M5K-MegaTuff - 350 bar - 2SC	3/8 "	350 bar	M5K-MTF	65 mm
08M5K-MTF	1/2" Hydraulikslange M5K-MegaTuff - 350 bar - 2SC	1/2 "	350 bar	M5K-MTF	90 mm

Brand Name

Gates

Cover

NBR/PVC

Flameresistant

Hose type

M5K-MTF

Hoseapprovals

BV, DNV, LR, MSHA

Order unit

Løsslange

Pressure burst min.

1400

Pressure max.

350

REACH compliant

Reinforcement

2 lag ståltrådsflet

RoHs compliant

Standard EN

EN 857 2SC

Standard ISO

ISO 11237 R19, ISO 18752 TYPE B

Standard SAE

SAE 100R19

Temperature intermittent max.

+121

Temperature max.

+100

Temperature min.

-40
