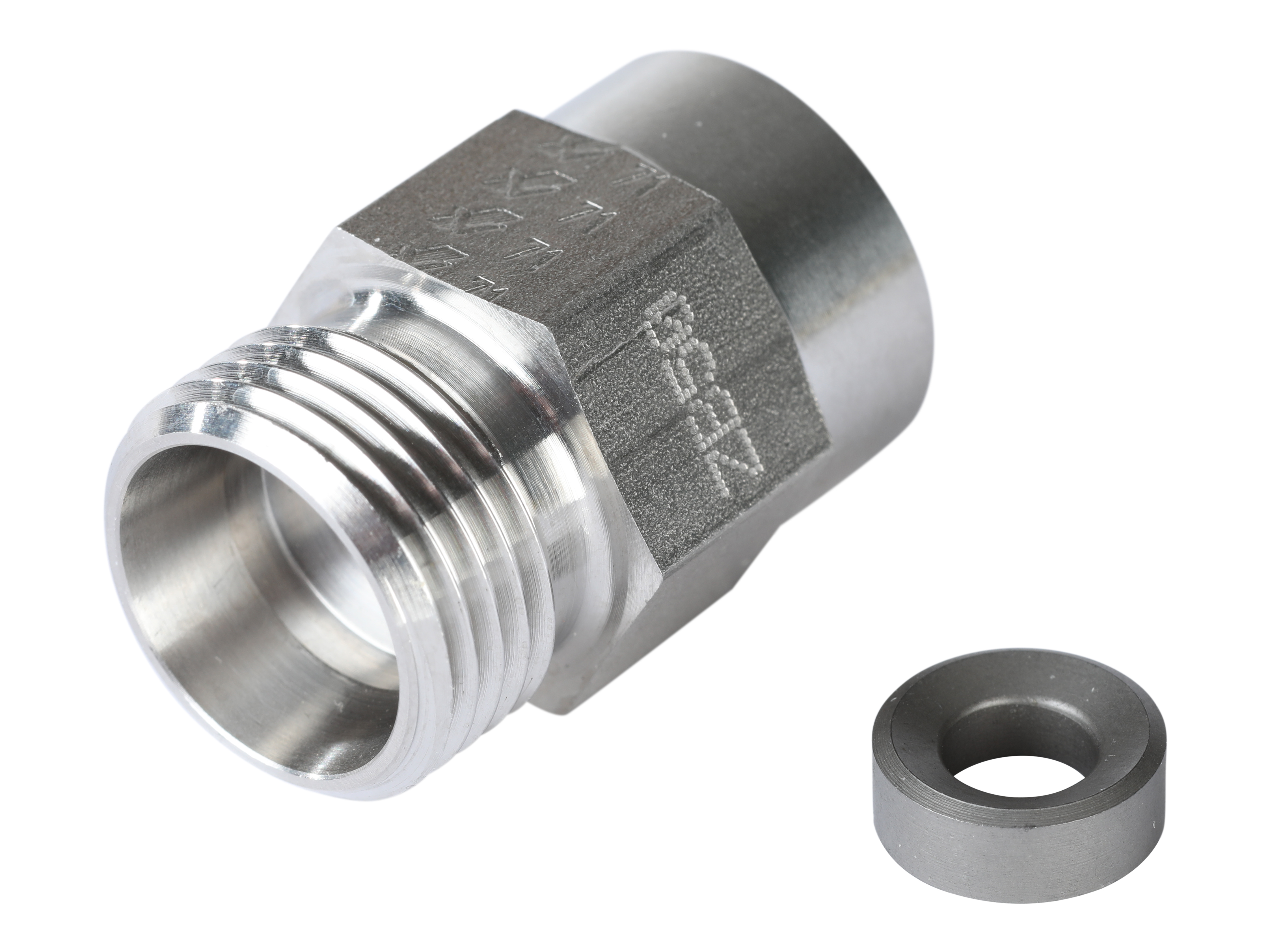

Manometerforskruning - L-serie - DIN udvendig x BSPP indvendig rustfri - O-LX/71 / XMAV-L-SY

O06LX/71 - Manometer forskruning - ø6L x 1/4" BSP indv - AISI 316Ti

O08LX/71 - Manometer forskruning - ø8L x 1/4" BSP indv - AISI 316Ti

O10LX/71 - Manometer forskruning - ø10L x 1/4" BSP indv - AISI 316Ti

O12LR1/2X/71 - Manometer forskruning - ø12L x 1/2" BSP indv - AISI 316Ti

O12LX/71 - Manometer forskruning - ø12L x 1/4" BSP indv - AISI 316Ti

SELECT VARIANT

Partnumber	Description	Thread inner	Thread inner metric	Diameter pipe
O06LX/71	O06LX/71 - Manometer forskruning - ø6L x 1/4" BSP indv - AISI 316Ti	G 1/4 BSP	M12x1,5 MM	6 mm
O08LX/71	O08LX/71 - Manometer forskruning - ø8L x 1/4" BSP indv - AISI 316Ti	G 1/4 BSP	M14x1,5 MM	8 mm
O10LX/71	O10LX/71 - Manometer forskruning - ø10L x 1/4" BSP indv - AISI 316Ti	G 1/4 BSP	M16x1,5 MM	10 mm
O12LR1/2X/71	O12LR1/2X/71 - Manometer forskruning - ø12L x 1/2" BSP indv - AISI 316Ti	G 1/2 BSP	M18x1,5 MM	12 mm
O12LX/71	O12LX/71 - Manometer forskruning - ø12L x 1/4" BSP indv - AISI 316Ti	G 1/4 BSP	M18x1,5 MM	12 mm

Angle

Brand Name

Volz

Dimension D2

3.5

Material

Rustfrit stål

Material quality

1.4571 / AISI316Ti

Pressure max.

315

Safety factor

Series

Temperature max.

+400

Temperature min.

-60
