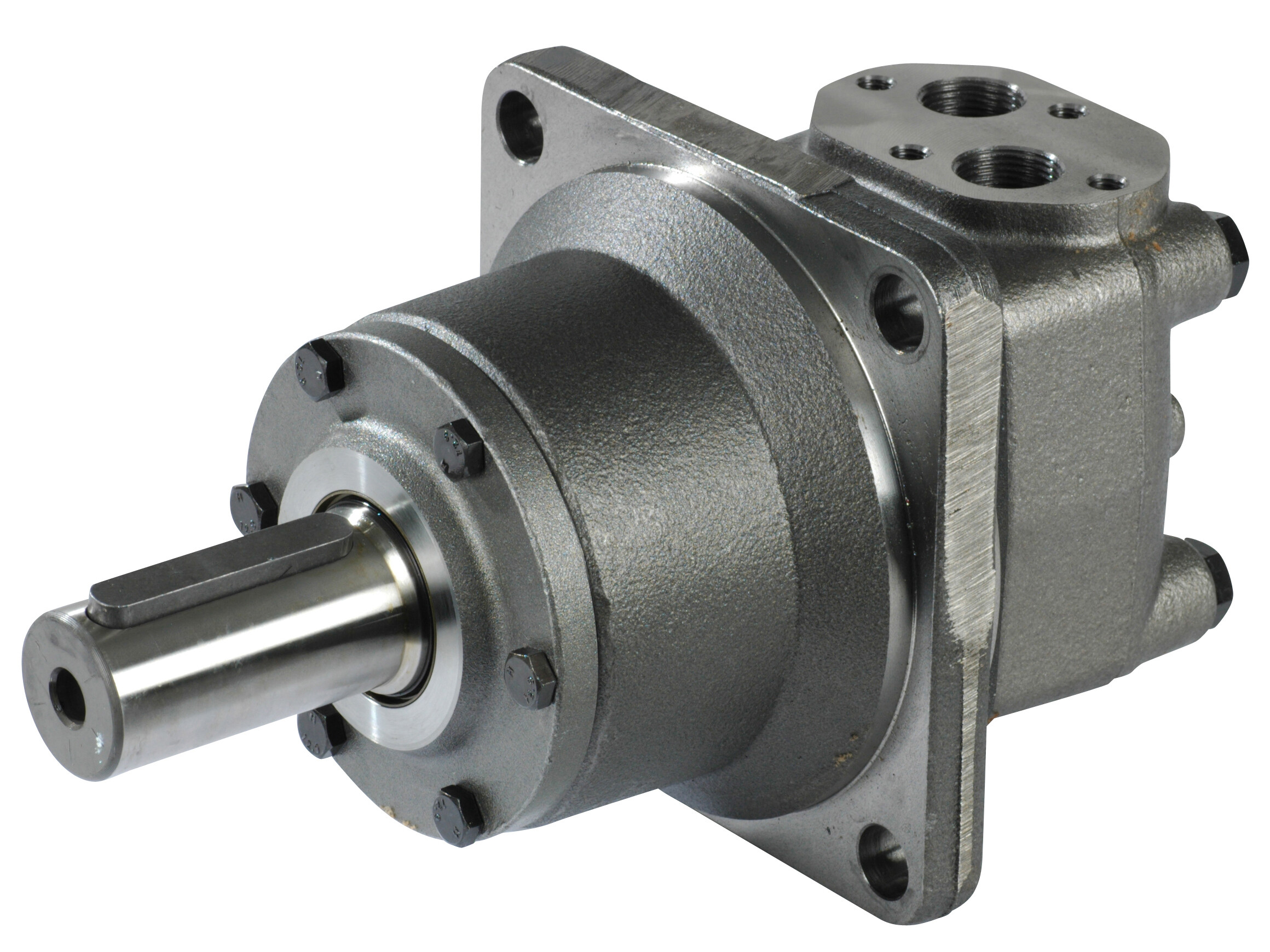

Orbitmotorer Danfoss OMTW cylindrisk aksel

OMTW 200 Orbitmotor 40mm

OMTW 250 Orbitmotor 40mm

OMTW 315 Orbitmotor 40mm

OMTW 400 Orbitmotor 40mm

OMTW 500 Orbitmotor 40mm

SELECT VARIANT

Partnumber	Description	Displacement	Shaft diameter	Shaft type	Continuous power max.
151B3025	OMTW 200 Orbitmotor 40mm	201.4 cm3	40 mm	Cylindrisk	33.5 kW
151B3026	OMTW 250 Orbitmotor 40mm	251.8 cm3	40 mm	Cylindrisk	33.5 kW
151B3027	OMTW 315 Orbitmotor 40mm	326.3 cm3	40 mm	Cylindrisk	33.5 kW
151B3028	OMTW 400 Orbitmotor 40mm	410.9 cm3	40 mm	Cylindrisk	30 kW
151B3029	OMTW 500 Orbitmotor 40mm	523.6 cm3	40 mm	Cylindrisk	26.5 kW

Brand Name

Danfoss

Contamination level max.

22/20/16 - ISO 4406

Drainport

G 1/4

Holes circle

200

Mounting flange

Hjul 160

Number of mounting holes

Oil viscocity recommended

20 - 75

Port position

Side

Recess

160,0

Shaft diameter

Shaft keyway

12,0

Shaft type

Cylindrisk

Temperature ambient max.

+90

Temperature ambient min.

-30

Working ports

G 3/4
