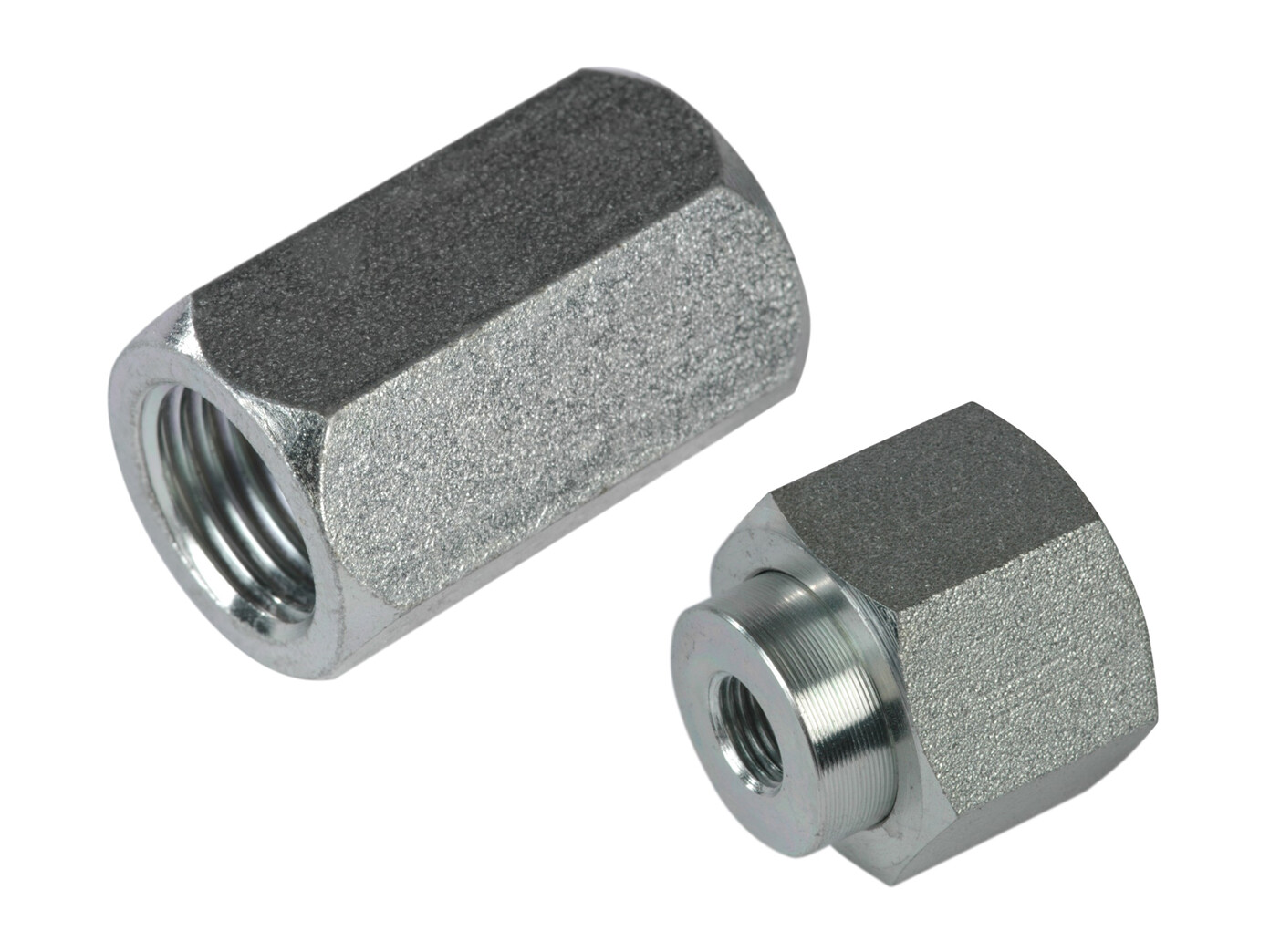

Manometernippel JIC indvendig x BSP indvendig

Manometernippel JIC indvendig x BSP indvendig

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread inner Pressure max.
FF-06-1/4 FF-06-1/4 - Manometerovergang 7/16-20 JIC indv x 1/4 BSP indv G 1/4 BSP 450 bar
FF-08-1/4 FF-08-1/4 - Manometerovergang 1/2-20 JIC indv x 1/4 BSP indv G 1/4 BSP 416 bar
FF-10-1/4 FF-10-1/4 - Manometerovergang 9/16-18 JIC indv x 1/4 BSP indv G 1/4 BSP 350 bar
FF-12-1/4 FF-12-1/4 - Manometerovergang 3/4-16 JIC indv x 1/4 BSP indv G 1/4 BSP 350 bar
FF-16-1/4 FF-16-1/4 - Manometerovergang 7/8-14 JIC indv x 1/4 BSP indv G 1/4 BSP 350 bar
FF-20-1/4 FF-20-1/4 - Manometerovergang 1.1/16-12 JIC indv x 1/4 BSP indv G 1/4 BSP 300 bar
FF-25-1/4 FF-25-1/4 - Manometerovergang 1.5/16-12 JIC indv x 1/4 BSP indv G 1/4 BSP 290 bar
FF-32-1/4 FF-32-1/4 - Manometerovergang 1.5/8-12 JIC indv x 1/4 BSP indv G 1/4 BSP 240 bar
FF-38-1/4 FF-38-1/4 - Manometerovergang 1.7/8-12 JIC indv x 1/4 BSP indv G 1/4 BSP 250 bar
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
F
G 1/4 BSP
Material
Stål
Surface treatment
El-forzinket / hvidkromatiseret
Thread inner
G 1/4
