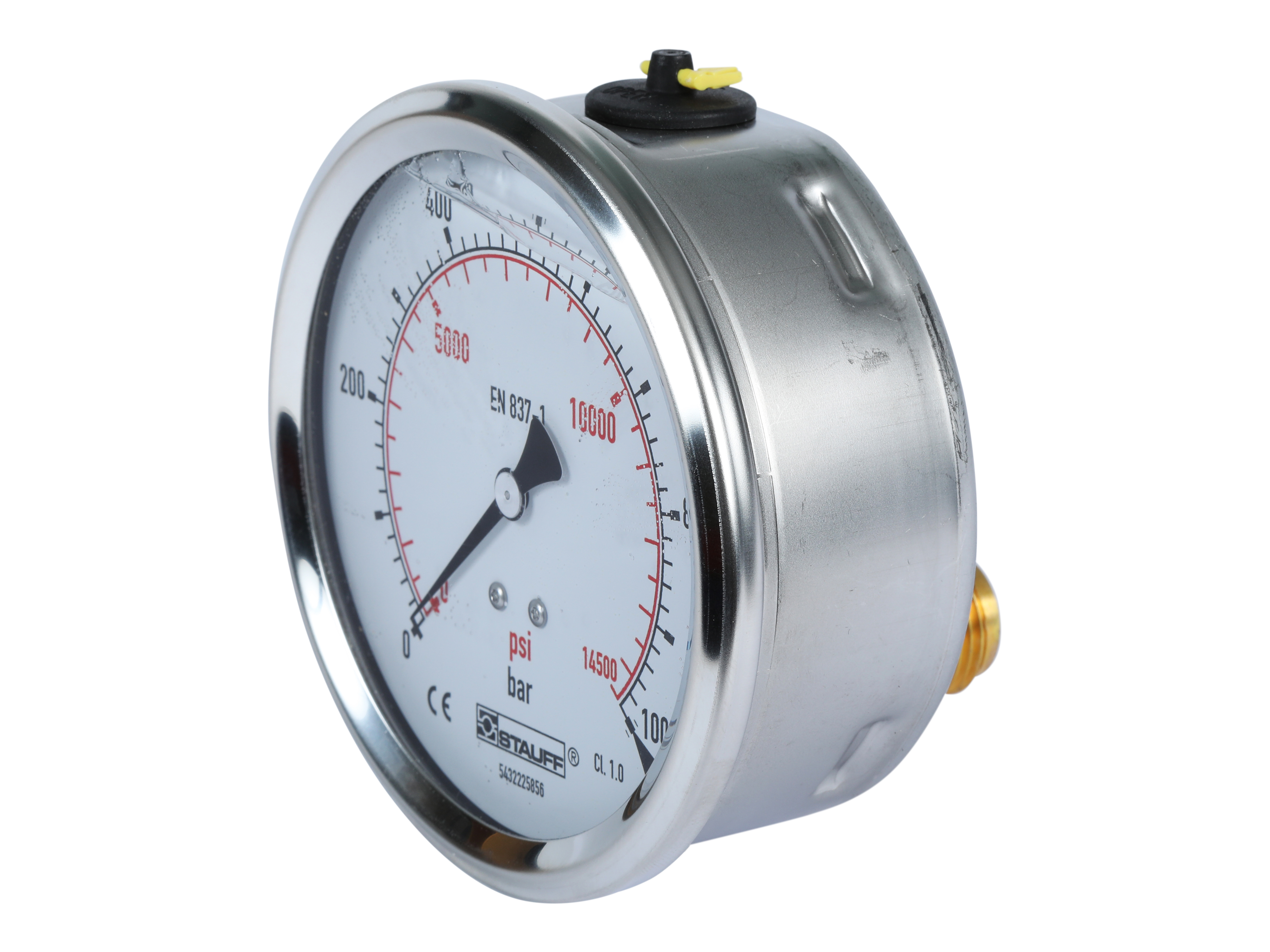

Ø100 mm manometre med bagtilslutning

VÆLG VARIANT

Varenummer	Beskrivelse	Trykindstilling min.	Trykindstilling maks.	Trykmåling nøjagtighed	Gevind
SPG100-004RB	1/2" manometer. Studs bagud. Skala 0-4 bar	0 bar	4 bar	±1,0% FS	G 1/2 BSP
SPG100-010RB	1/2" manometer. Studs bagud. Skala 0-10 bar	0 bar	10 bar	±1,0% FS	G 1/2 BSP

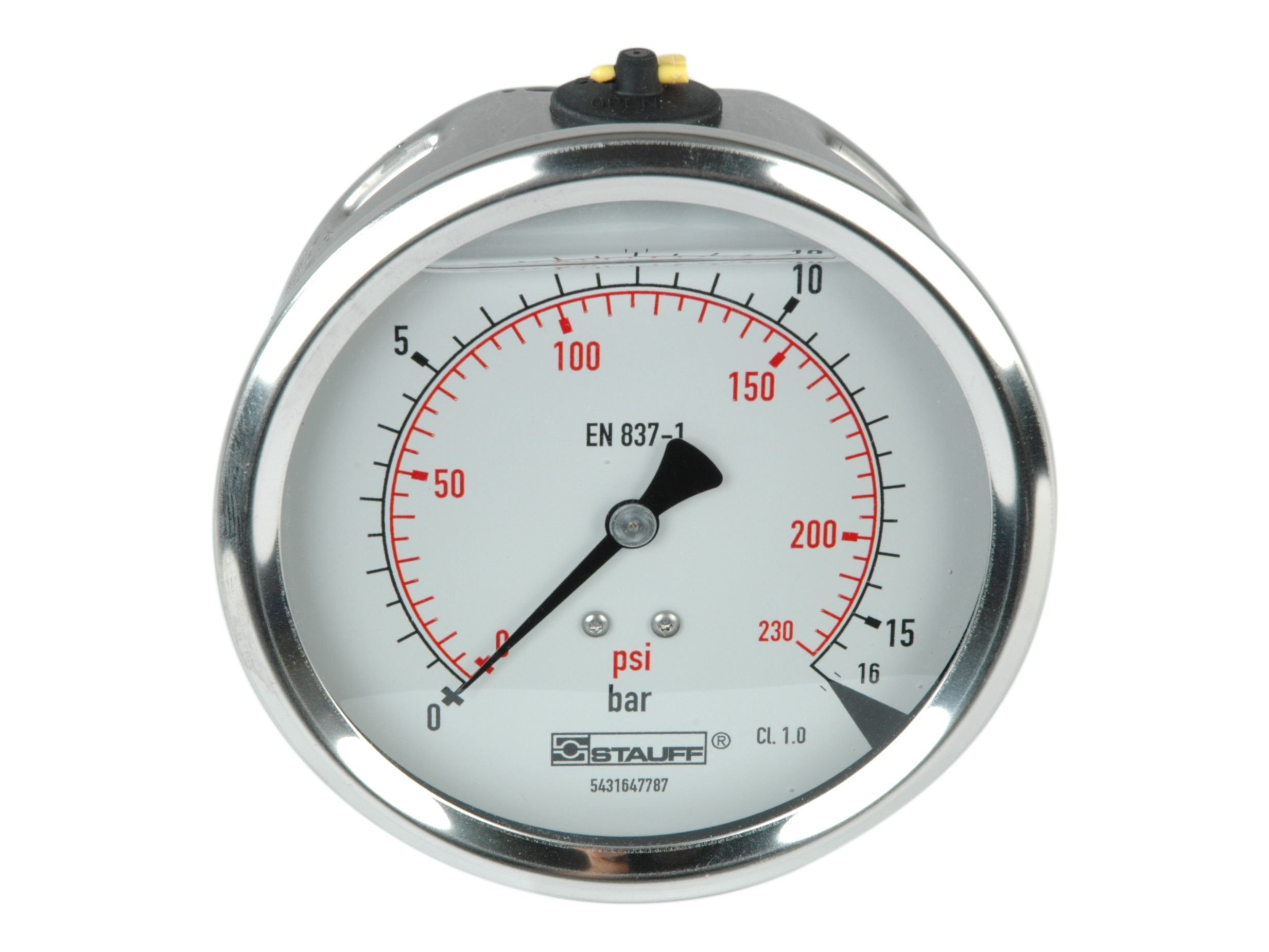

SPG100-016RB	1/2" manometer. Studs bagud. Skala 0-16 bar	0 bar	16 bar	±1,0% FS	G 1/2 BSP

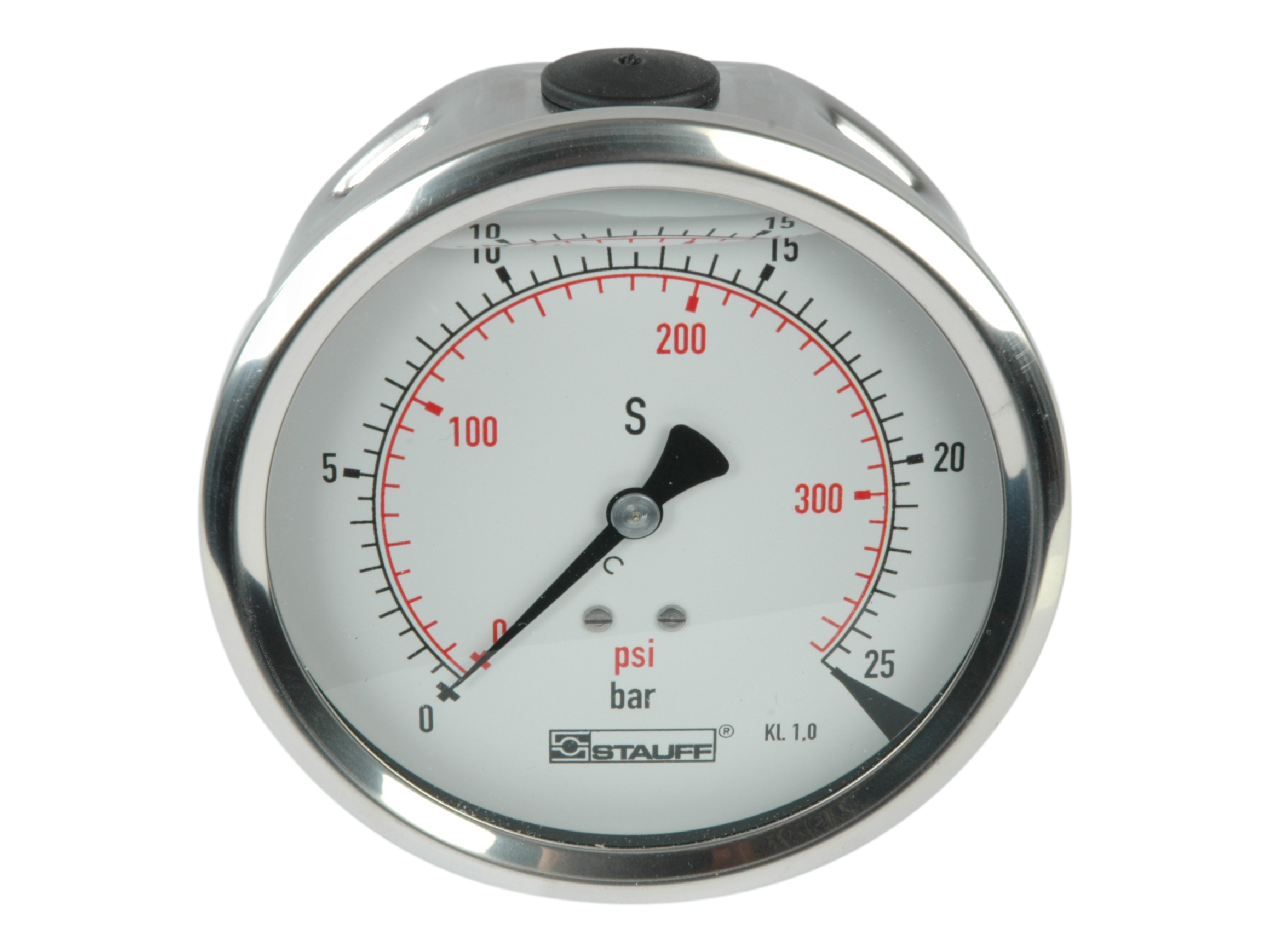

SPG100-025RB	1/2" manometer. Studs bagud. Skala 0-25 bar	0 bar	25 bar	±1,0% FS	G 1/2 BSP

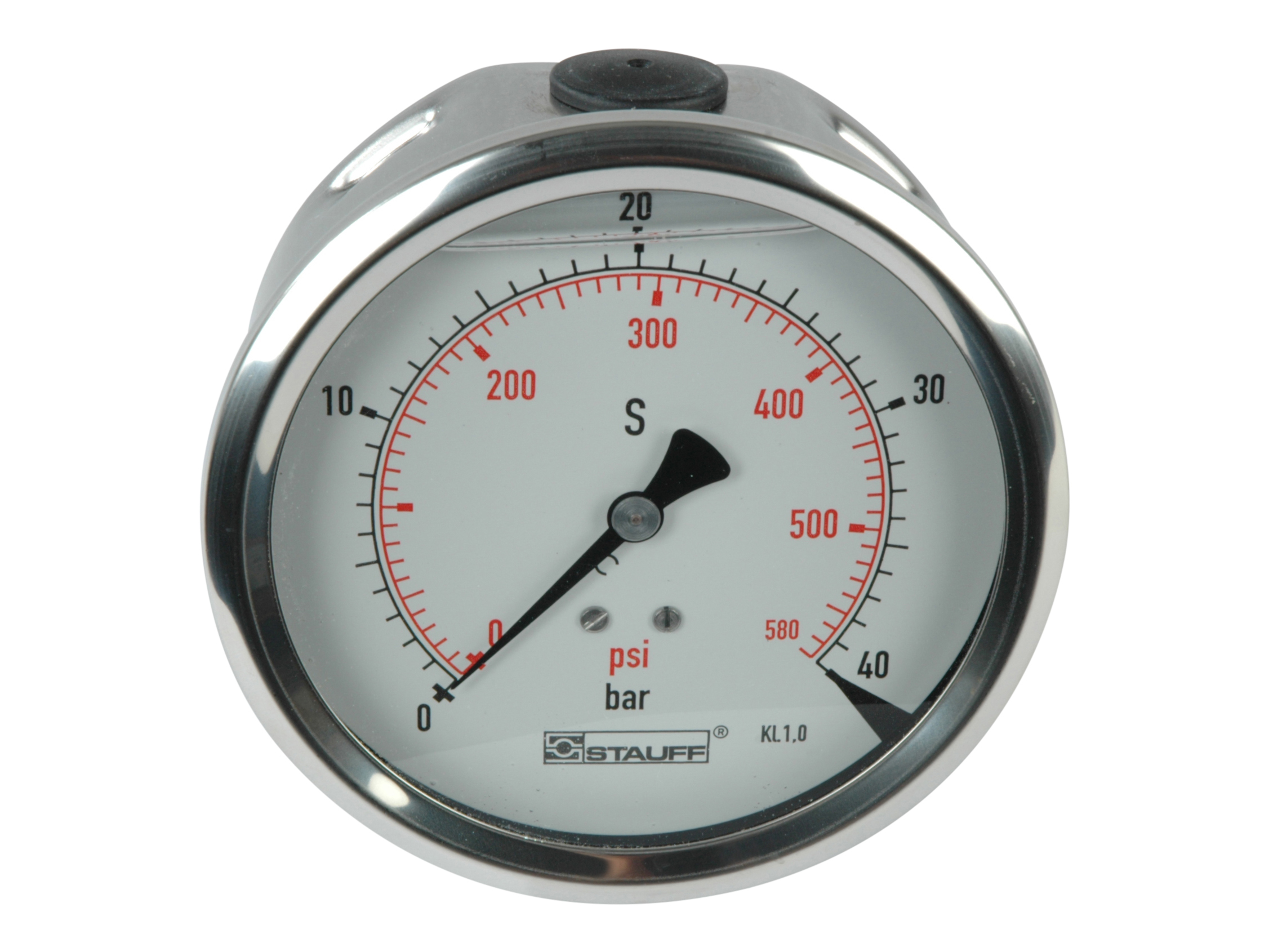

SPG100-040RB	1/2" manometer. Studs bagud. Skala 0-40 bar	0 bar	40 bar	±1,0% FS	G 1/2 BSP

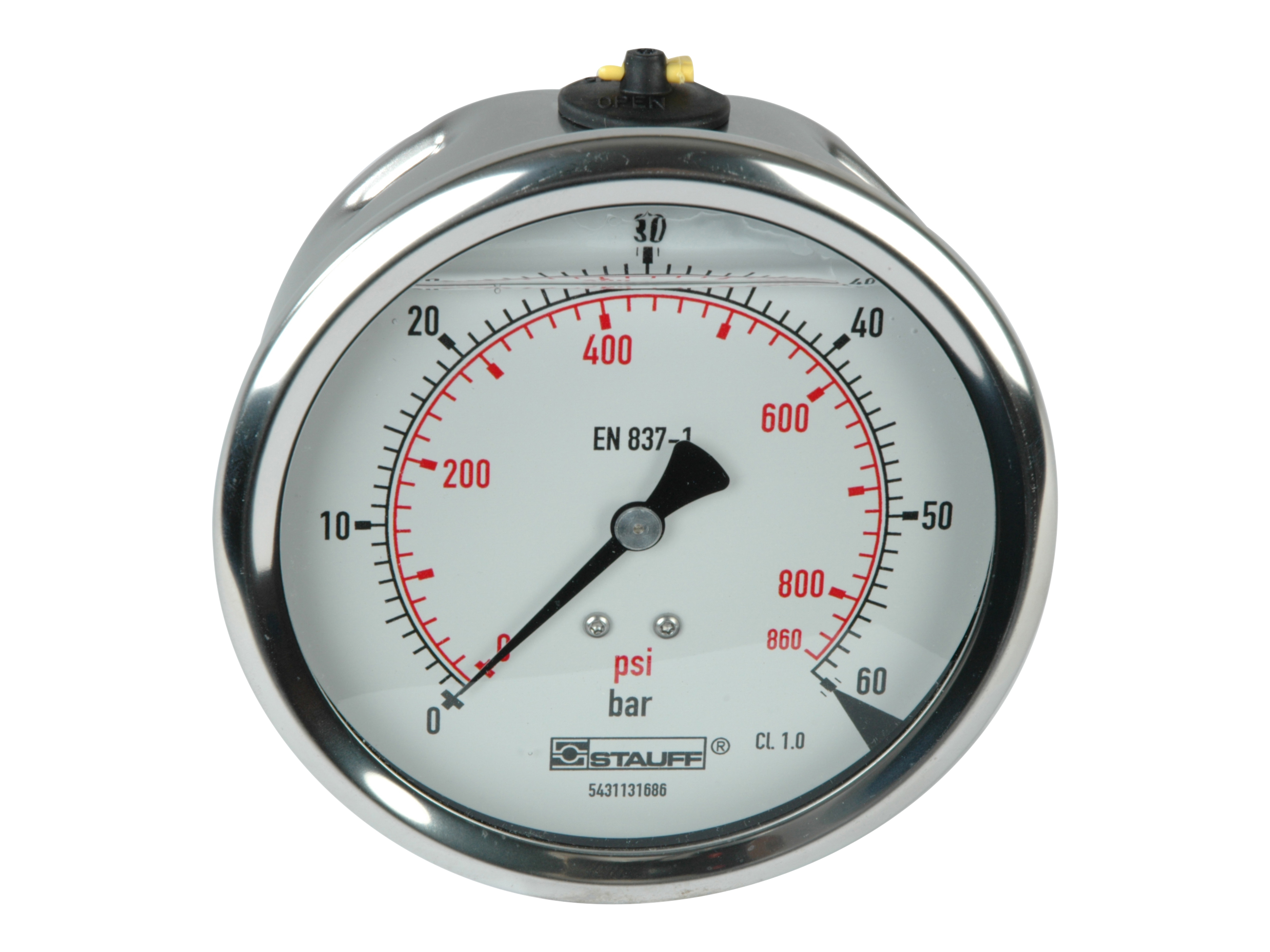

SPG100-060RB	1/2" manometer. Studs bagud. Skala 0-60 bar	0 bar	60 bar	±1,0% FS	G 1/2 BSP

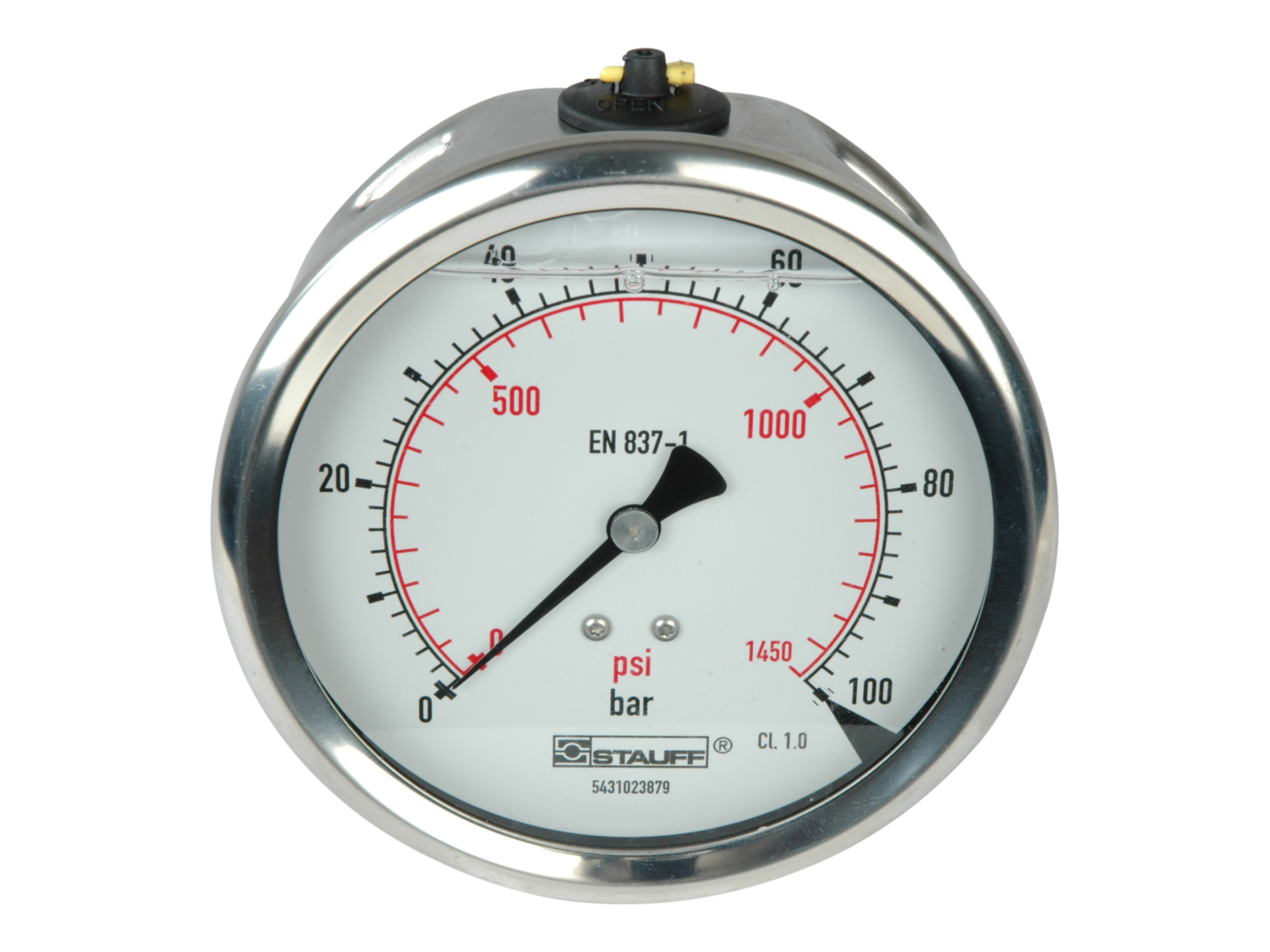

SPG100-100RB	1/2" manometer. Studs bagud. Skala 0-100 bar	0 bar	100 bar	±1,0% FS	G 1/2 BSP

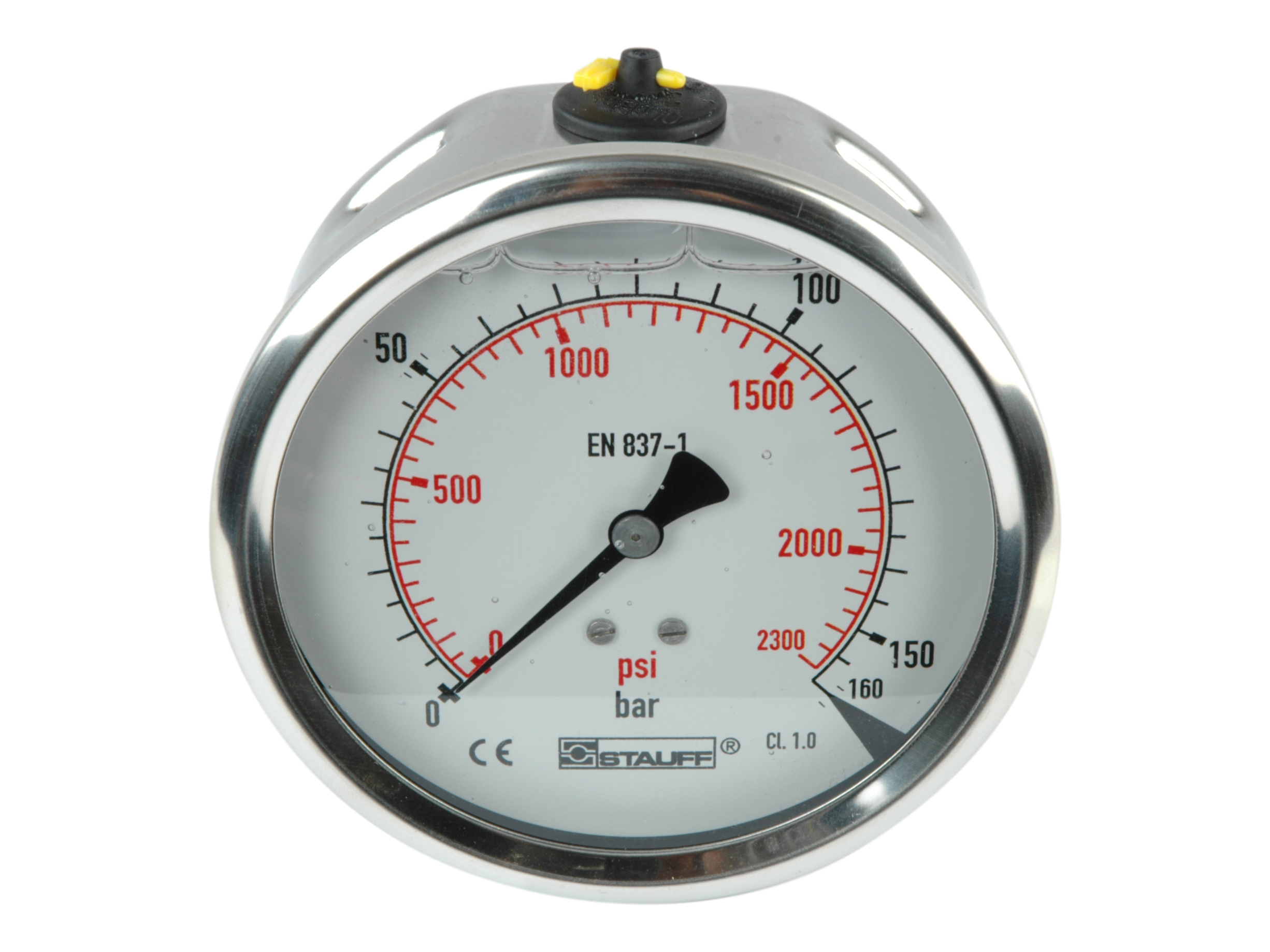

SPG100-160RB	1/2" manometer. Studs bagud. Skala 0-160 bar	0 bar	160 bar	±1,0% FS	G 1/2 BSP

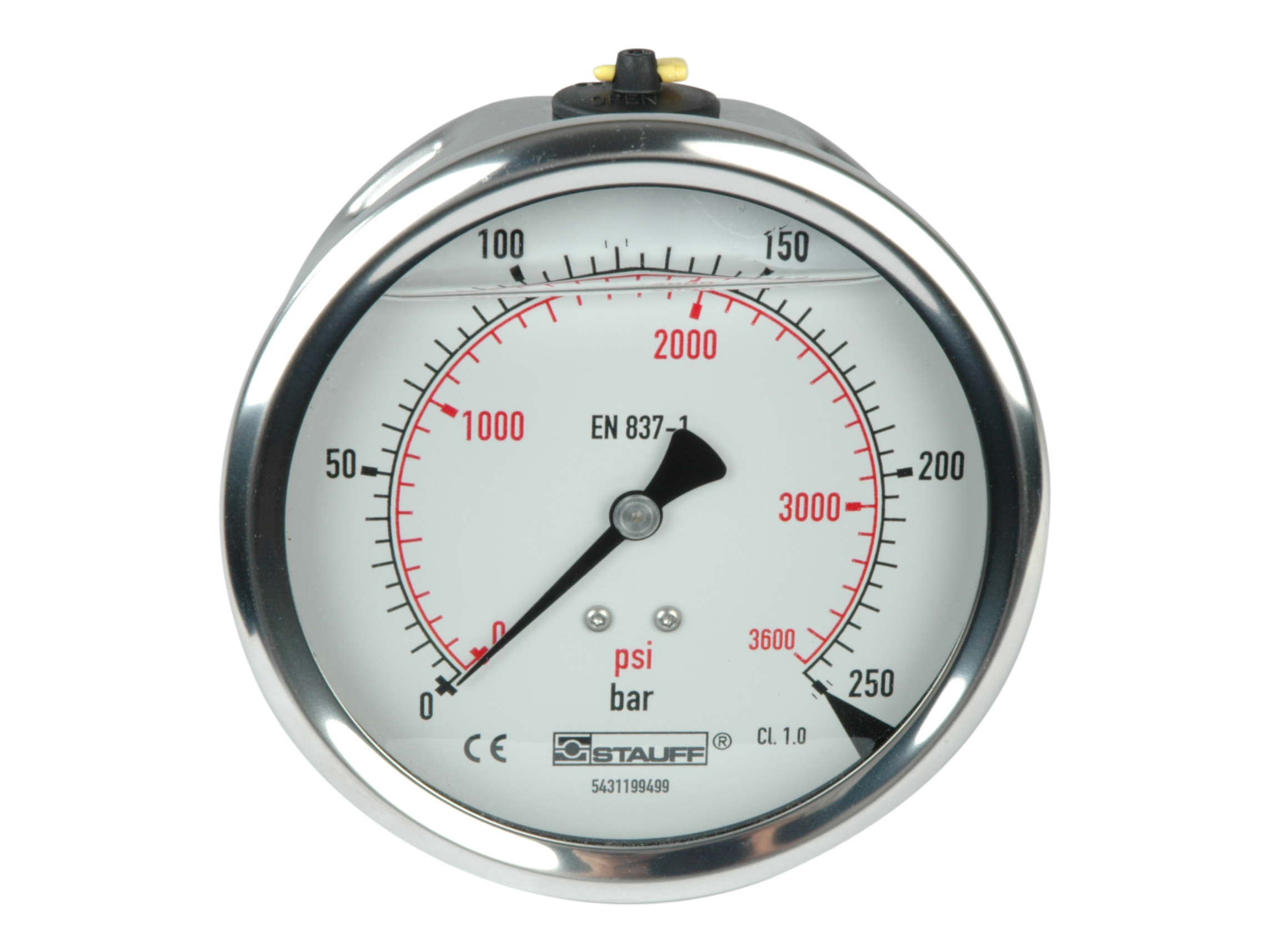

SPG100-250RB	1/2" manometer. Studs bagud. Skala 0-250 bar	0 bar	250 bar	±1,0% FS	G 1/2 BSP

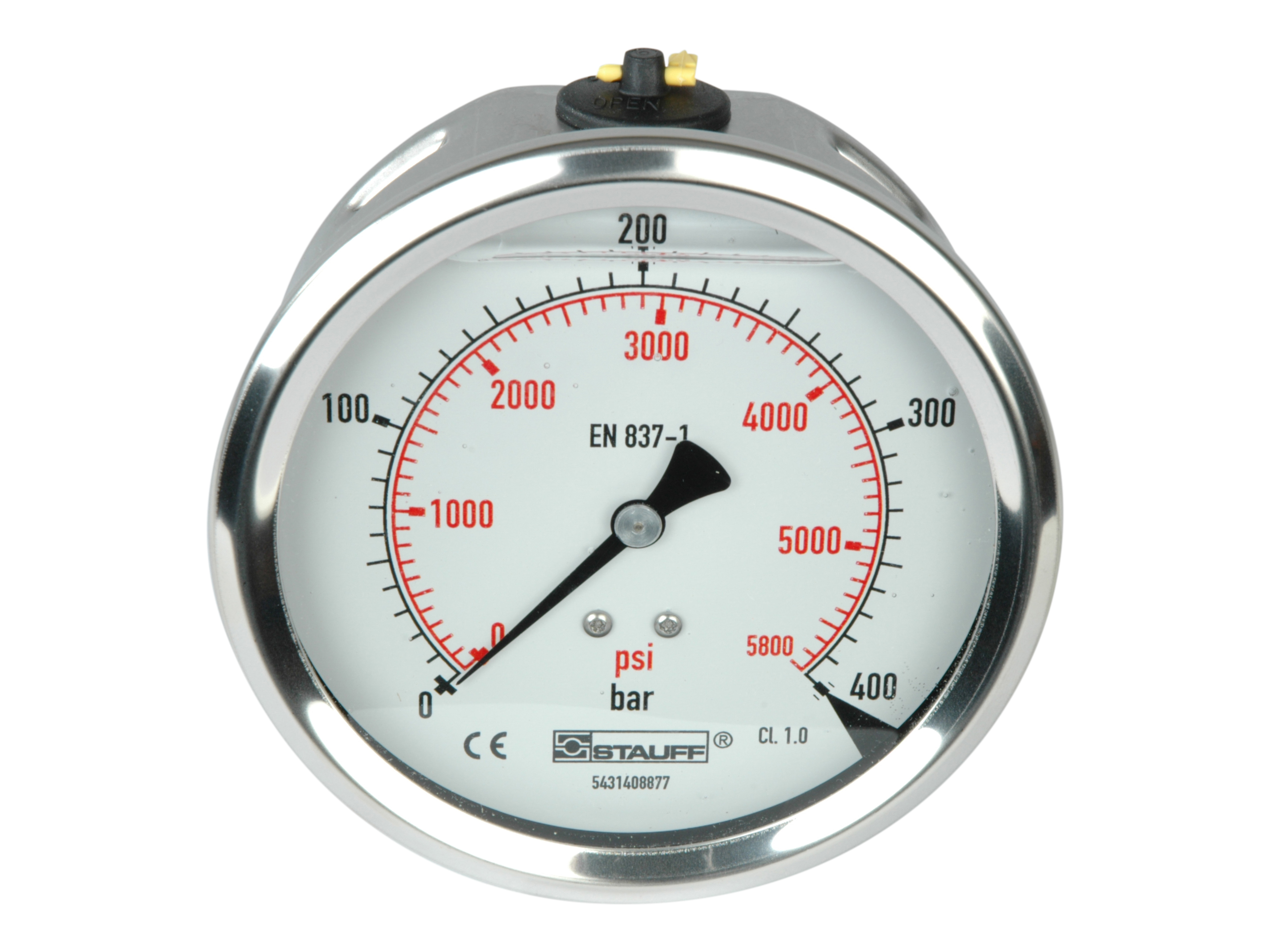

SPG100-400RB	1/2" manometer. Studs bagud. Skala 0-400 bar	0 bar	400 bar	±1,0% FS	G 1/2 BSP

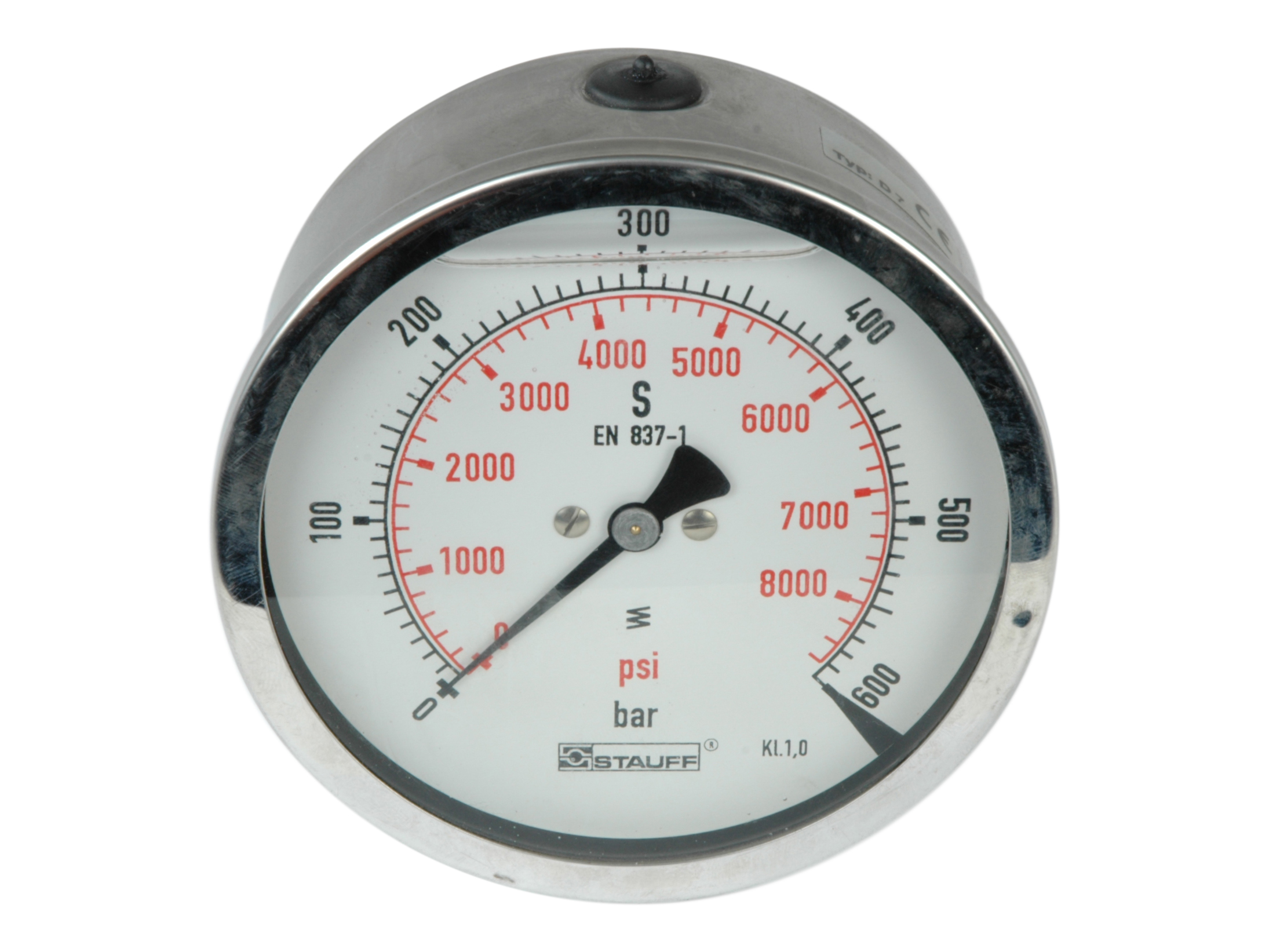

SPG100-600RB	1/2" manometer. Studs bagud. Skala 0-600 bar	0 bar	600 bar	±1,0% FS	G 1/2 BSP
SPG100-700RB	1/2" manometer. Studs bagud. Skala 0-700 bar	0 bar	700 bar	±1,0% FS	G 1/2 BSP
SPG1001000RB	1/2" manometer. Studs bagud. Skala 0-1000 bar	0 bar	1000 bar	±1,0% FS	G 1/2 BSP

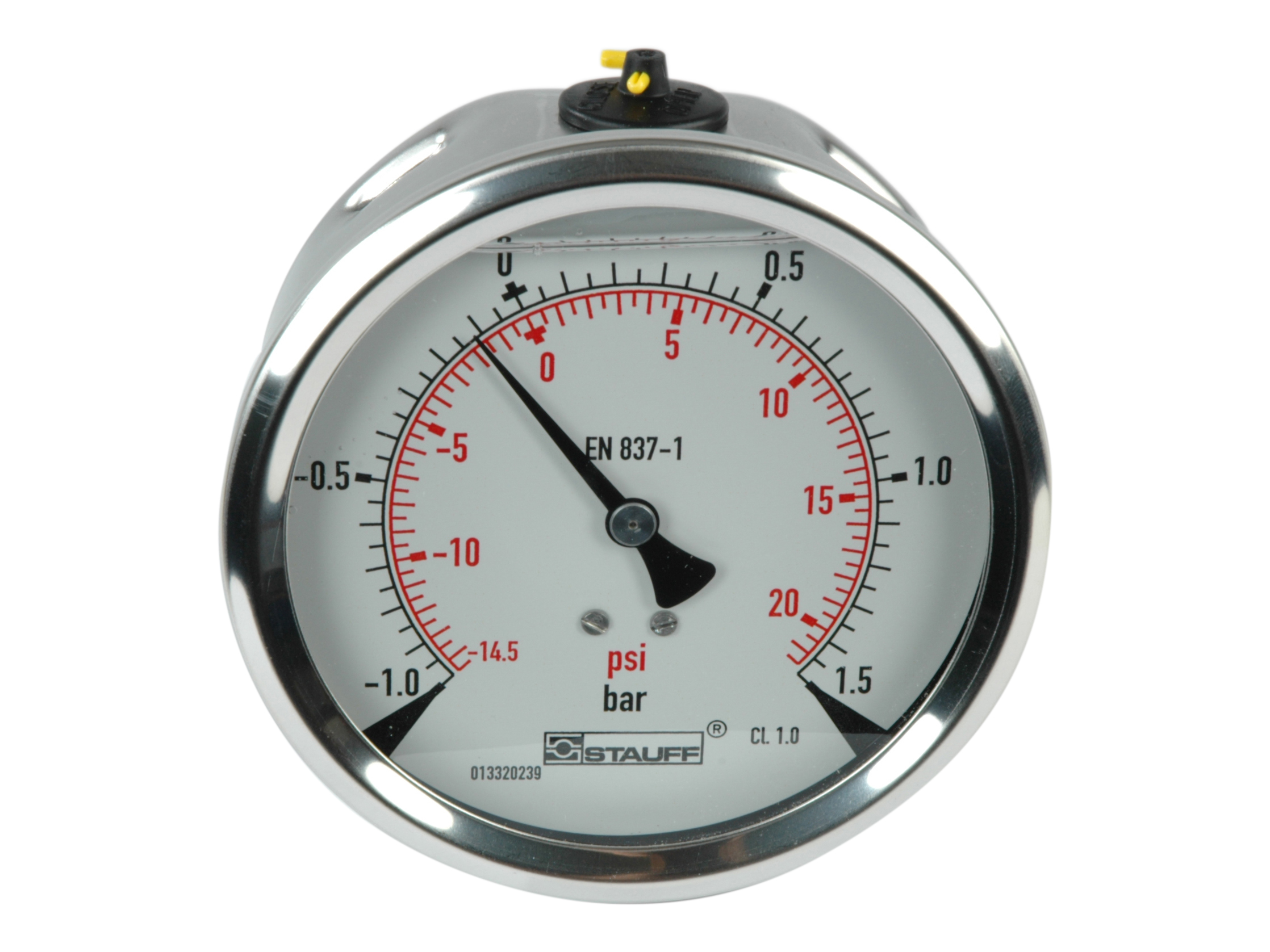

SPG100M1-1.5RB	1/2" manometer. Studs bagud. Skala -1+1.5 bar	-1 bar	1.5 bar	±1,0% FS	G 1/2 BSP

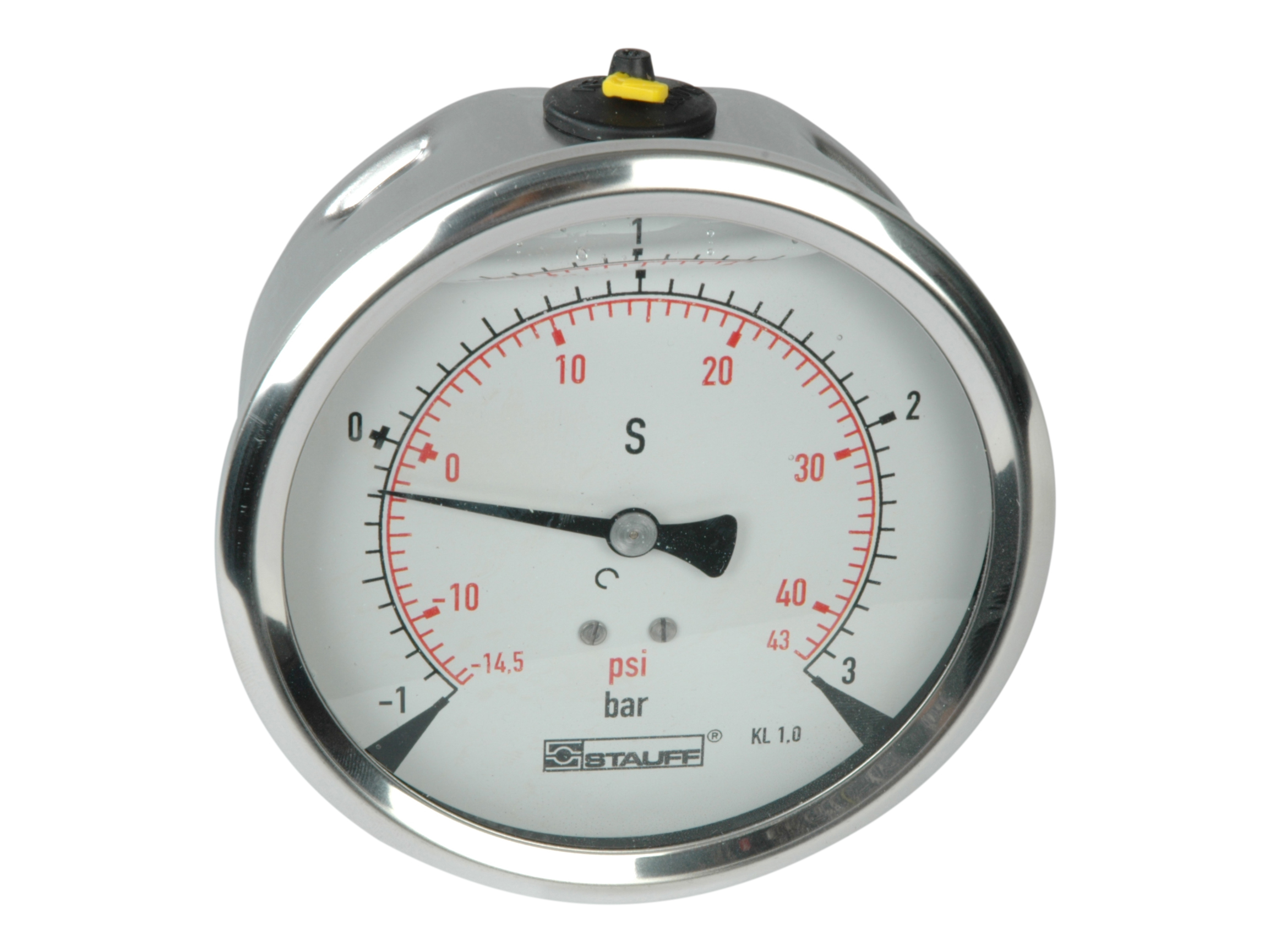

SPG100M1-3RB	1/2" manometer. Studs bagud. Skala -1+3 bar	-1 bar	3 bar	±1,0% FS	G 1/2 BSP

87 mm

Beskyttelsesklasse

IP 65

23 mm

Diameter

100

48 mm

8 mm

Gevind

G 1/2

Glastype

Akrylglas

Materiale

Rustfrit stål

Materialekvalitet

1.4301 / AISI304

Mærke navn

Stauff

Portplacering

Bagud

Standard EN

EN 837-1

Temperatur maks.

+60

Temperatur min.

-20

Trykmåling nøjagtighed

±1,0% FS

ØA

107 mm

ØD

G 1/2 BSP
