Tandhjulsmotorer Vivoil X

Tandhjulsmotorer Vivoil X

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Shaft type Number of mounting holes Displacement Mounting flange

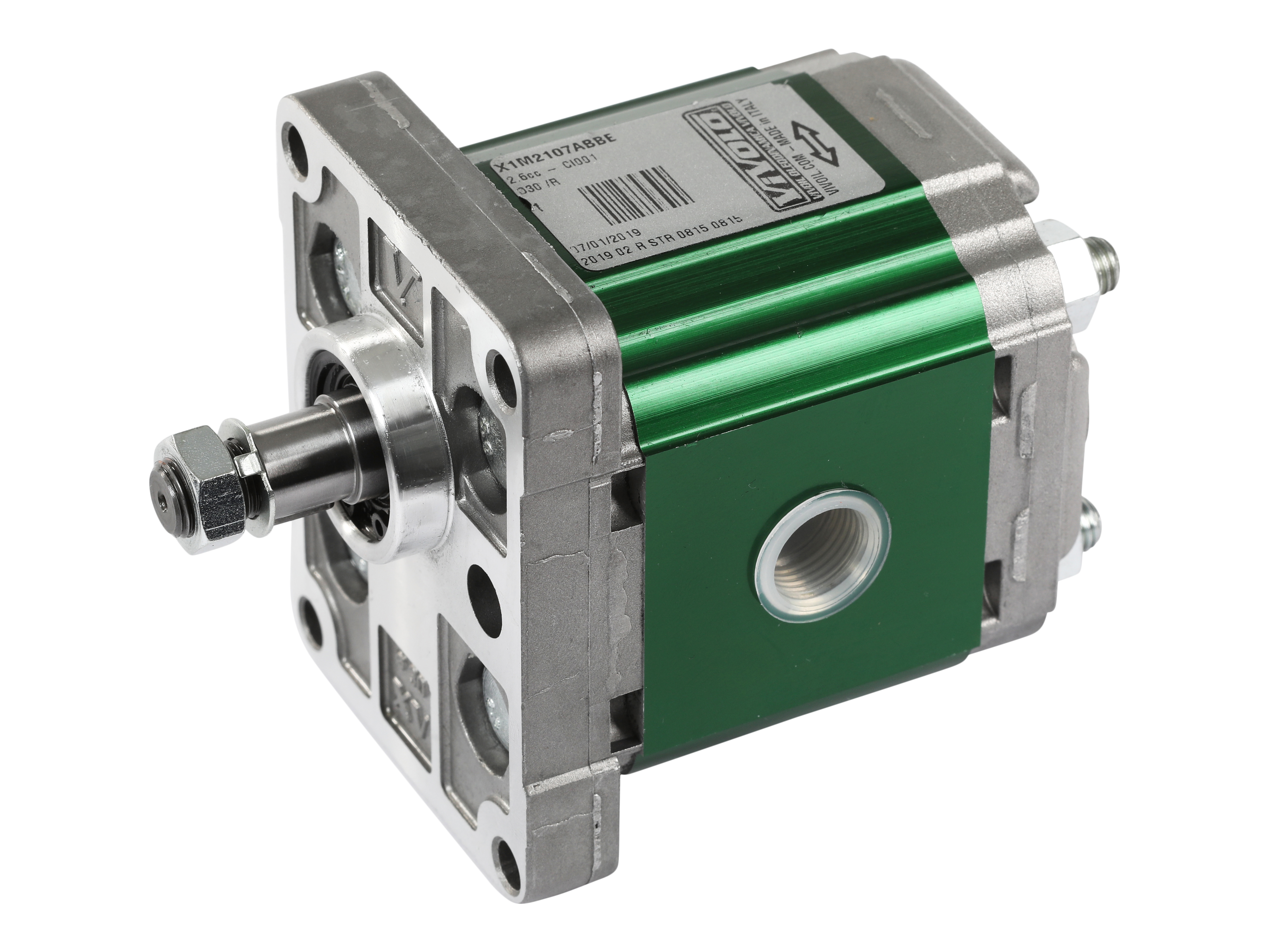

X1M2107ABBE X1M2107ABBE - Reversibel motor XV1M/2.6-ø30-CI001. Med eksternt dræn Cylindrisk 4 2.6 cm3 EU30 - 73x56
X1M2707ABBE X1M2707ABBE - Reversibel motor XV1M/4,3-ø30-CI001. Med eksternt dræn 1/4 Cylindrisk 4 4.3 cm3 EU30 - 73x56
X1M2907ABBE X1M2907ABBE - Reversibel motor XV1M/4,9-ø30-CI001. Med eksternt dræn Cylindrisk 4 4.9 cm3 EU30 - 73x56
Brand Name
Vivoil
Drainport
G 1/4
Inlet
G 3/8
Mounting flange
EU30 - 73x56
Number of mounting holes
4
Oil viscocity recommended
20 - 100
Outlet
G 3/8
Pressure continous max.
250
Recess
30,0
Rotation direction
Reversibel (CW/CCW)
Rotational speed max.
6000
Rotational speed min.
700
Sealing material
NBR
Shaft diameter
12
Shaft keyway
3,0
Shaft type
Cylindrisk
Temperature max.
+80
Temperature min.
-20
Torque input
25.8
