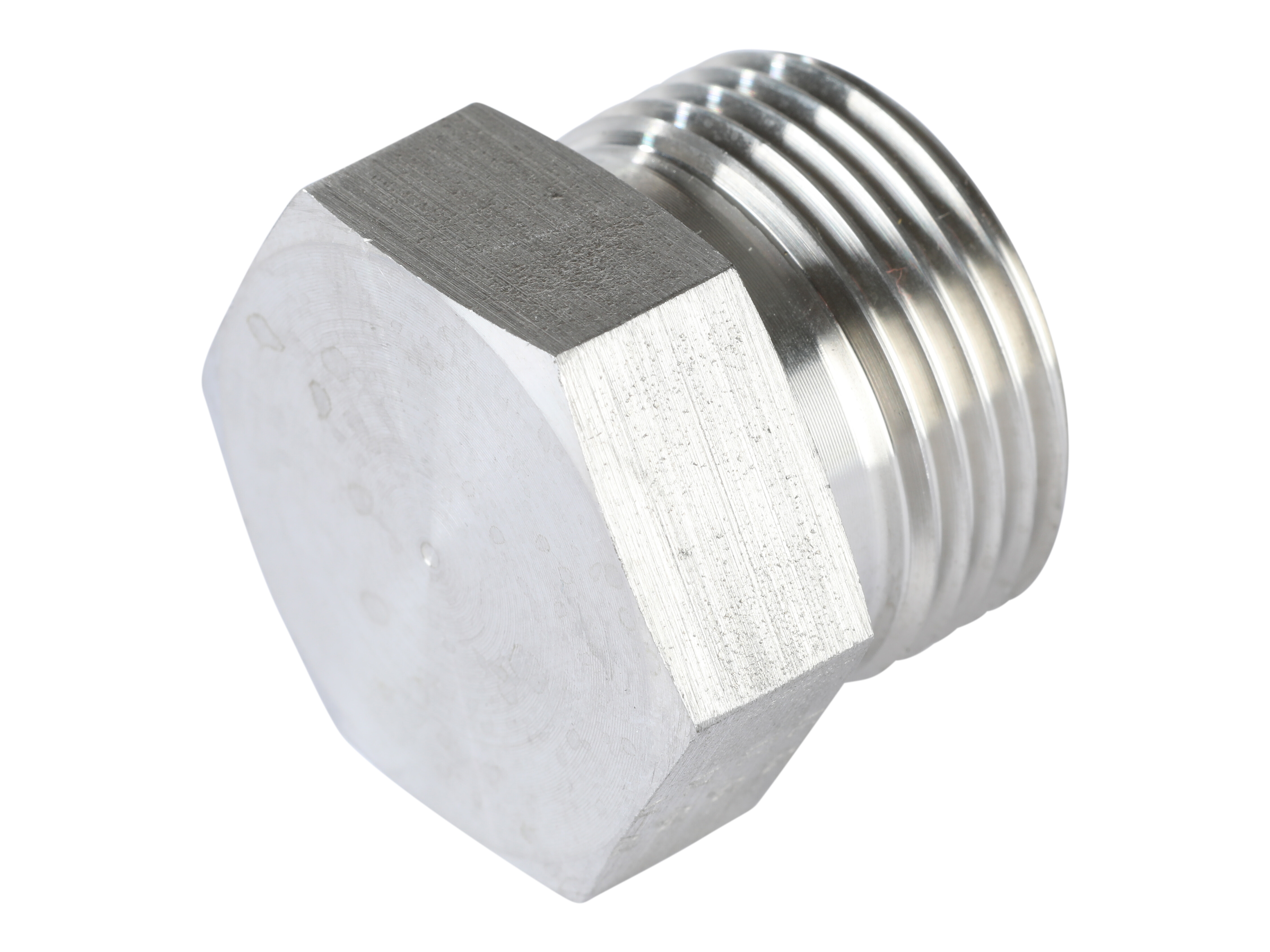

VSCHK28L/71 - Slutprop mat.1.4571 Mat. 1.4571
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
VSCHK28L/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Volz
Diameter pipe
28 mm

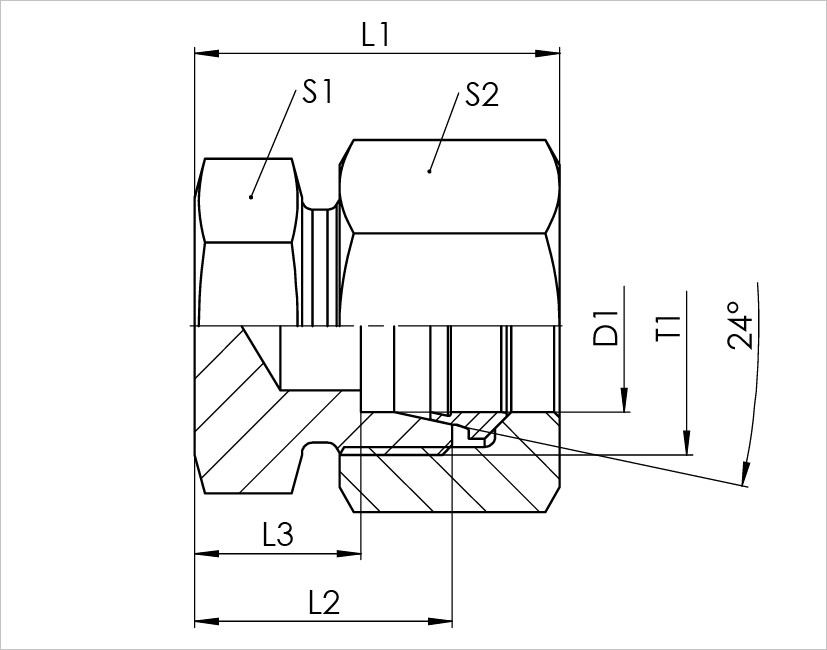

Dimension D1
28 mm
Dimension L1
33 mm
Dimension L2
22 mm
Dimension L3
14.5 mm
Dimension S1
41 mm
Dimension S2
41 mm
Material
Rustfrit stål
Material quality
1.4571 / AISI316Ti
Model code
XEVSV 28 L
Pressure max.
250 bar
Safety factor
4
Series
L
Temperature max.
+400 °C
Temperature min.
-60 °C
Thread outer metric
M36x2
Pakke str.
0 pcs
Stregkode
5704295395456
Brutto vægt
0,03 Kg
Netto vægt
0,03 Kg
Oprindelsesland
DEU
Intrastat varekode
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
