VSCHK10S/71 - Slutprop mat.1.4571 Mat. 1.4571
Temperatur/trykreduktion:
-55°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
VSCHK10S/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter rør
10 mm

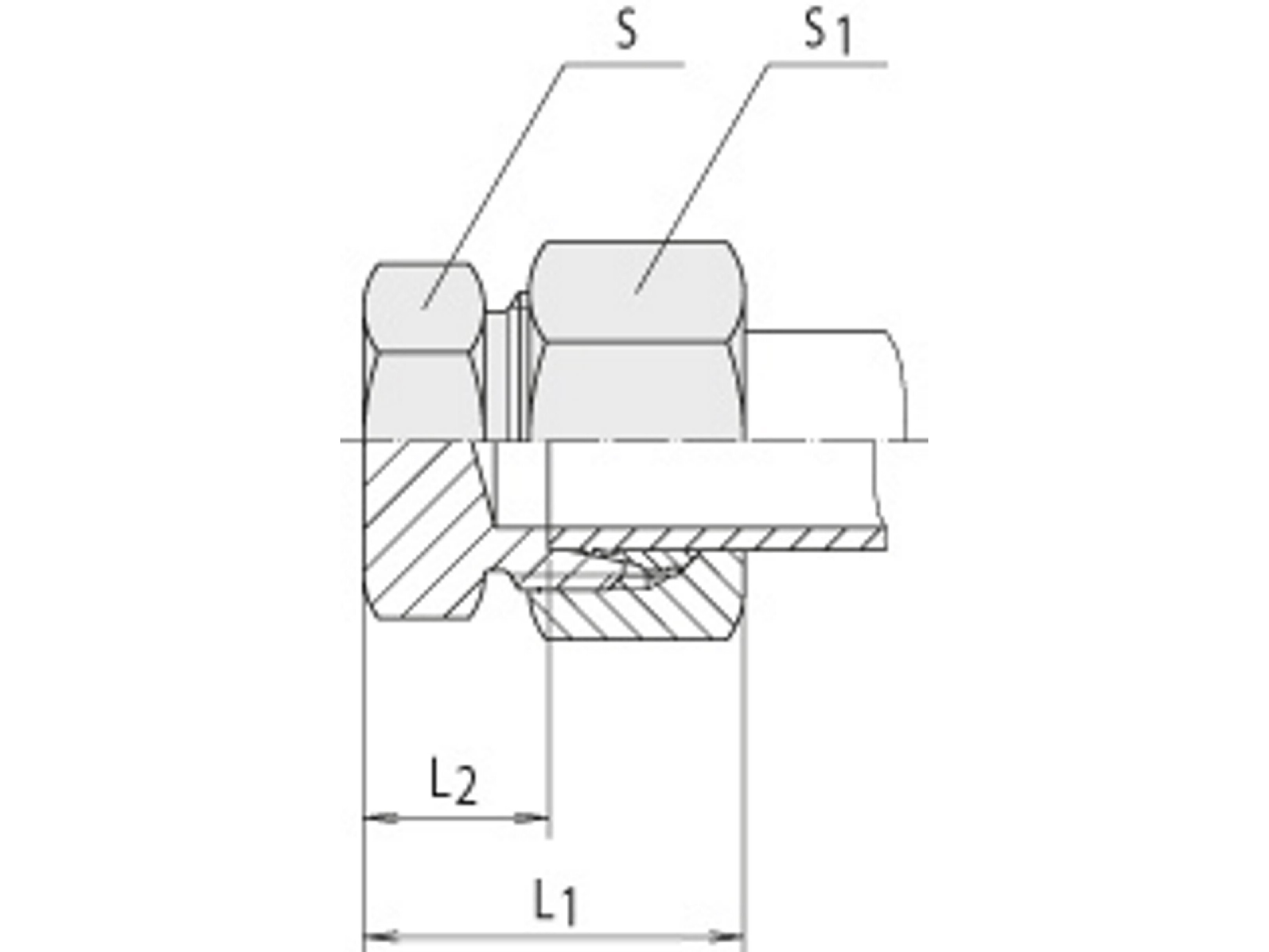

Dimension D1
10 mm
Dimension L1
29 mm
Dimension L2
12.5 mm
Dimension S1
19 mm
Dimension S2
22 mm
Gevind udvendig metrisk
M18x1,5
Materiale
Rustfrit stål
Materialekvalitet
1.4571 / AISI316Ti
Model kode
XEVSV 10 S
Mærke navn
Volz
Serie
S
Sikkerhedsfaktor
4
Temperatur maks.
+400 °C
Temperatur min.
-60 °C
Tryk maks.
800 bar
Package size
0 pcs
Barcode
5704295395487
Gross weight
0,03 Kg
Net weight
0,03 Kg
Country of origin
DEU
Intrastat code
73072910
Temperatur/trykreduktion:
-55°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
