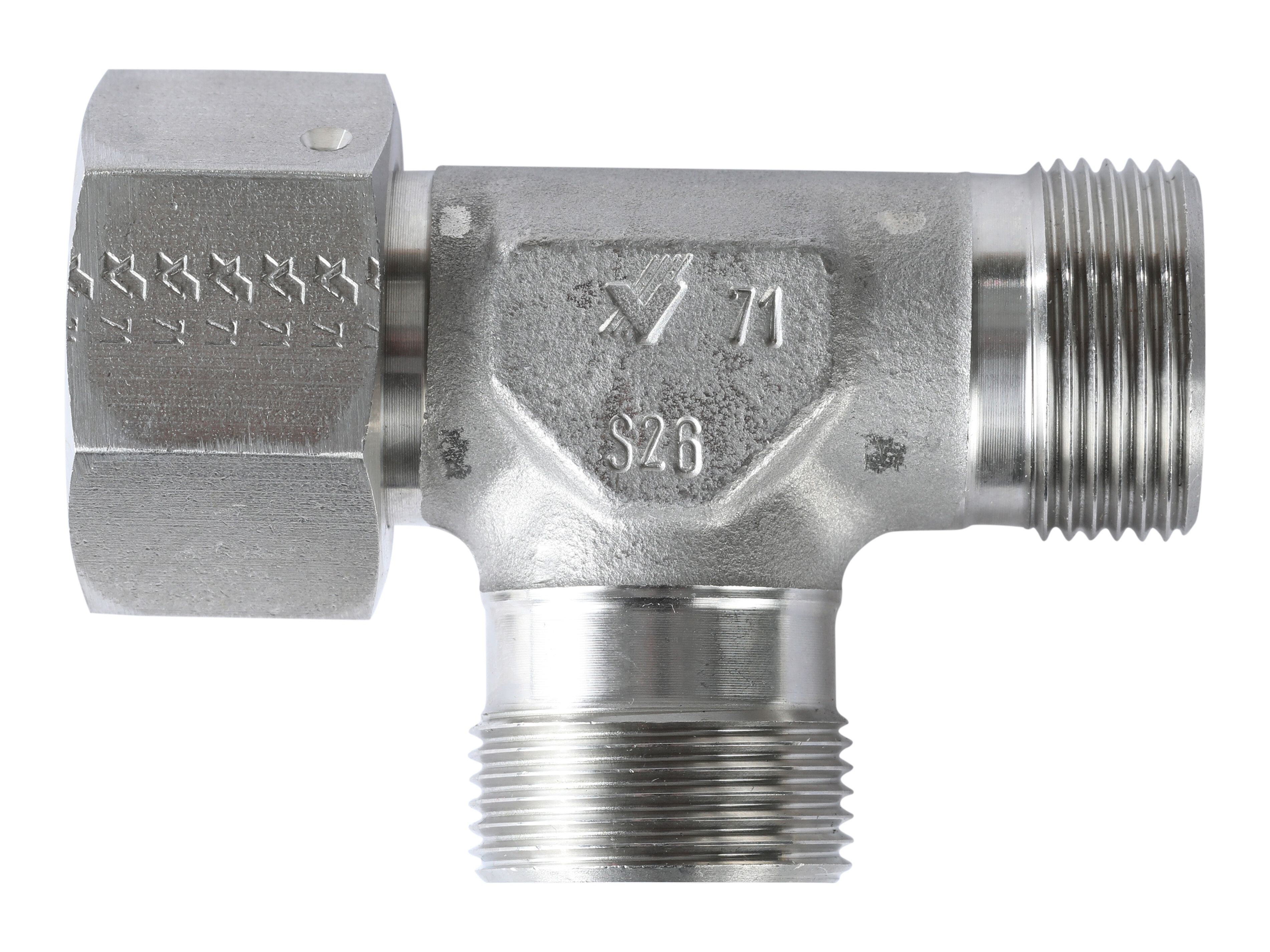

VD20SDKOX/71 - L forskruning stilbar - ø20S - o-ringstætning - AISI 316Ti
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
VD20SDKOX/71
Package size:
0 pcs
Min. order quantity is:
1 pcs

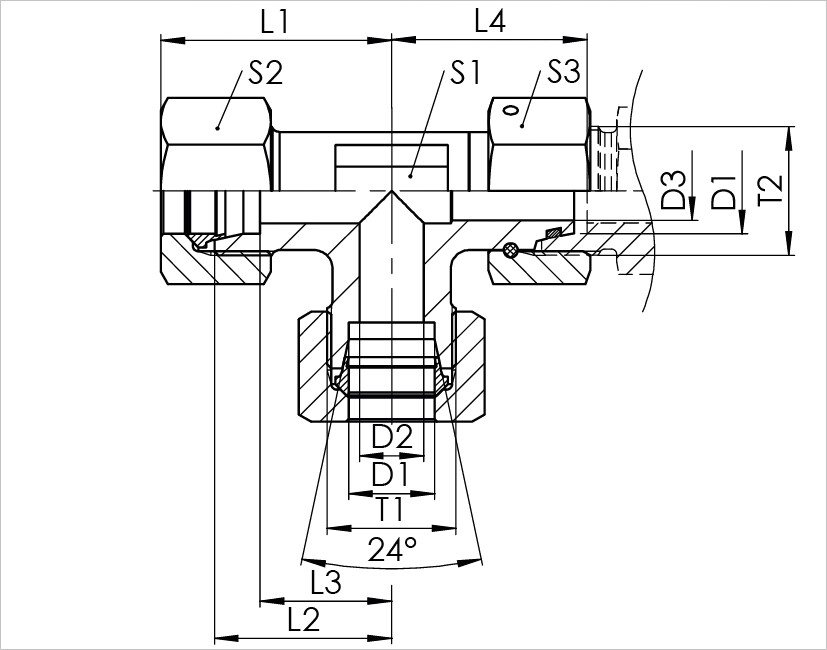

D3
16 mm
Diameter rør
20 mm
Gevind T
M30x2
Gevind T1
M30x2
Gevind T2
M30x2 mm
Gevind indvendig metrisk
M30x2 MM
Gevind udvendig metrisk
M30x2
L1
49 mm
L2
37 mm
L3
26,5 mm
L4
44,5 mm
Materiale
Syrefast Stål
Materialekvalitet
1.4571 / AISI316Ti
Model kode
XELVD 20 S
Mærke navn
Volz
Pakningsmateriale
FKM/FPM (Viton®)
REACH compliant
Ja
RoHs compliant
Ja
S1
27 mm
S2
36 mm
S3
36 mm
Serie
S
Sikkerhedsfaktor
4
Temperatur maks.
+200 °C
Temperatur min.
-25 °C
Tryk maks.
420 bar
Type
Smedet
d1
20 mm
d2
14 mm
Package size
0 pcs
Barcode
5704295771694
Gross weight
0,37 Kg
Net weight
0,37 Kg
Country of origin
DEU
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
