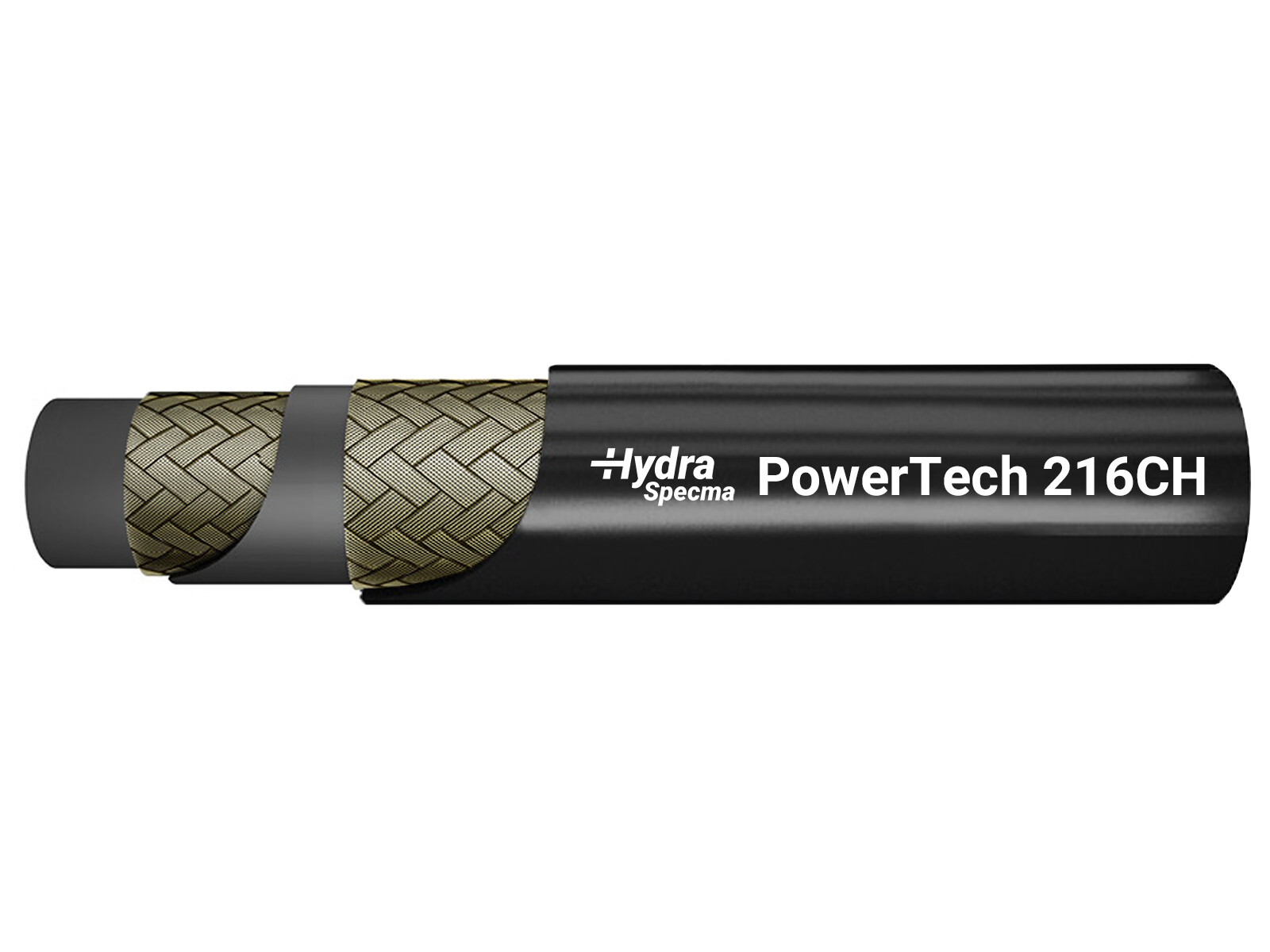

1" Hydraulikslange SPT-216CH - 2SC WP 210 bar

Hydrauliktryk-slange til overførsel af oliebaserede medier i hydrauliske systemer. 2SC-opbygningen med to lag højtræk ståltrådsflet er beregnet til trykledninger, hvor en kompakt og fleksibel slange er nødvendig.

Slangen har inderslange i NBR (nitril) og yderkappe i syntetisk gummi. Arbejdstrykket er 210 bar, og minimalt sprængtryk er 840 bar. Bøjningsradius er 160 mm, og slangen er flammebestandig. Egnede medier omfatter diesel, fedt og olie.

Typiske anvendelser

Hydrauliske trykledninger til oliebaserede væsker
Slangeføring, hvor en defineret bøjningsradius er vigtig

Partnumber:

SPT216CH

Package size:

0 m

Min. order quantity is:

1 m

Specifications
Dimensions and shipping

Anvendelsesområde

Diesel, Olie, Smørefedt

Bestillingsenhed

Løsslange

Bøjningsradius

160 mm

Diameter indvendig

25.5 mm

Diameter udvendig

35.8 mm

Flammeresistent

Forstærkning

2 lag ståltrådsflet

Inderrør

NBR (Nitril)

Mærke navn

Hydraspecma

REACH compliant

RoHs compliant

Slangegodkendelser

ABS, BV, CCS, DNV, KR, LLOYD, MED, NKK, RINA

Slangestørrelse

1 "

Slangetype

2SC

Standard EN

EN 857 2SC

Standard ISO

ISO 11237 2SC

Temperatur intermitterende maks.

+135 °C

Temperatur maks.

+120 °C

Temperatur min.

-40 °C

Tryk maks.

210 bar

Tryk sprængning min.

840 bar

Yderrør

Syntetisk gummi

Package size

0 m

Barcode

5704334751069

Gross weight

0,28 Kg

Net weight

0,28 Kg

Country of origin

ITA

Intrastat code

40092100

Product information
Go to crimp dimensions

Typiske anvendelser

Hydrauliske trykledninger til oliebaserede væsker
Slangeføring, hvor en defineret bøjningsradius er vigtig

Crimp dimensions for SPT216CH

Hose type	Diamter - inch	Hose coupling type	Ferrule	Crimp dimension - mm	Skiving - int.	Skiving - ext.	Operating pressure
SPT216CH	1	P16	P1620	38.5 mm ±0.1	No	No	210
SPT216CH		P16	P1630	39.6 mm ±0.1	No	No

The crimp measures above are indicative. HydraSpecma cannot be held responsible for any errors and omissions.
