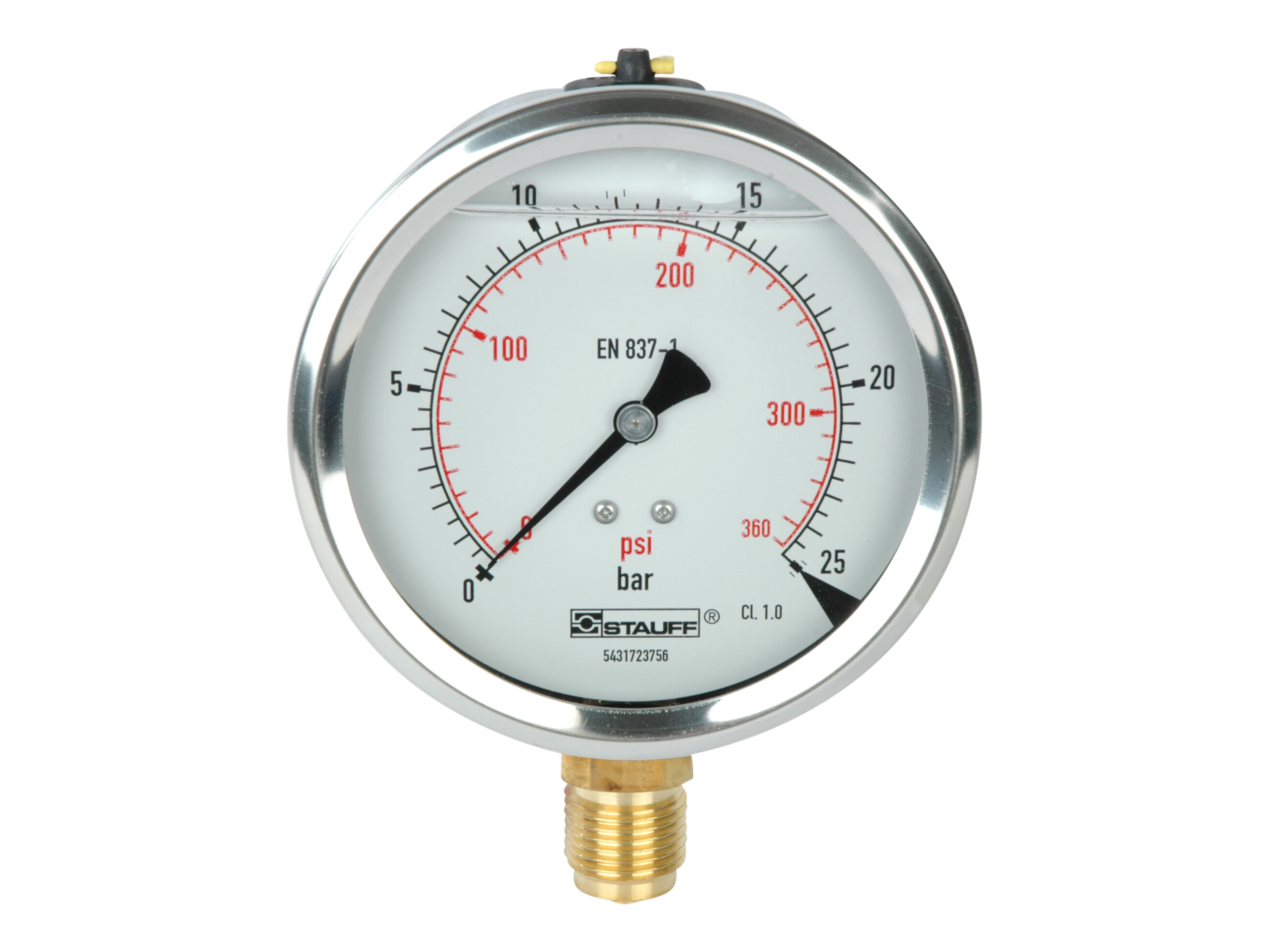

1/2" manometer. Studs ned. Skala 0-25 bar

Anvendelsesområde: Trykmåling i forbindelse med hydraulikolie og luftformige medier der er ikke-aggressive mod kobberlegeringer.

Glycerin dæmpet.
Standard med dobbeltskala med inddeling i bar og PSI.
U-bolt eller flange monteringssæt som tilbehør.

!!OBS: Montagehul diameter: ø67 +/- 0,3 mm

Varenummer:

SPG100-025SB

Pakke str.:

0 stk

Min. bestillingsenhed er:

1 stk

Specifications
Dimensions and shipping

87 mm

Beskyttelsesklasse

IP 65

23 mm

Diameter

100 mm

48 mm

8 mm

Gevind

G 1/2 BSP

Glastype

Akrylglas

Materiale

Rustfrit stål

Materialekvalitet

1.4301 / AISI304

Model kode

SPG-100-00025-01-S-B08

Mærke navn

Stauff

Portplacering

Side

Standard EN

EN 837-1

Trykindstilling maks.

25 bar

Trykindstilling min.

0 bar

Trykmåling nøjagtighed

±1,0% FS

ØA

107 mm

ØD

G 1/2 BSP

Package size

0 stk

Barcode

5704295678351

Gross weight

0,83 Kg

Net weight

0,83 Kg

Country of origin

DEU

Intrastat code

90262040

Product information
Measure sketch

Anvendelsesområde: Trykmåling i forbindelse med hydraulikolie og luftformige medier der er ikke-aggressive mod kobberlegeringer.

Glycerin dæmpet.
Standard med dobbeltskala med inddeling i bar og PSI.
U-bolt eller flange monteringssæt som tilbehør.

!!OBS: Montagehul diameter: ø67 +/- 0,3 mm
