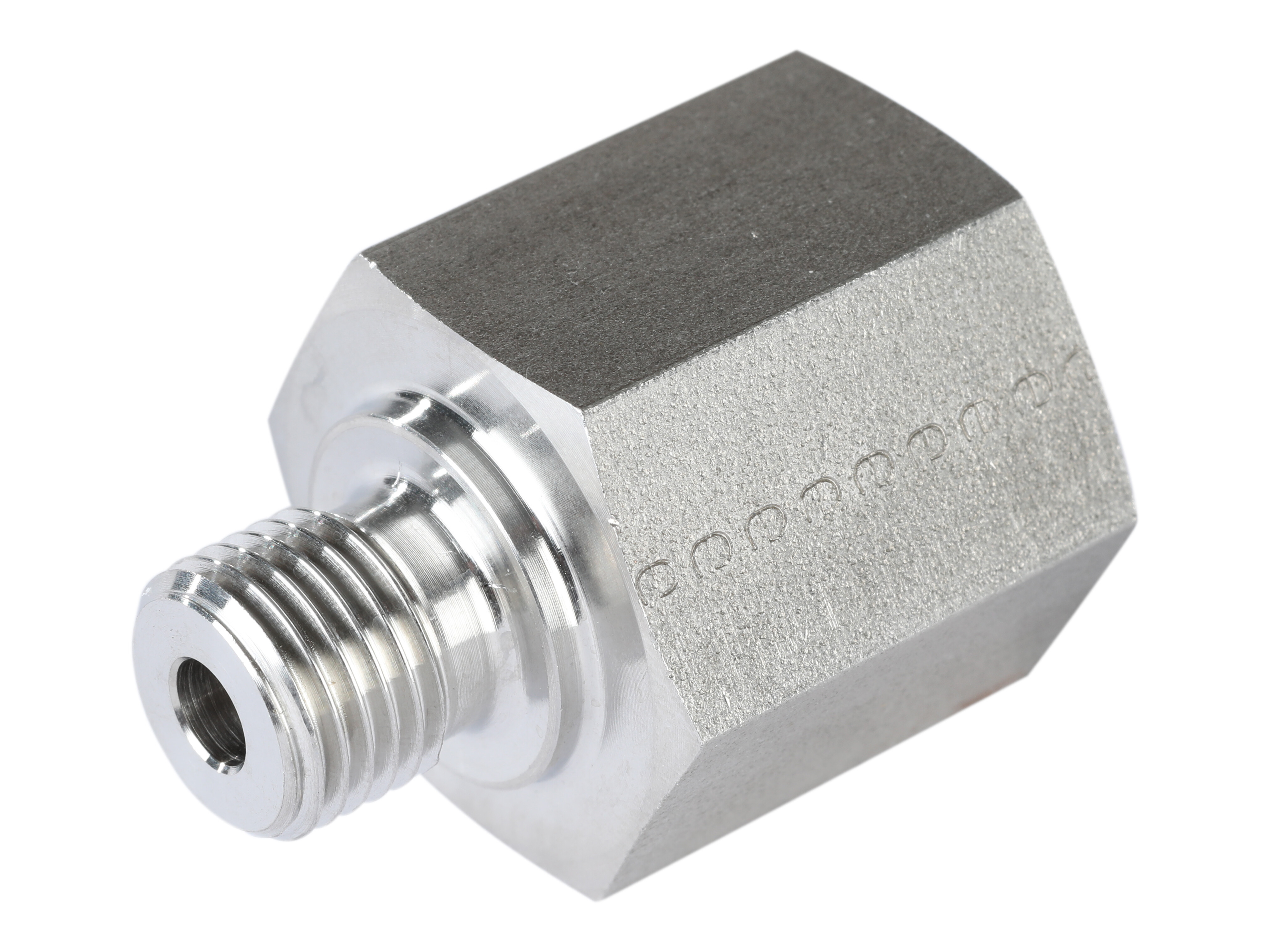

Reduktion - 1/4" BSP x 1/2" BSP indv - AISI 316Ti
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
RI1/4-1/2/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Dimension D2
5 mm
Dimension L1
40 mm
Dimension L2
20 mm
Dimension S1
30 mm
Dimension i
12 mm
Gänga inv.
G 1/2 BSP
Gänga utv.
G 1/4 BSP
Materialkvalitet
1.4571 / AISI316Ti
Modell kod
RI 1/4 x 1/2
Märke namn
Volz
Temperatur max.
+400 °C
Temperatur min.
-60 °C
Thread T1
G 1/4 BSP
Thread T2
G 1/2 BSP
Tillverkningsmaterial
Rustfrit stål
Tryck max.
630 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704295301815
Gross weight
0,86 Kg
Net weight
0,86 Kg
Country of origin
DEU
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
