Indstik 1.1/4" - 1.1/2" BSP oml. 90°

Lang model (bøjning). Til påskruning på BSP-nippel med 60° indvendig konus.

Tilslutning: Indvendigt BSP-gevind i omløber med 60° udadvendt konus.

Pakning/tætningsflade: Metal mod metal (konus).

Partnumber:

P2024NU90

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Dimension C

81 mm

Dimension E

55 mm

Dimension H

55 mm

Dimension T

G 1.1/2 BSP

Gevind

G 1.1/2 BSP

Materiale

Stål

Model kode

0150S-20-24

Mærke navn

I.M.M Hydraulics

Overfladebehandling

El-forzinket / hvidkromatiseret

Slangekoblingstype

Til løs kappe

Slangestørrelse

1.1/4 "

Tilspændingsmoment

206 Nm

Vinkel

90 °

Package size

0 pcs

Barcode

5704295696034

Gross weight

0,85 Kg

Net weight

0,85 Kg

Country of origin

ITA

Intrastat code

73269098

Product information

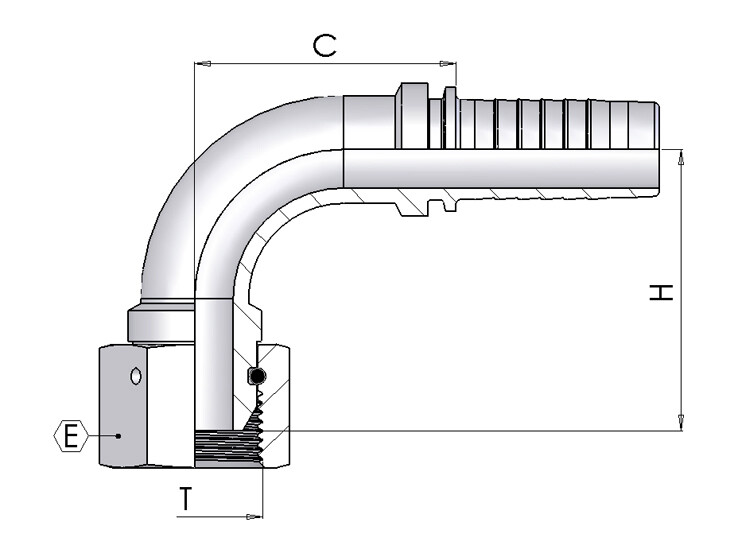

Measure sketch

Lang model (bøjning). Til påskruning på BSP-nippel med 60° indvendig konus.

Tilslutning: Indvendigt BSP-gevind i omløber med 60° udadvendt konus.

Pakning/tætningsflade: Metal mod metal (konus).
