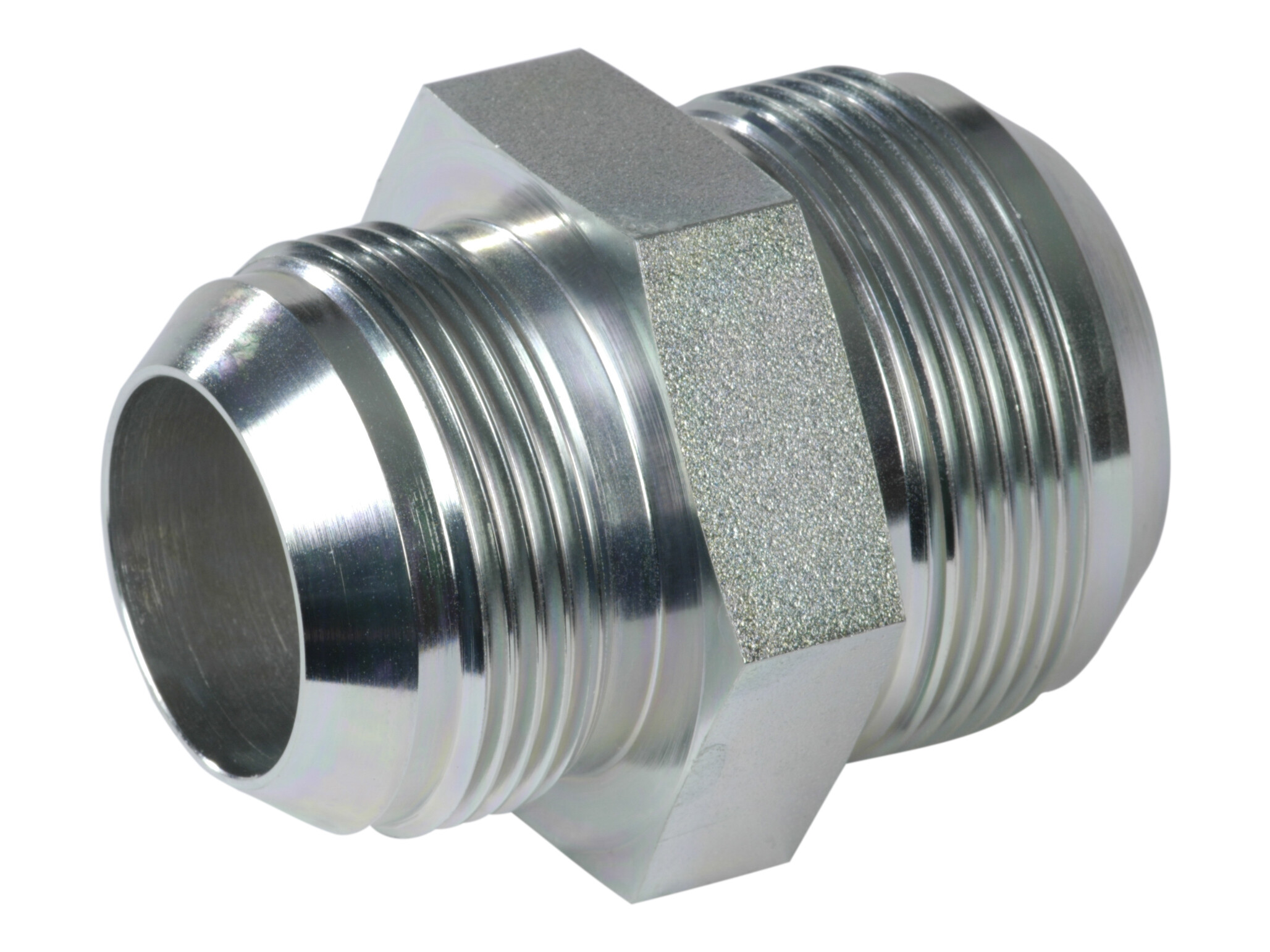

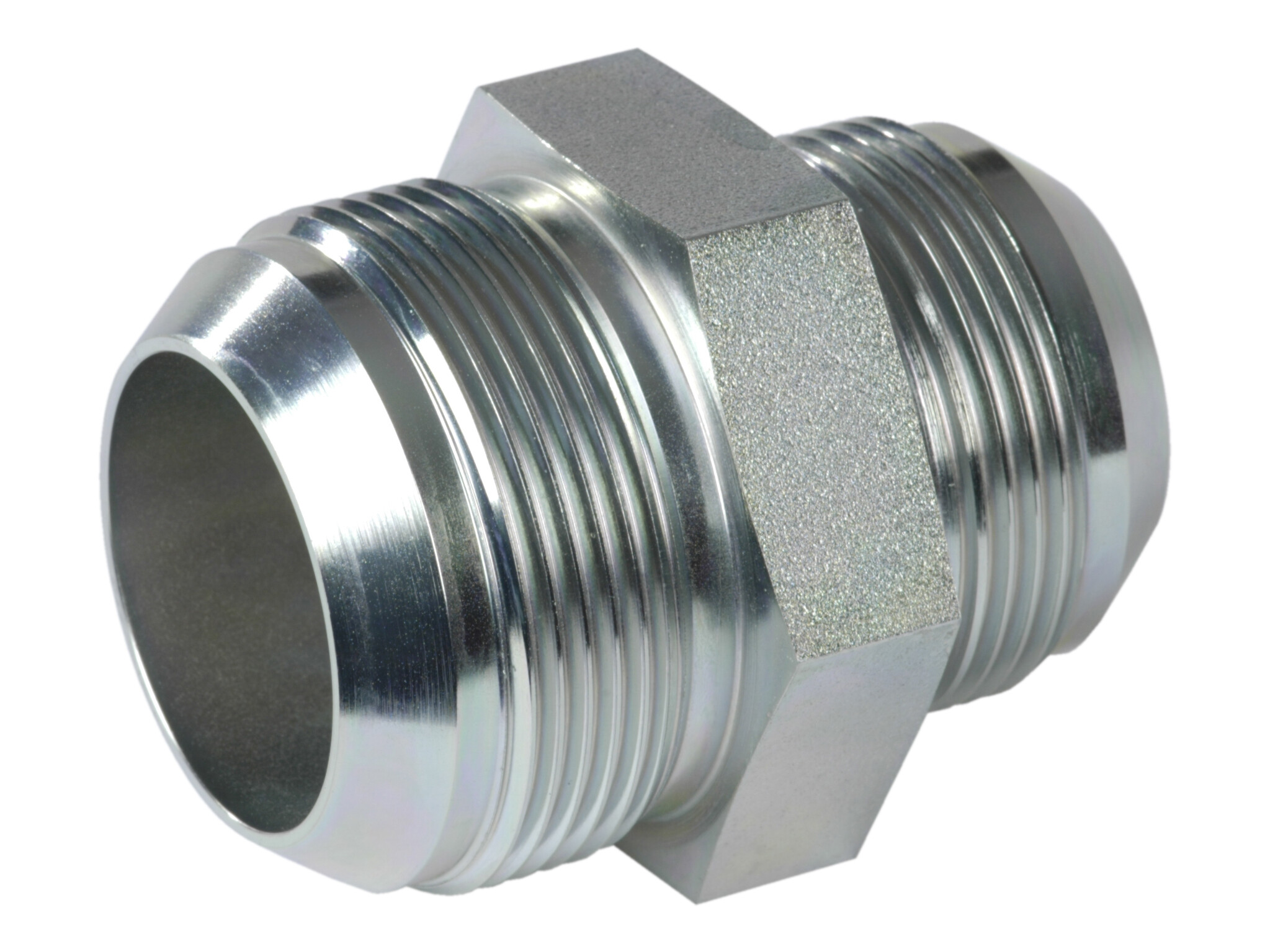

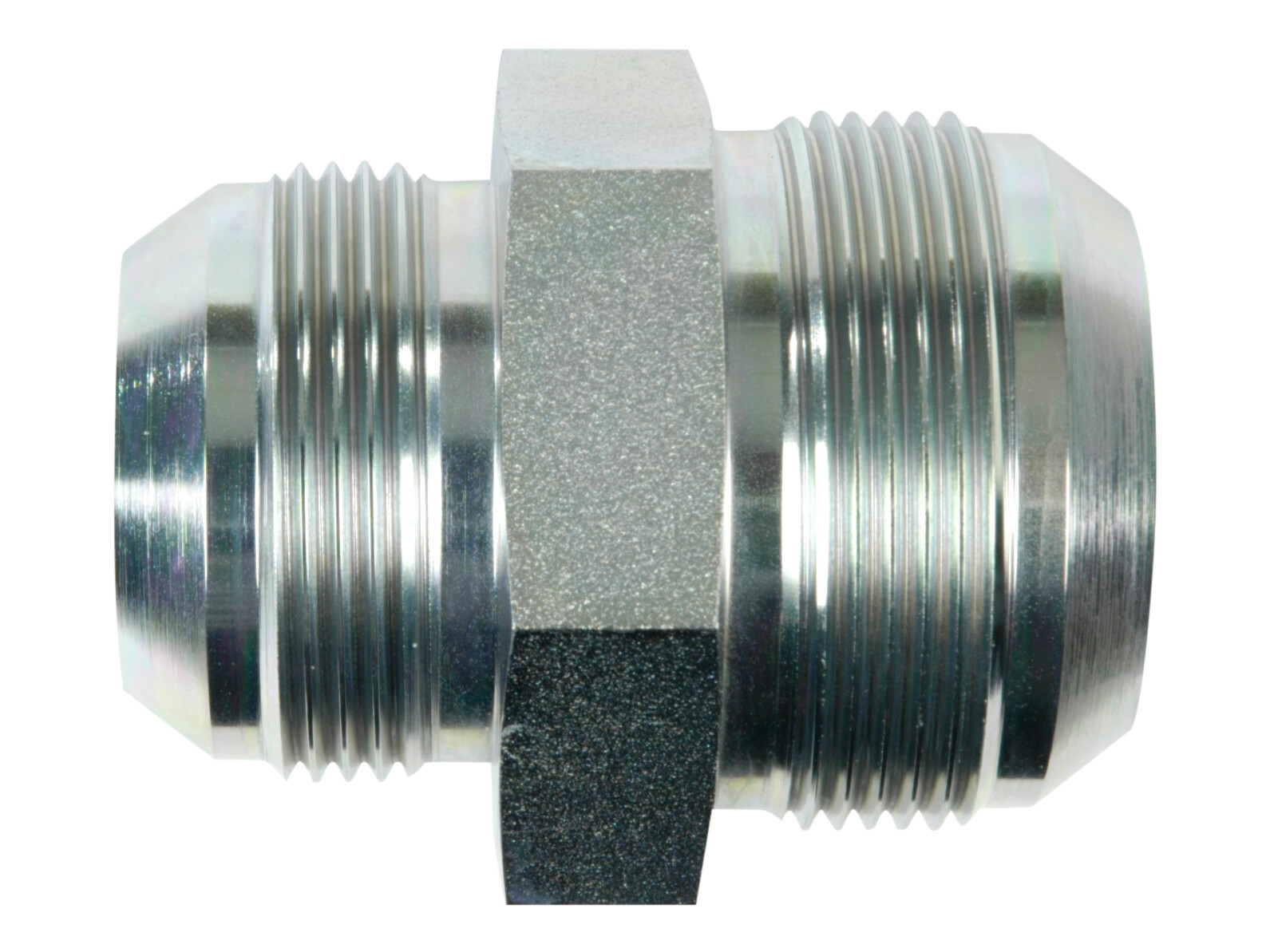

Lige samler 1.7/8-12 JIC udv x 1.5/8-12 JIC udv
Lige samler 1.7/8-12 JIC udv x 1.5/8-12 JIC udv
Partnumber:
MU-38-32
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe 1
38 mm
Diameter pipe 2
32 mm
Dimension A
65.5 mm
Dimension B
27.5 mm
Dimension B1
24.5 mm
Dimension CH
50 mm
Dimension J
1.7/8-12 JIC
Dimension J1
1.5/8-12 JIC
Dimension T
38 mm
Dimension T1
32 mm
Material
Stål
Pressure max.
250 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread outer
1.5/8-12, 1.7/8-12 JIC
Package size
0 pcs
Barcode
5704334214373
Gross weight
0,43 Kg
Net weight
0,43 Kg
Country of origin
ITA
Intrastat code
73071110
Lige samler 1.7/8-12 JIC udv x 1.5/8-12 JIC udv
