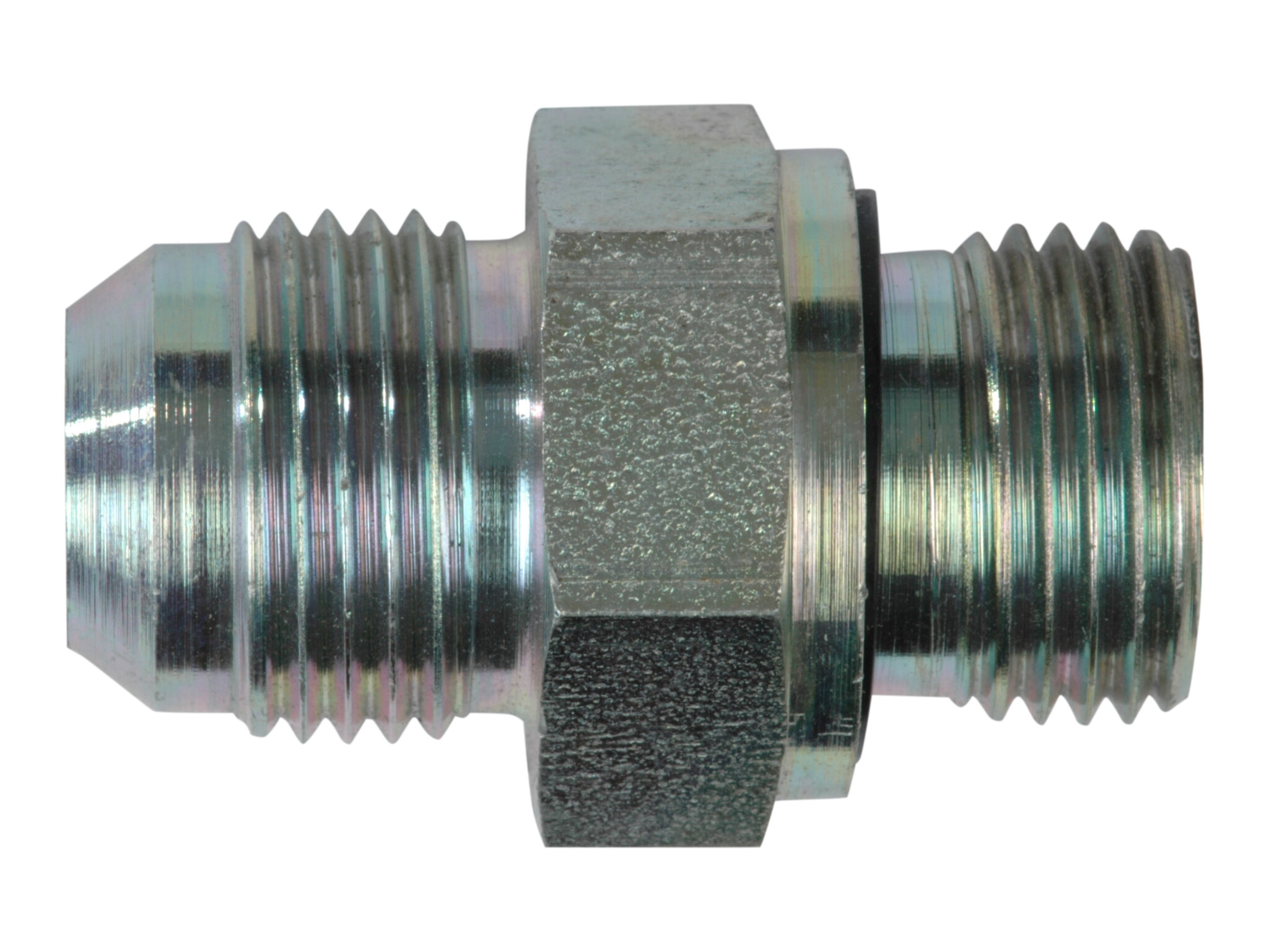

Indskruning 7/8-14 JIC udv x 1/2 BSP udv med WD pakning
Indskruning 7/8-14 JIC udv x 1/2 BSP udv med WD pakning
Partnumber:
M-16-1/2WD
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
14-15-16 mm
Dimension A
45.5 mm
Dimension B
19.5 mm
Dimension CH
27 mm
Dimension D
14 mm
Dimension F
G 1/2 BSP
Dimension J
7/8-14 JIC
Dimension T
14-15-16 mm
Material
Stål
Pressure max.
350 bar
Surface treatment
El-forzinket / hvidkromatiseret
Thread
G 1/2 BSP
Thread outer
7/8-14 JIC
Thread outer
G 1/2 BSP
Package size
0 pcs
Barcode
5704295496658
Gross weight
0,09 Kg
Net weight
0,09 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 7/8-14 JIC udv x 1/2 BSP udv med WD pakning
