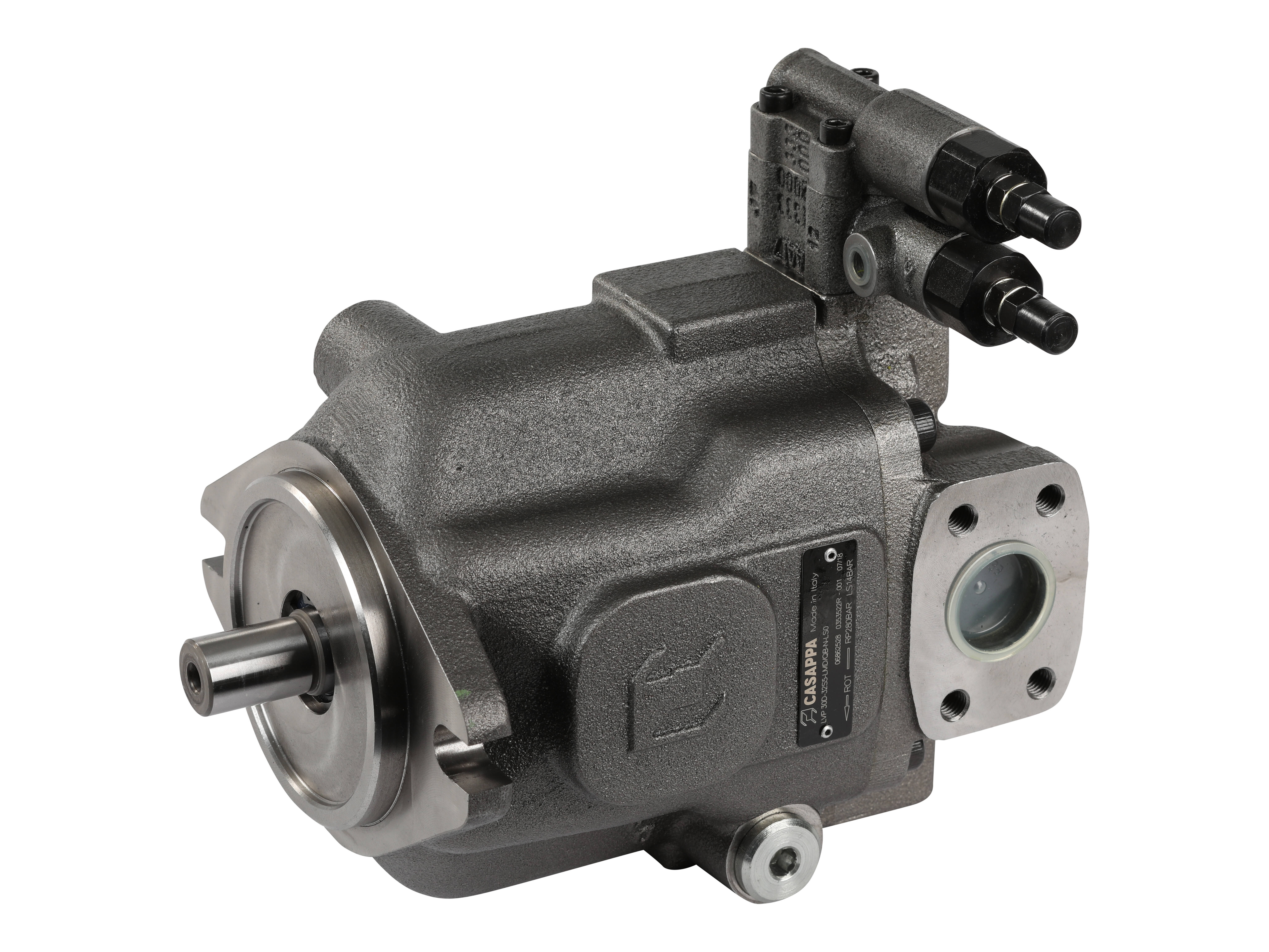

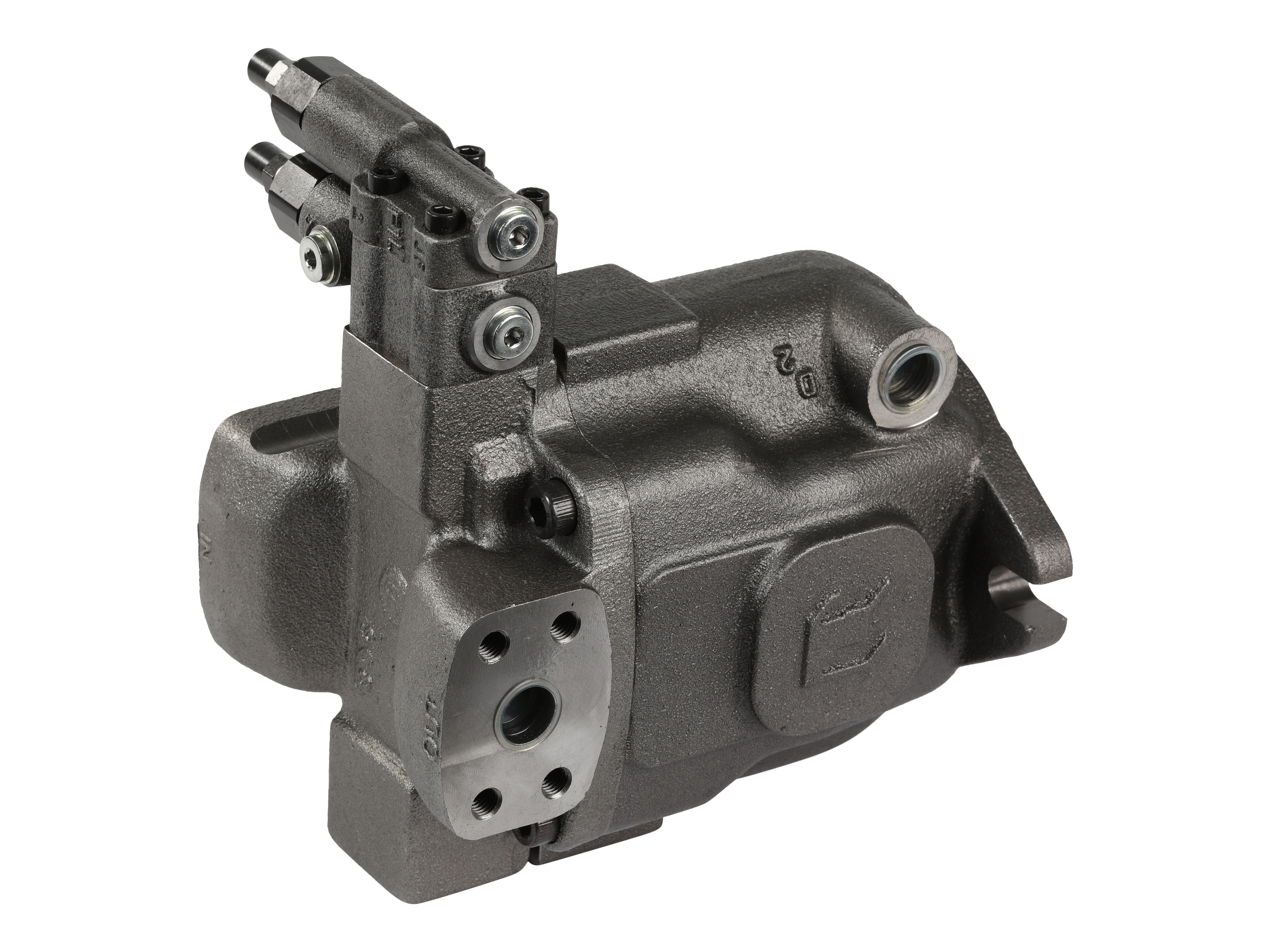

LVP30D-32S5-LMD/QB-N-LS0 Plata pumpe, Casappa
LVP30D-32S5-LMD/QB-N-LS0 Plata pumpe, Casappa
Artikelnummer:
LVP30D1LS0-1
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Casappa
Contamination level max.
18/16/13 - ISO 4406
Control
Load sensing
Control type
LS
Displacement
29 cm3
Holes circle
146 mm
Model code
LVP 30D-32S5-LMD/QB-N-LS0
Mounting flange
SAE-B2
Number of mounting holes
2
Oil viscocity recommended
15 - 35 cSt
Port position
Side
Pressure continous max.
280 bar
Pressure intermittent max.
315 bar
Pressure peak max.
350 bar
Rear flange
Ingen
Recess
101,6 mm
Rotation direction
Højre (CW)
Rotational speed max.
3000 rpm
Shaft diameter
22,22 mm
Shaft keyway
6,4 mm
Shaft type
Cylindrisk
Förpackningsstorlek
0 pcs
Streckkod
5704295810577
Bruttovikt
18,35 Kg
Nettovikt
18,35 Kg
Ursprungsland
ITA
Intrastat artikelkod
84135061
LVP30D-32S5-LMD/QB-N-LS0 Plata pumpe, Casappa
