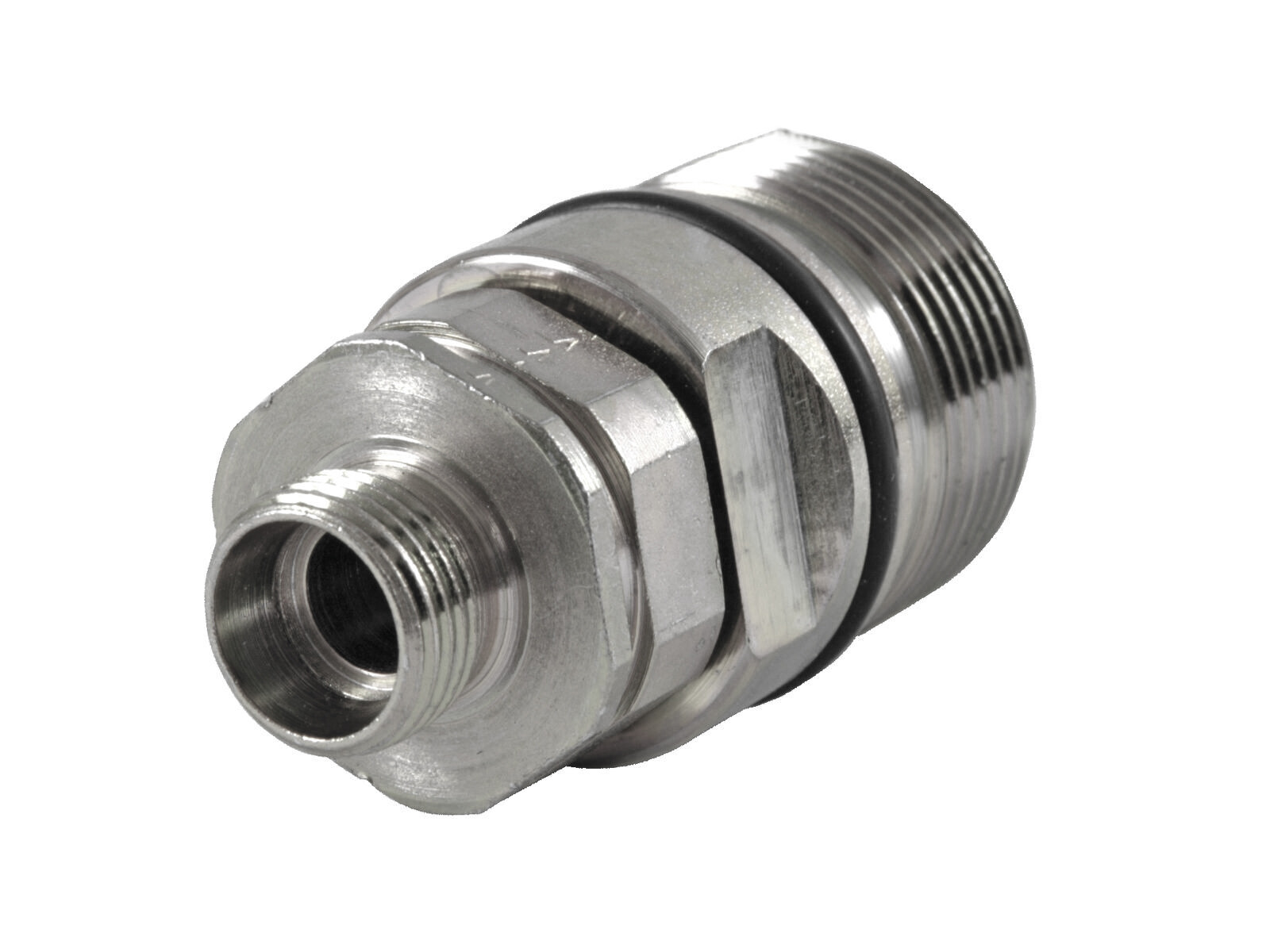

Skruelynkobling hun HS - DN25 - M30x2 (20S)
Standard DIN skrueforbindelse bruges ofte til entreprenørmaskiner.
Kan tilsluttes ved systemtryk op til ca. 50 bar.
Partnumber:
HS20-1-S2030
Package size:
0 pcs
Min. order quantity is:
1 pcs

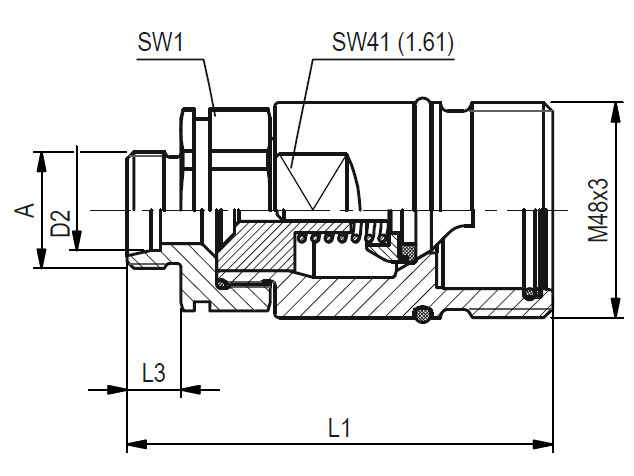

A
M30x2
Brand Name
Stauff
D
M48x3
Diameter pipe
20 mm
Flow rate nominal LMin
160 lpm
ISO size
25
L1
99 mm
Material
Stål
Model code
QRC-HS-25-F-20S-BT-W66
Pressure max.
300 bar
SW
41 mm
Sealing material
NBR
Series
S
Size
1 "
Standard ISO
ISO 14541
Surface treatment
Zink coating (CR III)
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread outer metric
M30x2
Package size
0 pcs
Barcode
5704295235592
Gross weight
0,70 Kg
Net weight
0,70 Kg
Country of origin
DEU
Intrastat code
84812010
Standard DIN skrueforbindelse bruges ofte til entreprenørmaskiner.
Kan tilsluttes ved systemtryk op til ca. 50 bar.
