Skruelynkobling hun HS - DN19 - M22x1.5 (15L) skot

Skruelynkobling hun HS - DN19 - M22x1.5 (15L) skot

Standard DIN-skruekobling der især anvendes på mobilkraner og indenfor industrien.

Indvendigt BSP-gevind.

Kan håndsamles ved systemtryk op til ca. 50 bar.

Varenummer:

HS12-1-N1522

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifikationer
Dimensioner og forsendelse

Diameter rør

15 mm

Dimension A metrisk

M22x1,5

Dimension B

95 mm

Dimension D metrisk

M42x2

Dimension L1

95 mm

Dimension SW

36 mm

Flow Nominel

120 lpm

Gevind udvendig metrisk

M22x1,5

ISO størrelse

Materiale

Stål

Model kode

QRC-HS-19-F-15LB-BT-W66

Mærke navn

Stauff

Overfladebehandling

Zink coating (CR III)

Pakningsmateriale

NBR

Serie

Standard ISO

ISO 14541

Størrelse

3/4 "

Temperatur maks.

+100 °C

Temperatur min.

-25 °C

Tryk maks.

400 bar

Pakke str.

0 pcs

Stregkode

5704334201236

Brutto vægt

0,51 Kg

Netto vægt

0,51 Kg

Oprindelsesland

DEU

Intrastat varekode

84812010

Produkt information

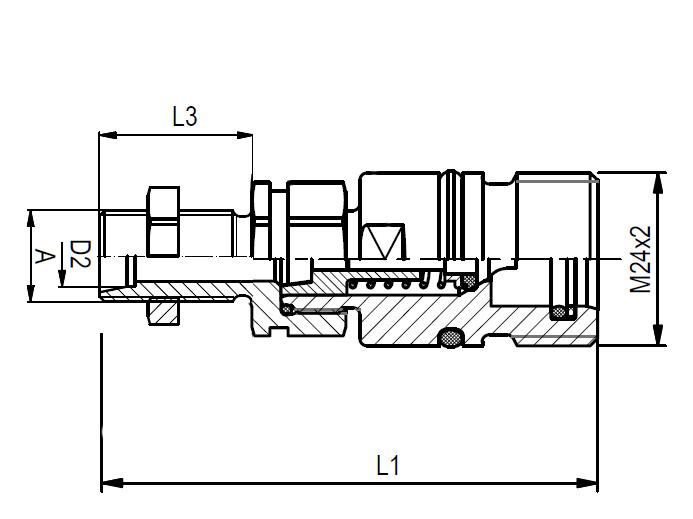

Målskitse

Standard DIN-skruekobling der især anvendes på mobilkraner og indenfor industrien.

Indvendigt BSP-gevind.

Kan håndsamles ved systemtryk op til ca. 50 bar.

Produktkatalog
