1.1/2" Kobling - (38S) M52x2 oml. - 45°

Tilslutning: Indvendigt MM-gevind med 24° udadvendt konus og o-ring.

Pakning/tætningsflade: O-ring (gummi) mod konus (metal).

Partnumber:

GSM2438RO524

Package size:

0 stk

Min. order quantity is:

1 stk

Specifications
Dimensions and shipping

236,9 mm

Angle

45 °

141,9 mm

Brand Name

Gates

Corrosion resistance

500 hours salt spray ASTM B-117

1.1/2"

40 mm

Diameter pipe

38 mm

44 mm

60 mm

Hose coupling type

Med fast kappe

Hose size

1.1/2 "

Material

Stål

Model code

24GSM-38FDHORX45

Pressure max.

420 bar

REACH compliant

RoHs compliant

Sealing material

NBR

Series

Surface treatment

TuffCoat™

Temperature max.

+100 °C

Temperature min.

-35 °C

Thread metric

M52x2

Torque tightening

290 - 310 Nm

Package size

0 stk

Barcode

5704334380122

Gross weight

Net weight

Country of origin

CZE

Intrastat code

73269098

Product information

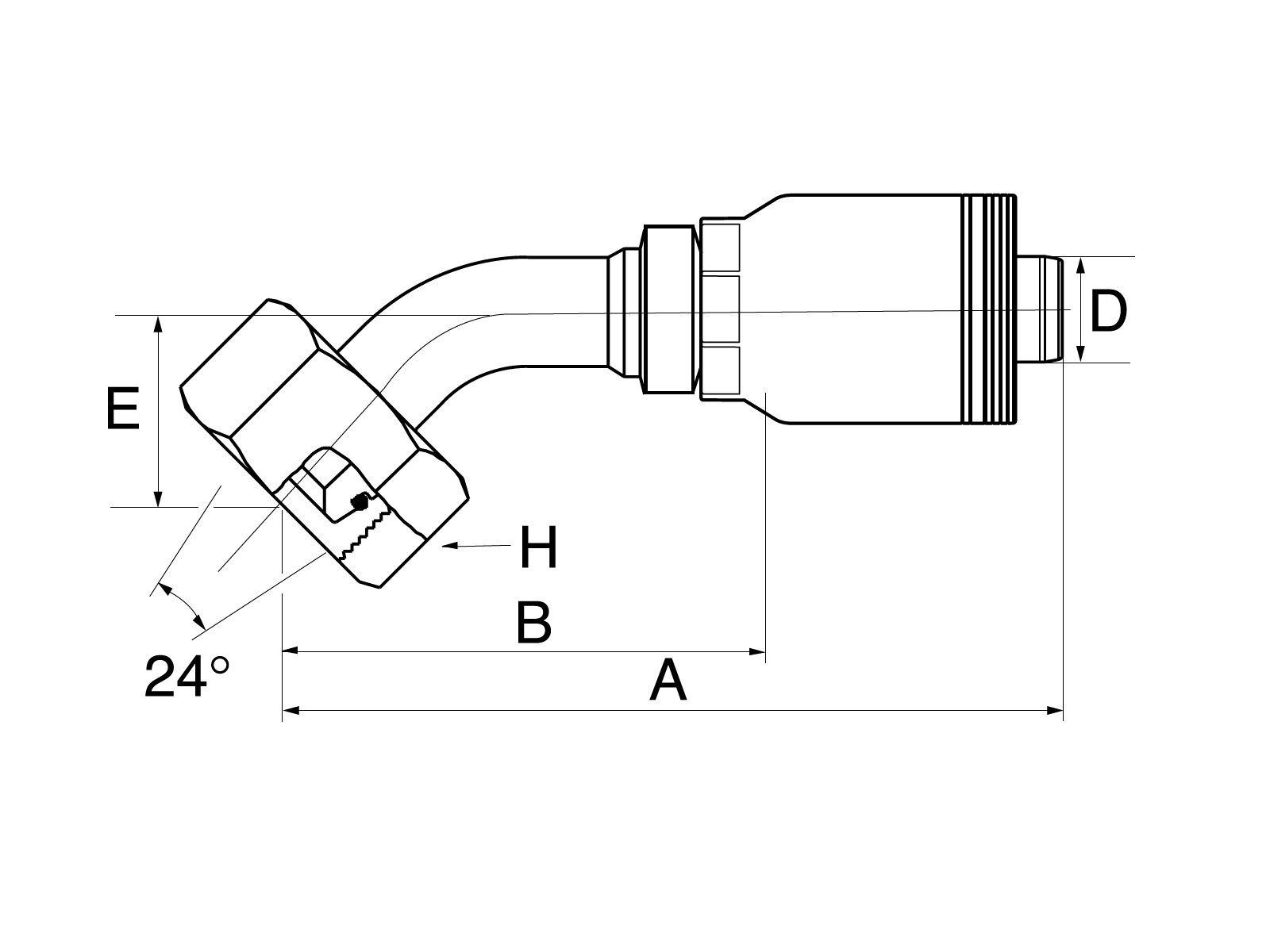

Measure sketch

Tilslutning: Indvendigt MM-gevind med 24° udadvendt konus og o-ring.

Pakning/tætningsflade: O-ring (gummi) mod konus (metal).
