3/4" Indstik - 1.1/16"-12 JIC oml. - 90°

Tilslutning: Indvendigt JIC-gevind med 37° indadvendt konus.

Pakning/tætningsflade: Konus mod konus (metal mod metal).

Partnumber:

GS1212NJ90

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Dimension A

119 mm

Dimension B

68 mm

Dimension D

3/4 "

Dimension E

58 mm

Dimension H1

31.8 mm

Dimension H2

28.6 mm

Gevind

1.1/16-12 JIC

Korrosions resistens

500 hours salt spray ASTM B-117

Materiale

Stål

Model kode

12GS-12FJX90M

Mærke navn

Gates

Overfladebehandling

TuffCoat™

REACH compliant

RoHs compliant

Slangekoblingstype

Til løs kappe

Slangestørrelse

3/4 "

Tilspændingsmoment

107 - 134 Nm

Vinkel

90 °

Package size

0 pcs

Barcode

5412571551105

Gross weight

0,32 Kg

Net weight

0,32 Kg

Country of origin

USA

Intrastat code

73269098

Product information

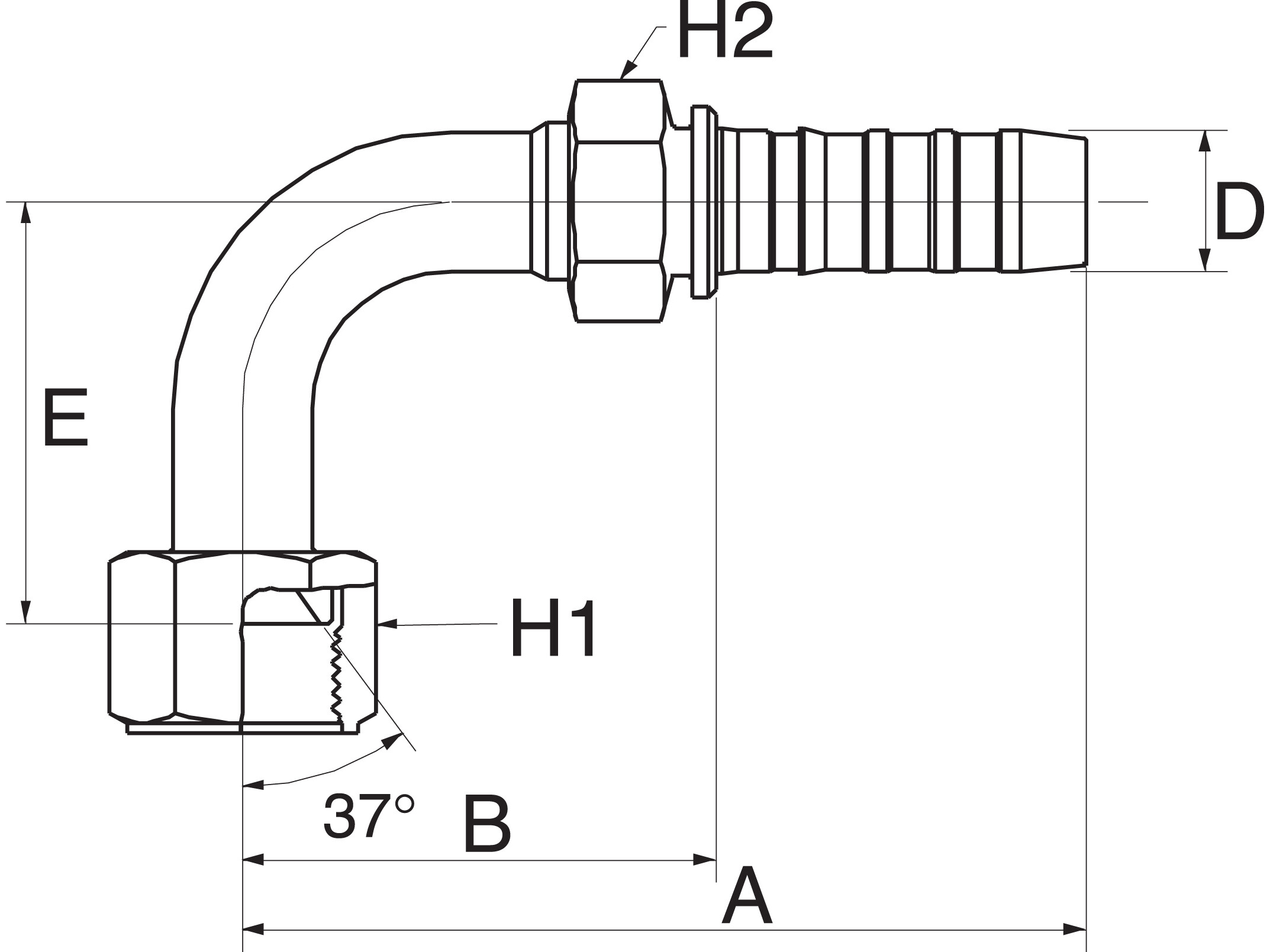

Measure sketch

Tilslutning: Indvendigt JIC-gevind med 37° indadvendt konus.

Pakning/tætningsflade: Konus mod konus (metal mod metal).

Note: Opening 3D files requires a program that supports the file format
