1/2" Indstik - 3/4" SAE6000 flange

Anvendes i forbindelse med halv-flanger

Varenummer:

GS0812PH

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

Gates

Corrosion resistance

500 hours salt spray ASTM B-117

Diameter flange

41.3 mm

Dimension A

93 mm

Dimension B

55.5 mm

Dimension D

1/2 "

Dimension K

41.3 mm

Flange

3/4 "

Flange SAE/DIN

6000 PSI

Hose coupling type

Til løs kappe

Hose size

1/2 "

Material

Stål

Model code

8GS-12FLH

O-ring

24,99X3,53 mm

REACH compliant

RoHs compliant

Shore

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Surface treatment

TuffCoat™

Torque tightening

70 - 77 Nm

Package size

0 pcs

Barcode

5412571958201

Gross weight

0,37 Kg

Net weight

0,37 Kg

Country of origin

USA

Intrastat code

73269098

Product information

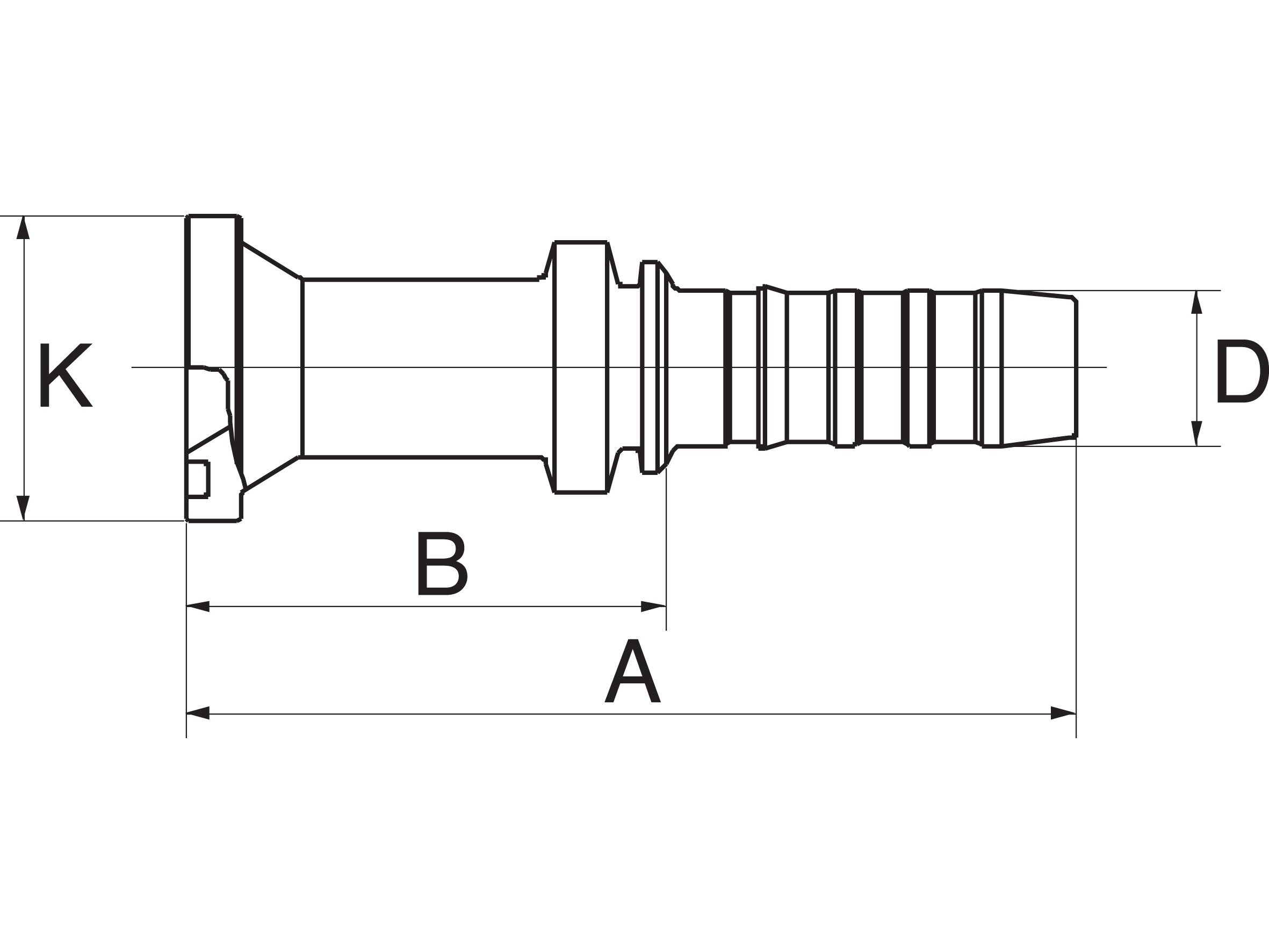

Measure sketch

Anvendes i forbindelse med halv-flanger
