GFS405G - Gevindflange 1.1/2" SAE6000 x 1.1/2" BSP

GFS405G - Gevindflange 1.1/2" SAE6000 x 1.1/2" BSP

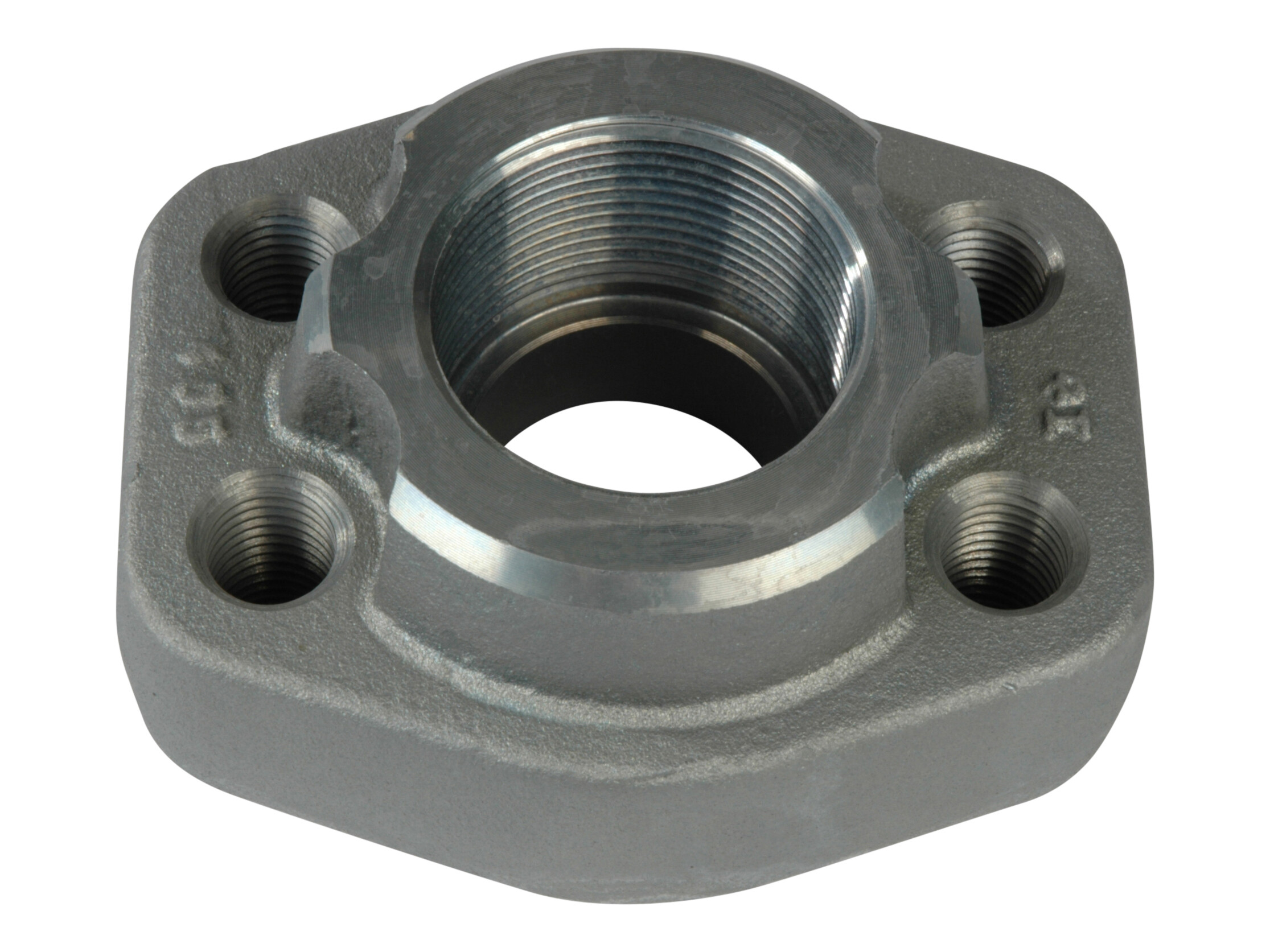

Gevindflange 1.1/2" SAE6000 x 1.1/2" BSP

Varenummer:

GFS405G

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifikationer
Dimensioner og forsendelse

Boltgevind metrisk

M16

Diameter flange

63.5 mm

Dimension C

79.3 mm

Dimension E

36.5 mm

Flange

1.1/2 "

Flange SAE/DIN

6000 PSI

Gevind indvendig

G 1.1/2 BSP

Korrosions resistens

480 hours salt spray DIN EN 9227

Materiale

Stål

Mærke navn

Havit

O-ring

47.22X3.53 mm

Overfladebehandling

Zink-Nikkel belagt

Shore

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Temperatur maks.

+90 °C

Temperatur min.

-40 °C

Tryk maks.

420 bar

Vinkel

0 °

Pakke str.

0 pcs

Stregkode

5704295935294

Brutto vægt

1,65 Kg

Netto vægt

1,65 Kg

Oprindelsesland

DEU

Intrastat varekode

73079100

Produkt information
Målskitse

Gevindflange 1.1/2" SAE6000 x 1.1/2" BSP
