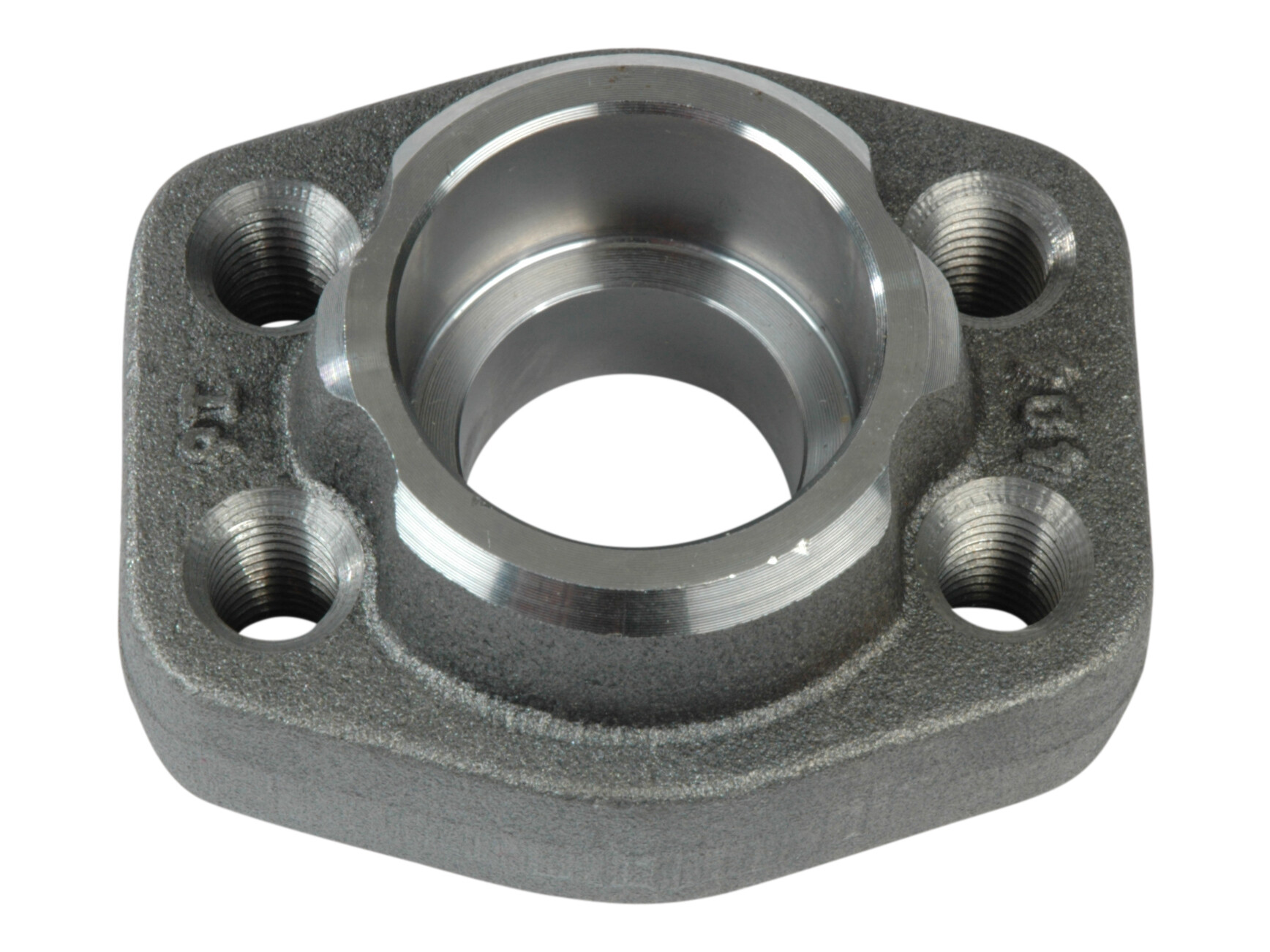

Svejseflange 1.1/4" SAE6000

Partnumber:

GFS404S

Package size:

0 pcs

Min. order quantity is:

1 pcs

Tilbehør (1)

O-ring 90S

Partnumber: 37.69X3.53S

Specifications
Dimensions and shipping

Boltgevind metrisk

M14

Diameter flange

54 mm

Diameter svejsestuds

42.8 mm

Dimension C

66.6 mm

Dimension E

31.8 mm

Flange

1.1/4 "

Flange SAE/DIN

6000 PSI

Materiale

Rustfrit stål

Mærke navn

Havit

O-ring

37.69X3.53 mm

Shore

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Temperatur maks.

+90 °C

Temperatur min.

-40 °C

Tryk maks.

420 bar

Package size

0 pcs

Barcode

5704295321035

Gross weight

1,20 Kg

Net weight

1,20 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Svejseflange 1.1/4" SAE6000
