Elbow ø12 3/8" BSPT - forged
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Partnumber:
FXWE12LR38K
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
90 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
12 mm

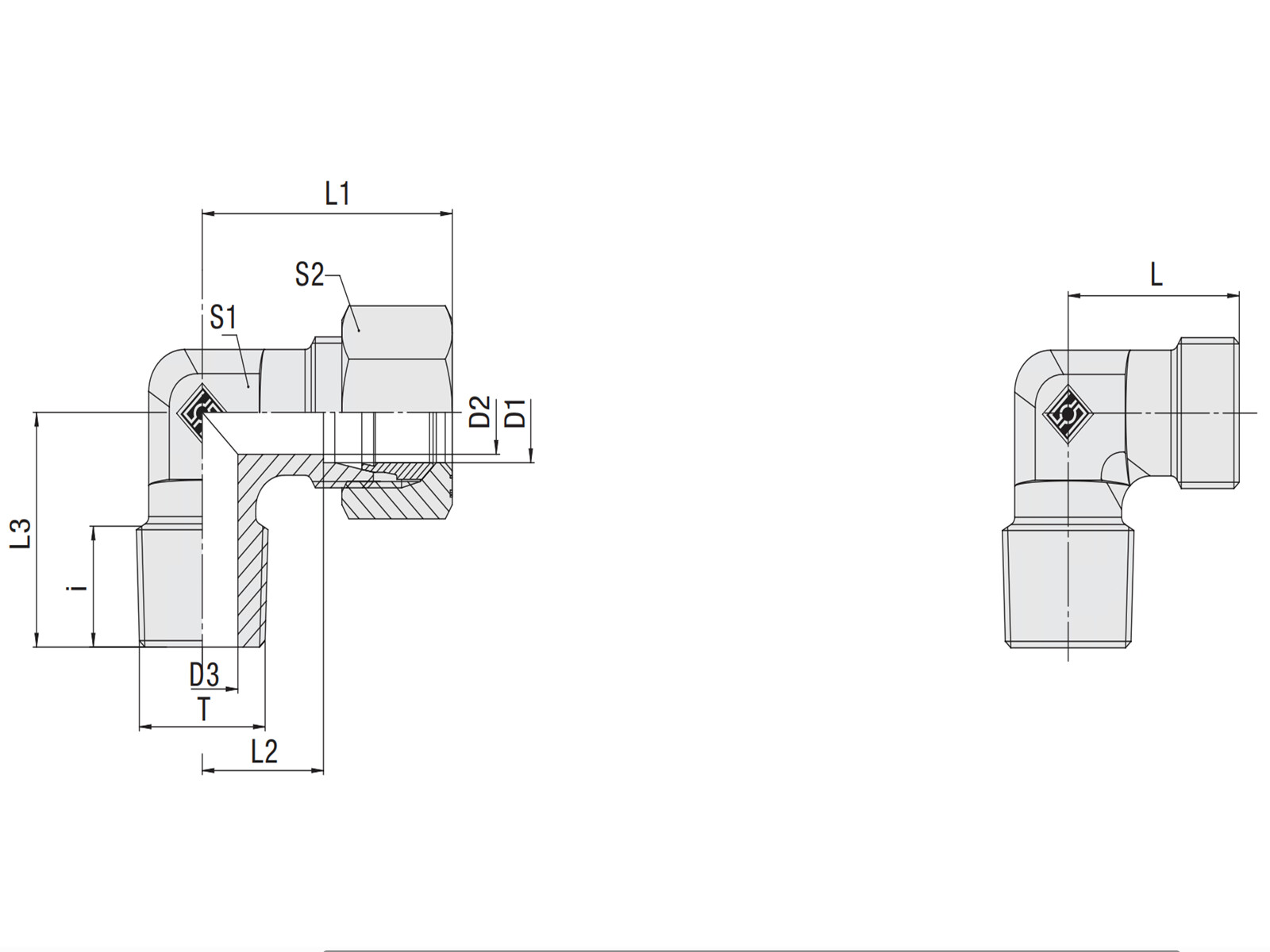

Dimension D1
12 mm
Dimension D2
10 mm
Dimension D3
9 mm
Dimension L
24 mm
Dimension L1
32 mm
Dimension L2
17 mm
Dimension L3
28.5 mm
Dimension S1
17 mm
Dimension T
R 3/8 BSPT
Dimension i
13 mm
Material
Steel
Model code
FI-WE-12LRk-W3
Pressure max.
315 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Series
L
Surface treatment
Zinc-Nickel plated
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread outer
R 3/8 BSPT
Pakke str.
0 pcs
Stregkode
5704334723707
Brutto vægt
0,04 Kg
Netto vægt
0,04 Kg
Oprindelsesland
DEU
Intrastat varekode
73071110
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
