FXREDSD3522L - Reduktion - ø35L indv x ø22l - o-ringstætning

Temperatur/trykreduktion:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%

Partnumber:

FXREDSD3522L

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (5)

DPR22L - Skärring 22L

Partnumber: DPR22L

Cutting ring - ø22L

Partnumber: FIDS22L

Nut - ø22L - M30x2

Partnumber: FIM22L

Double cutting ring WDDS - ø22L - packing

Partnumber: FIWDDS22L

M22L nut ø22 M30x2

Partnumber: M22L

Specifications
Dimensions and shipping

Diameter rör

35 - 22 mm

Dimension D1

35 mm

Dimension D2

22 mm

Dimension D3

19 mm

Dimension D4

28 mm

Dimension L

46 mm

Dimension L1

57 mm

Dimension L2

41 mm

Dimension S1

46 mm

Dimension S2

50 mm

Dimension S3

36 mm

Dimension d1

35 mm

Gänga inv. metrisk

M45x2 MM

Gänga utv. metrisk

M30x2

Modell kod

FI-REDSD-35/22L-V-W3-DKO

Märke namn

Stauff

Packningsmaterial

FKM/FPM (Viton®)

REACH compliant

RoHs compliant

Rostbeständighet

1200 hours salt spray DIN EN ISO 9227

Serie

Säkerhetsfaktor

Temperatur max.

+200 °C

Temperatur min.

-25 °C

Tillverkningsmaterial

Stål

Tryck max.

250 bar

Vinkel

0 °

Ytskiktbehandling

Zink-Nikkel belagt

Package size

0 pcs

Barcode

5704334711216

Gross weight

0,35 Kg

Net weight

0,35 Kg

Country of origin

DEU

Intrastat code

73071110

Product information

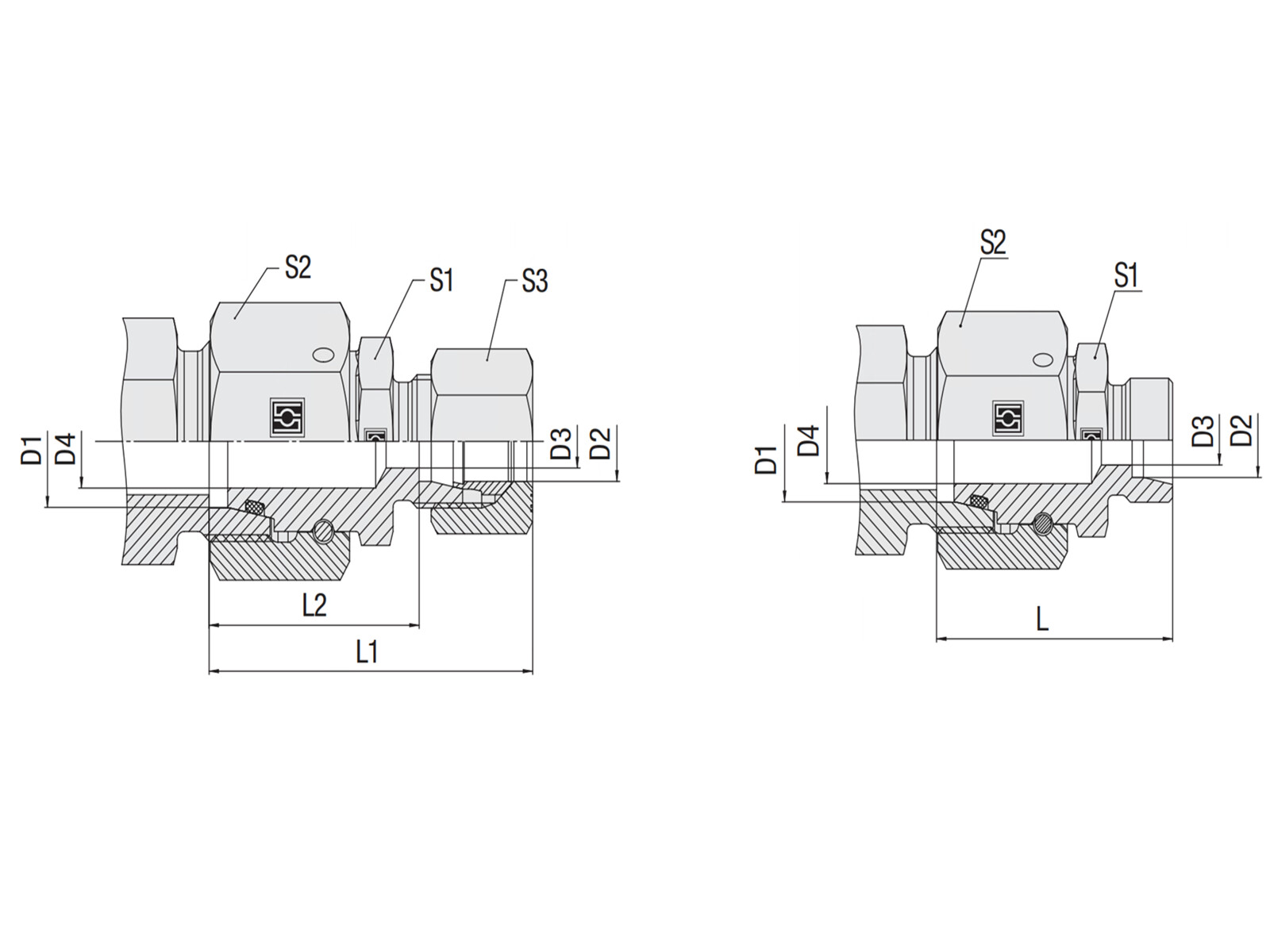

Measure sketch

Temperatur/trykreduktion:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
