Omvendt samler - ø14S
Temperatur/trykreduktion:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Partnumber:
FISNV14S
Package size:
0 stk
Min. order quantity is:
1 stk
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227

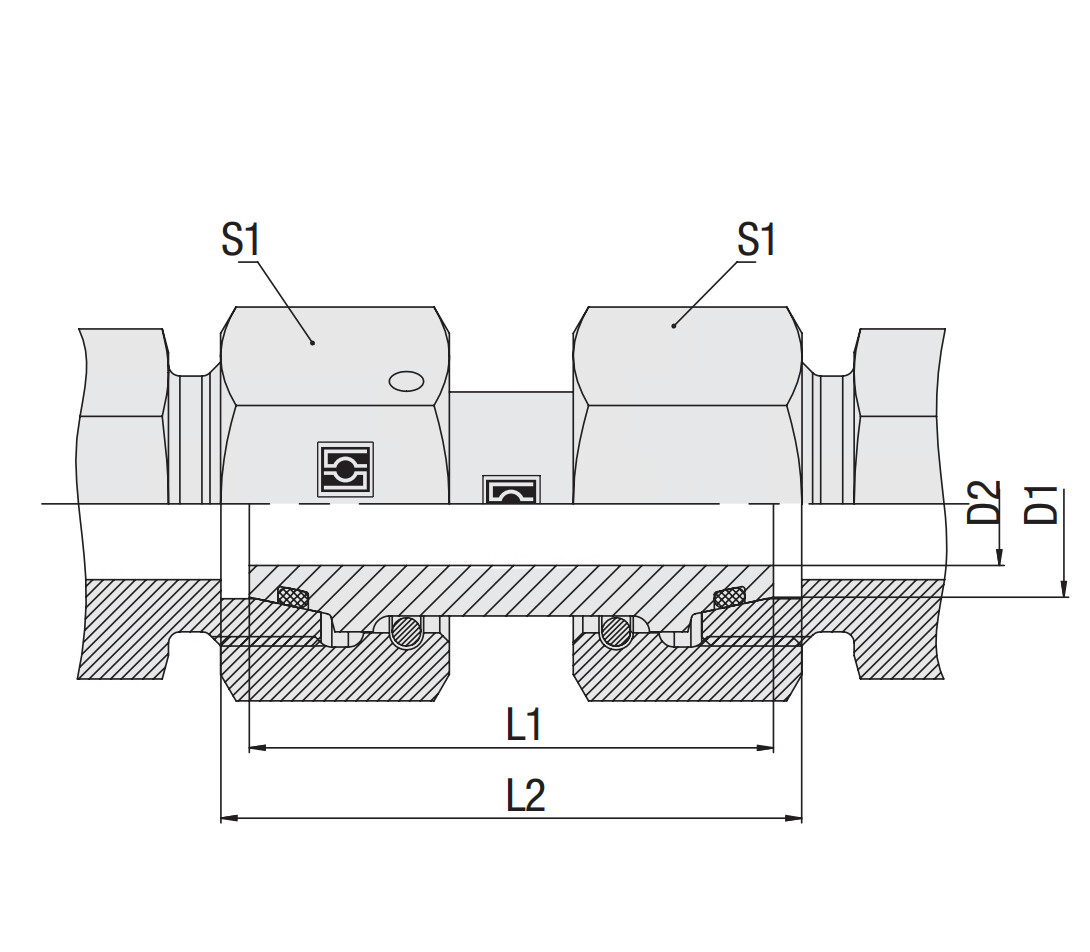

D1
14 mm
D2
9 mm
Diameter pipe
14 mm
L1
45 mm
L2
48,8 mm
Material
Stål
Model code
FI-SNV-14S-V-W3-DKO
PN
630 bar
Pressure max.
630 bar
REACH compliant
Ja
RoHs compliant
Ja
S1
27 mm
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Series
S
Series 1
N/A
Surface treatment
Zink-Nikkel belagt
Temperature max.
+200 °C
Temperature min.
-25 °C
Thread inner metric
M22x1,5
Pakke str.
0 stk
Stregkode
5704334714781
Brutto vægt
Kg
Netto vægt
Kg
Oprindelsesland
DEU
Intrastat varekode
73079910
Temperatur/trykreduktion:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
