FG-20-3/4 - Indskruning 1.1/16-12 JIC omløber x 3/4 BSP udv

FG-20-3/4 - Indskruning 1.1/16-12 JIC omløber x 3/4 BSP udv

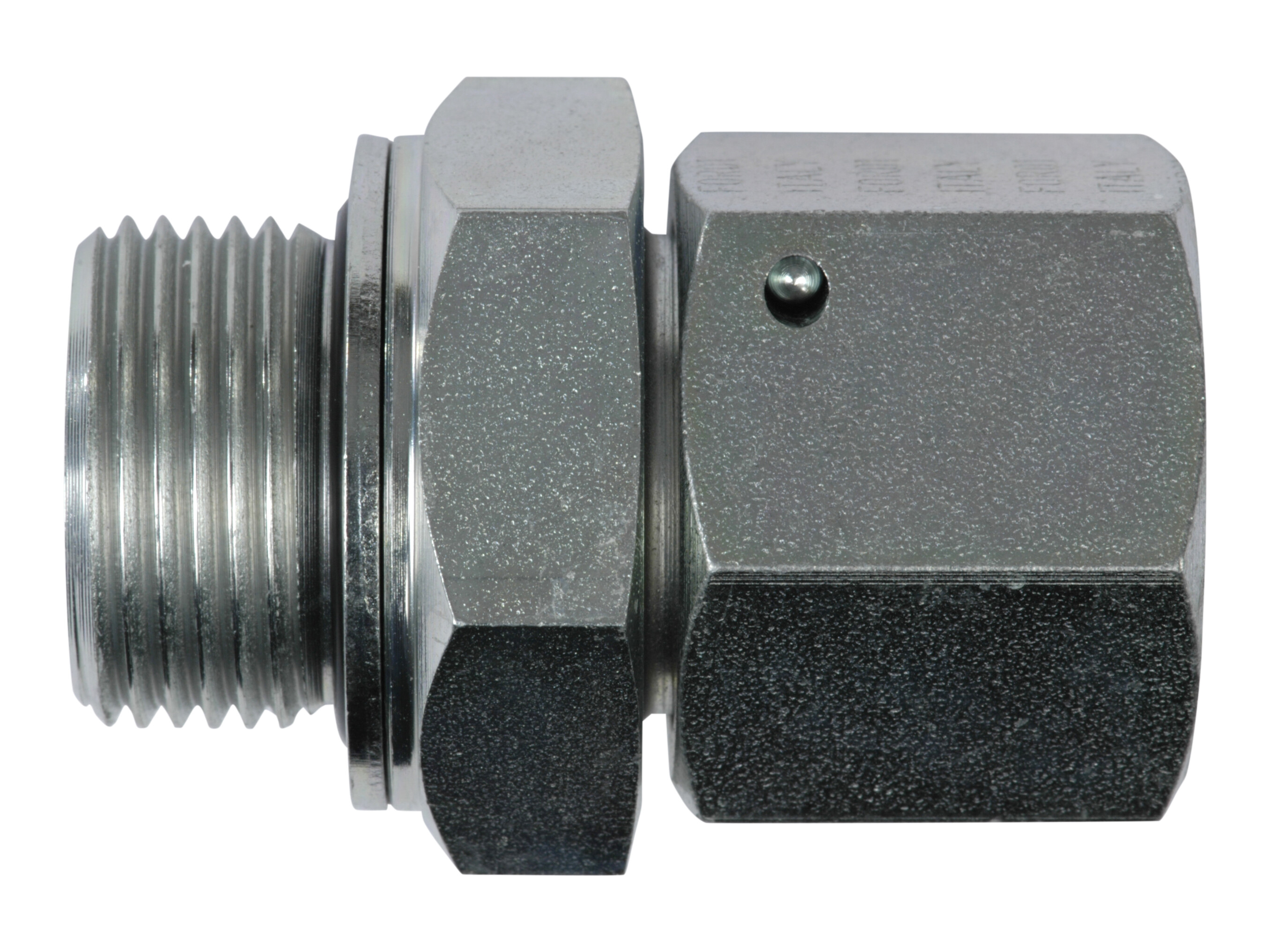

Indskruning 1.1/16-12 JIC omløber x 3/4 BSP udv

Partnumber:

FG-20-3/4

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

56,5 mm

27,5 mm

36 mm

CH1

32 mm

14 mm

Diameter rør

20 mm

G 3/4 BSP

Gevind indvendig

1.1/16-12 JIC

Gevind udvendig

G 3/4 BSP

1.1/16-12 JIC

Korrosions resistens

1400 hours salt spray DIN EN ISO 9227

Materiale

Stål

Model kode

A102177/2026

Mærke navn

FOR

Overfladebehandling

El-forzinket

Pakningsmateriale

NBR

Standard ISO

ISO 1179

20 mm

Temperatur maks.

+120 °C

Temperatur min.

-20 °C

Tryk maks.

280 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704334274391

Gross weight

0,19 Kg

Net weight

0,19 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Indskruning 1.1/16-12 JIC omløber x 3/4 BSP udv
