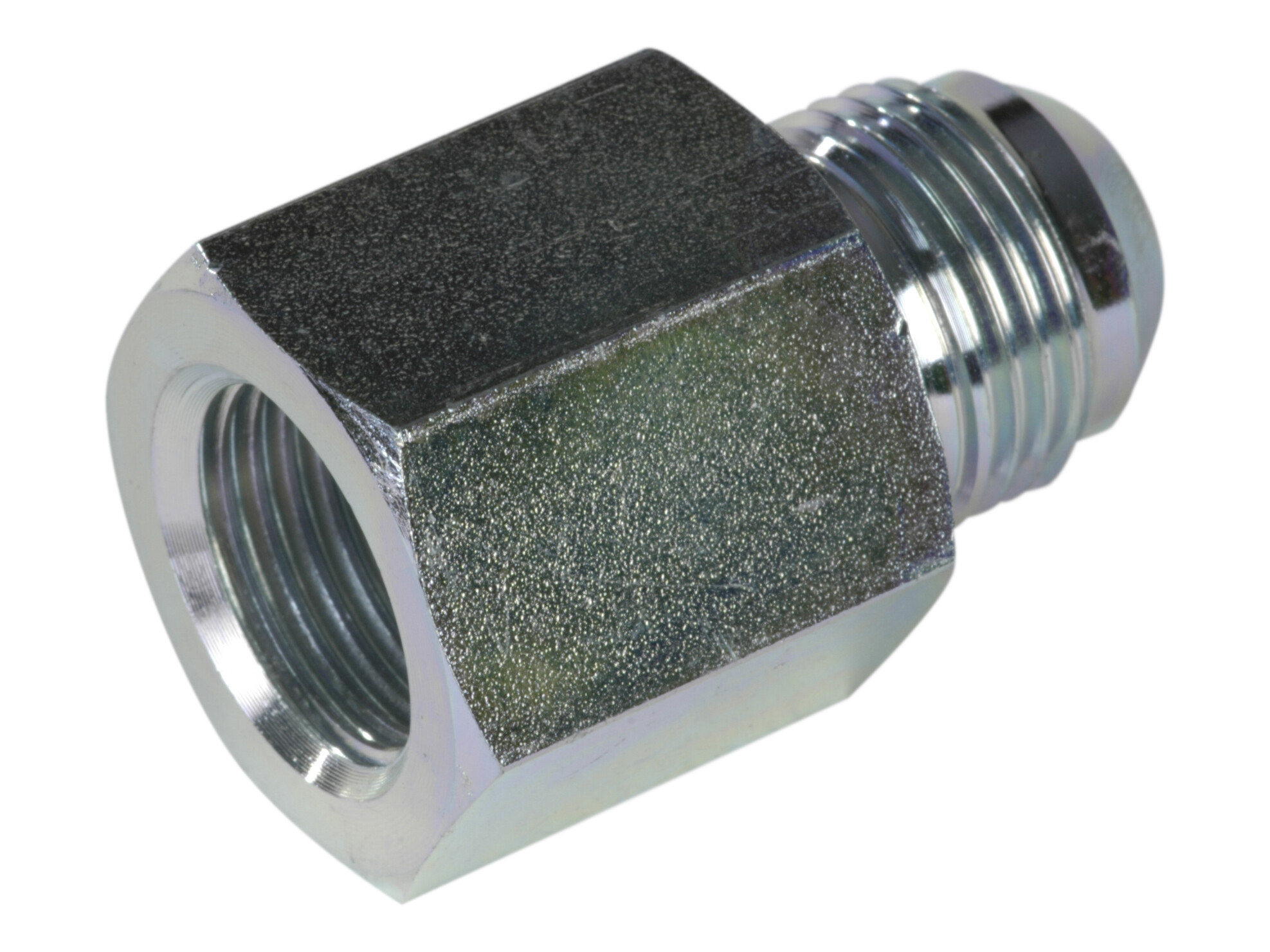

Påskruning 9/16-18 JIC udv x 1/4 BSP indv
Påskruning 9/16-18 JIC udv x 1/4 BSP indv
Partnumber:
FFM-10-1/4
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter rör
10 mm
Dimension A
28 mm
Dimension B
14 mm
Dimension CH
19 mm
Dimension F
G 1/4 BSP
Dimension J
9/16-18 JIC
Dimension T
10 mm
Gänga inv.
G 1/4 BSP
Gänga utv.
9/16-18 JIC
Märke namn
FOR
Rostbeständighet
1400 hours salt spray DIN EN ISO 9227
Tillverkningsmaterial
Stål
Tryck max.
350 bar
Vinkel
0 °
Ytskiktbehandling
El-forzinket / hvidkromatiseret
Package size
0 pcs
Barcode
5704295945002
Gross weight
0,05 Kg
Net weight
0,05 Kg
Country of origin
ITA
Intrastat code
73071110
Påskruning 9/16-18 JIC udv x 1/4 BSP indv
