Reducerende samler - ø22L x ø18L

Temperatur-/trykreduktion:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%

Varenummer:

ER2218LX

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tilbehør (1)

Skärring 22L

Partnumber: DPR22L

Specifications
Dimensions and shipping

Diameter rør

22 - 18 mm

Dimension D1

22 mm

Dimension D2

18 mm

Dimension S

32 mm

Dimension l1

18 mm

Gevind udvendig metrisk

M26x1,5, M30x2

Korrosions resistens

1200 hours salt spray DIN EN ISO 9227

Materiale

Stål

Model kode

XER2218LZN

Mærke navn

Stauff

Overfladebehandling

Zink-Nikkel belagt

REACH compliant

RoHs compliant

Serie

Serie 1

Serie 2

Sikkerhedsfaktor

Temperatur maks.

+120 °C

Temperatur min.

-40 °C

Tryk maks.

250 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704295329314

Gross weight

0,09 Kg

Net weight

0,09 Kg

Country of origin

DEU

Intrastat code

73071110

Product information

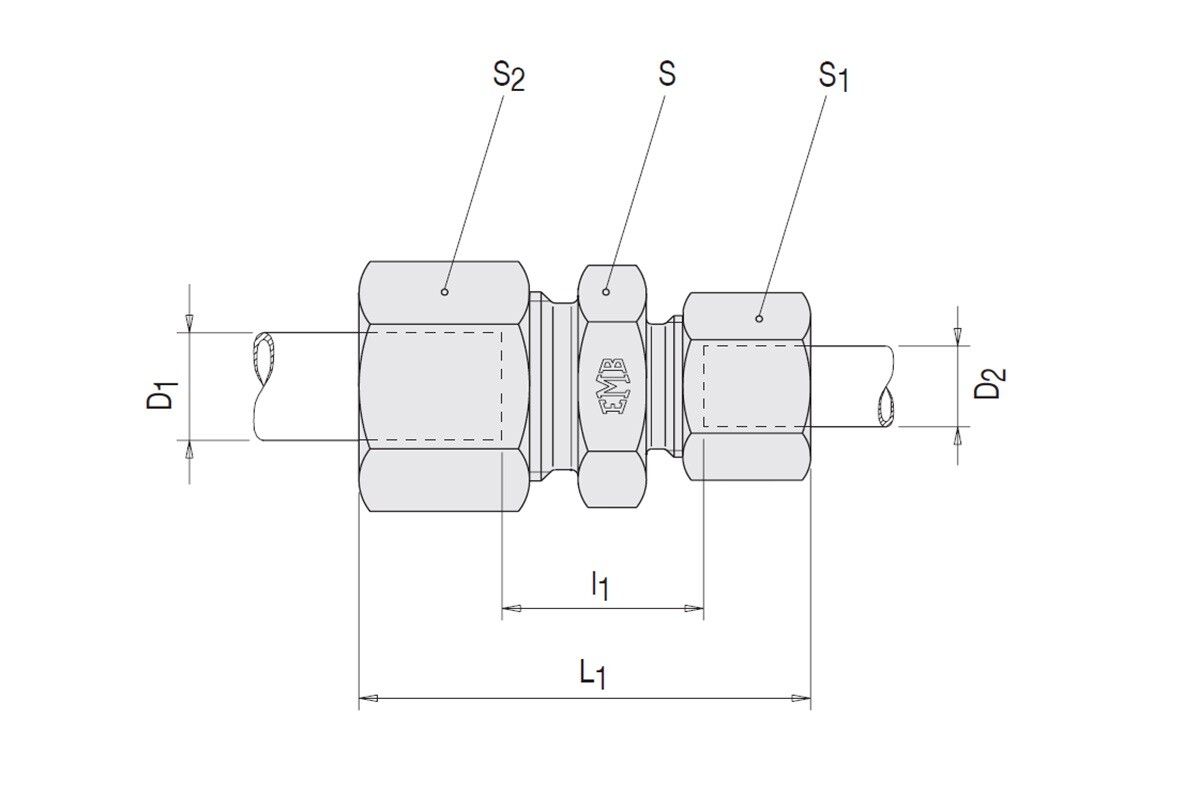

Measure sketch

Temperatur-/trykreduktion:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%

Note: Opening 3D files requires a program that supports the file format
