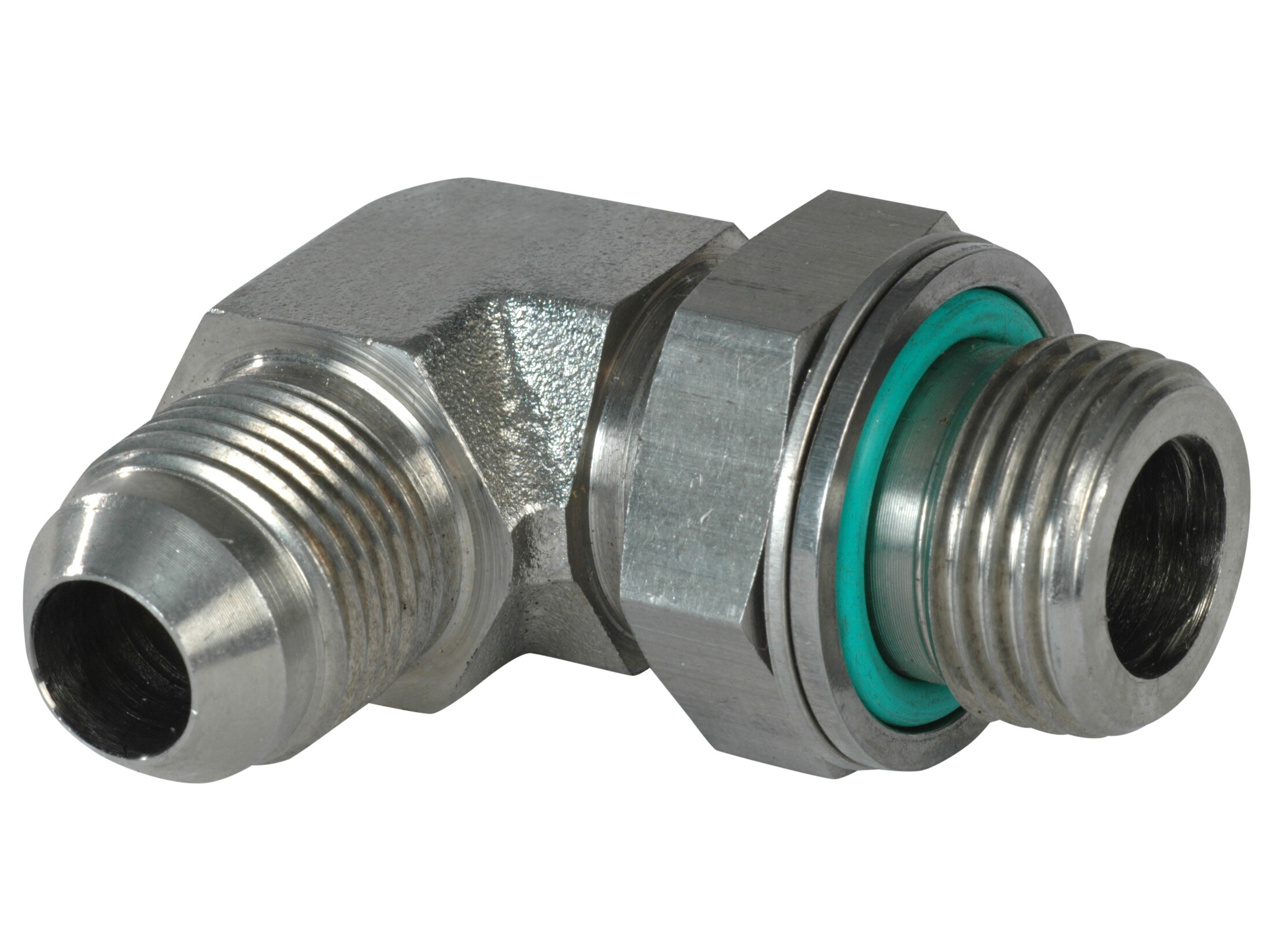

Vinkelindskruning 90 gr 1.5/16-12 JIC udv x 1 BSP udv-AISI31
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
CO-25-1/71
Package size:
0 stk
Min. order quantity is:
1 stk
Angle
90 °
Brand Name
Hydraspecma
Diameter pipe
25 mm

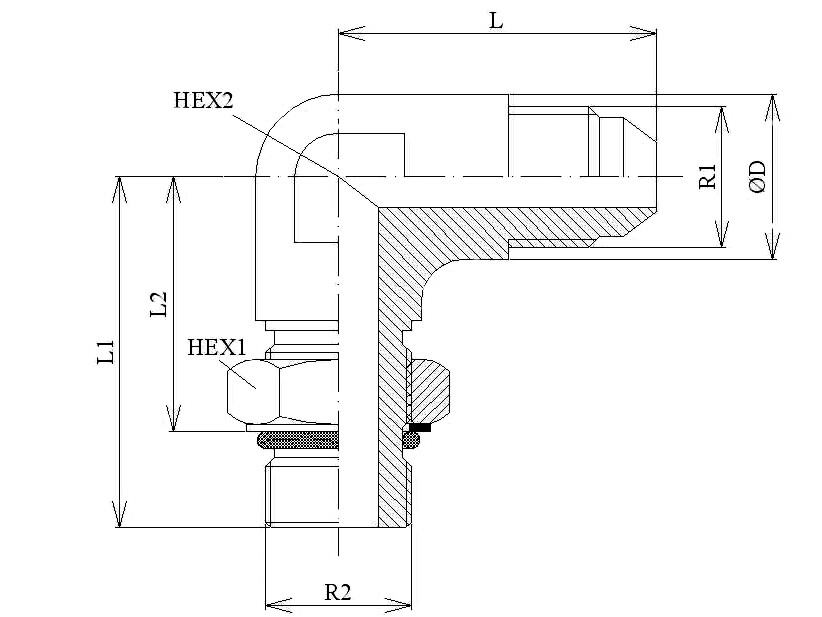

L
46 mm
L1
52 mm
L2
38 mm
Material
Syrefast Stål
Material quality
AISI 316L
Pressure max.
420 bar
Sealing material
FKM/FPM (Viton®)
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread outer
1.5/16-12 JIC
Thread outer
G 1 BSP
Pakkestr.
0 stk
Strekkode
5704295451190
Bruttovekt
0,50 Kg
Nettovekt
0,50 Kg
Opprinnelsesland
ESP
Intrastat produktkode
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
