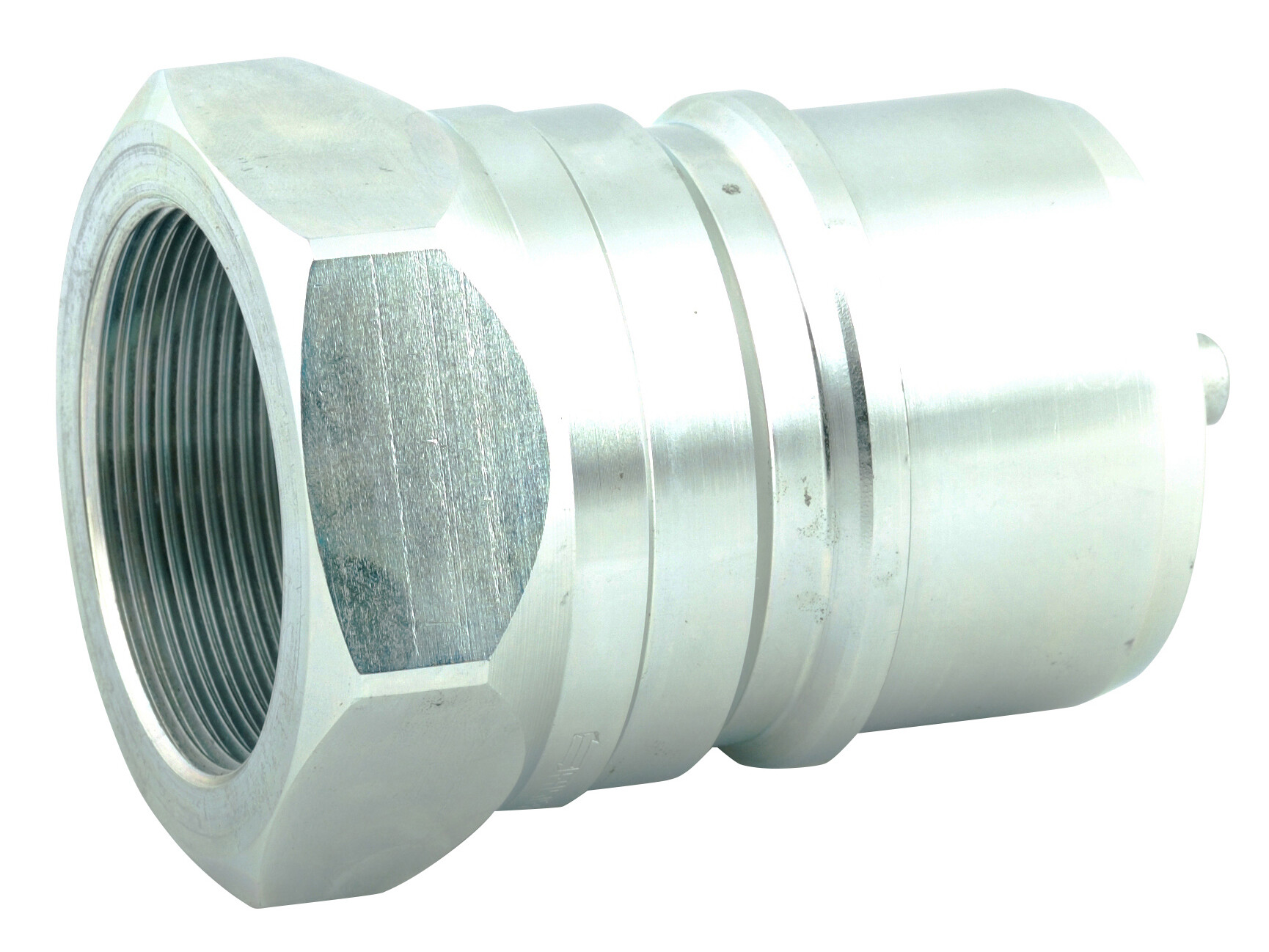

Coupling male ANV (ISO-A) - DN50 - 2"BSP
Shut-off system: Poppet valve. Connectability: Without pressure. Disconnection under pressure not allowed.
Connection and disconnection by pulling back the sleeve on the female part.
Partnumber:
ANV2GASM
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Faster
DN
50 mm
Dimension D1
85 mm
Dimension D3
65 mm
Dimension L1
100 mm
Field of application
Agriculture
Flow rate nominal LMin
900 lpm
Hexagon
75 mm
ISO size
50
Material
Steel
Model code
ANV 2 GAS M
Pressure max.
150 bar
Pressurized connection
Not allowed
Sealing material
NBR
Size
2 "
Standard ISO
ISO 1179-1
Surface treatment
MATE 500 (CrIII)
Temperature max.
+125 °C
Temperature min.
-25 °C
Thread inner
G 2 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704334192336
Bruttovikt
1,49 Kg
Nettovikt
1,49 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
Shut-off system: Poppet valve. Connectability: Without pressure. Disconnection under pressure not allowed.
Connection and disconnection by pulling back the sleeve on the female part.
