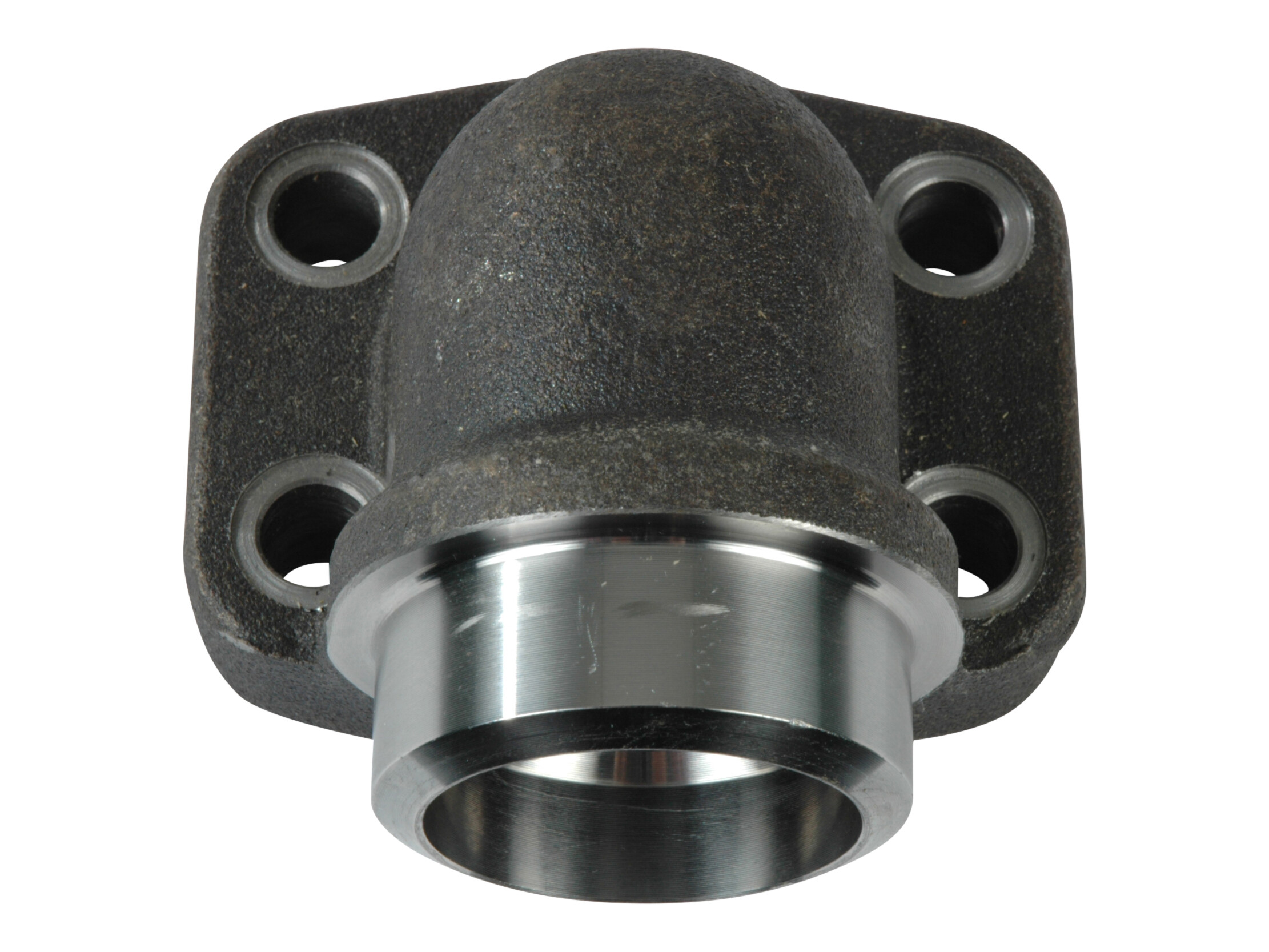

Vinkel stuksvejseflange 2" SAE3000
Vinkel stuksvejseflange 2" SAE3000
Partnumber:
AFS108/90ST
Package size:
0 pcs
Min. order quantity is:
1 pcs
Bolt dimension
M12x45 mm
Diameter flange
71.4 mm
Dimension C
77.8 mm
Dimension E
42.9 mm
Flange
2 "
Flange SAE/DIN
3000 PSI
Materiale
Stål
Mærke navn
Havit
O-ring
56.75X3.53 mm
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperatur maks.
+90 °C
Temperatur min.
-40 °C
Tryk maks.
210 bar
Package size
0 pcs
Barcode
5704295715605
Gross weight
2,15 Kg
Net weight
2,15 Kg
Country of origin
DEU
Intrastat code
73079100
Vinkel stuksvejseflange 2" SAE3000
