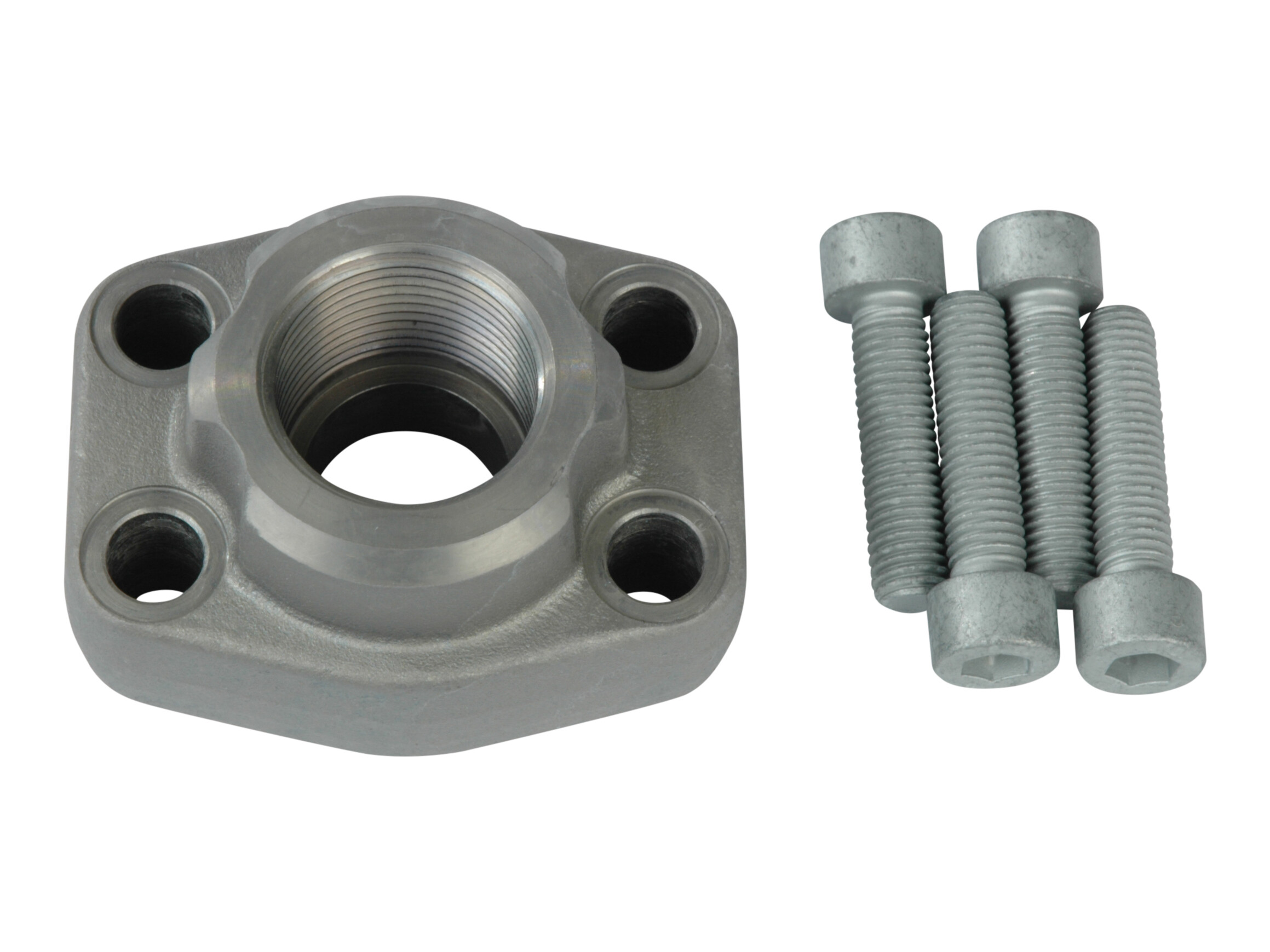

Gevindflange 1.1/4" SAE3000 x 1" BSP - komplet

Gevindflange 1.1/4" SAE3000 x 1" BSP - komplet

Partnumber:

AFS104G-100M

Package size:

0 pcs

Min. order quantity is:

1 pcs

Reservdelar (1)

O-ring 90S

Partnumber: 37.69X3.53S

Specifications
Dimensions and shipping

Antal bolte

Bolt dimension

M10x40 mm

Diameter flange

50.8 mm

Dimension C

58.7 mm

Dimension E

30.2 mm

Flange

1.1/4 "

Flange SAE/DIN

3000 PSI

Gevind indvendig

G 1 BSP

Korrosions resistens

480 hours salt spray DIN EN 9227

Materiale

Stål

Mærke navn

Havit

O-ring

37.69X3.53 mm

Overfladebehandling

Zink-Nikkel belagt

Pakningsmateriale

NBR

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperatur maks.

+90 °C

Temperatur min.

-40 °C

Tryk maks.

280 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704295921136

Gross weight

0,80 Kg

Net weight

0,80 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Gevindflange 1.1/4" SAE3000 x 1" BSP - komplet
