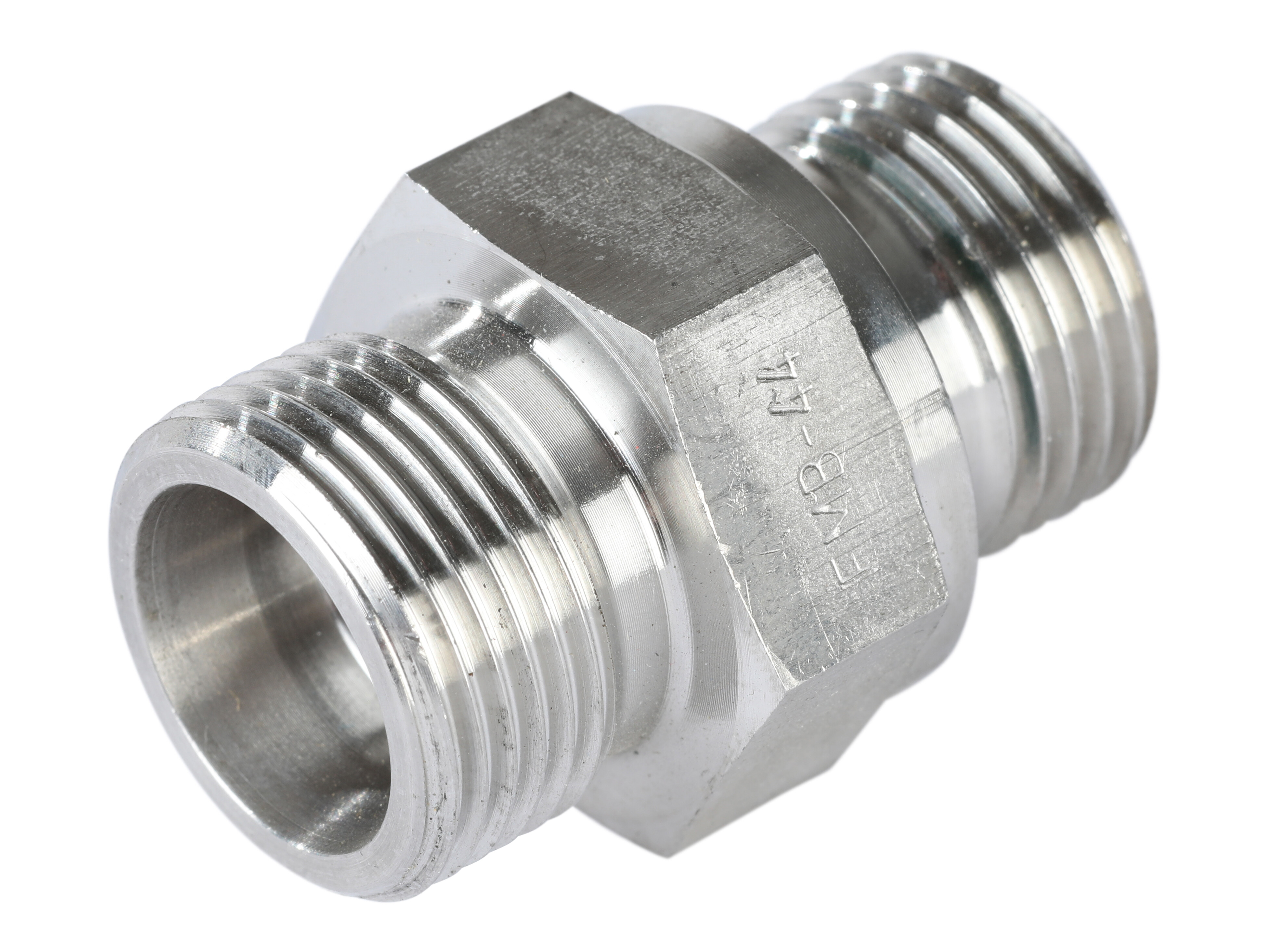

A20RSWDX/71 - Indskruning - ø20S x 3/4" BSP - WD pakning - AISI 316Ti
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
A20RSWDX/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
D1
20 mm
Diameter rør
20 mm
Dimension i
16 mm
Gevind T1
M30x2
Gevind udvendig
G 3/4 BSP
Gevind udvendig metrisk
M30x2
L1
59 mm
L2
47 mm
L3
20,5 mm
Materiale
Syrefast Stål
Materialekvalitet
1.4571 / AISI316Ti
Model kode
XGEV 20 SR 3/4 WD
Mærke navn
Volz
Pakningsmateriale
FKM/FPM (Viton®)
REACH compliant
Ja
RoHs compliant
Ja
S1
32 mm
S2
36 mm
Serie
S
Sikkerhedsfaktor
4
T2
180 mm
Temperatur maks.
+200 °C
Temperatur min.
-25 °C
Thread T2
G 3/4 BSP
Tryk maks.
400 bar
Vinkel
0 °
d1
20 mm
d2
16 mm
i
16 mm
Package size
0 pcs
Barcode
5704295351742
Gross weight
0,15 Kg
Net weight
0,15 Kg
Country of origin
DEU
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
