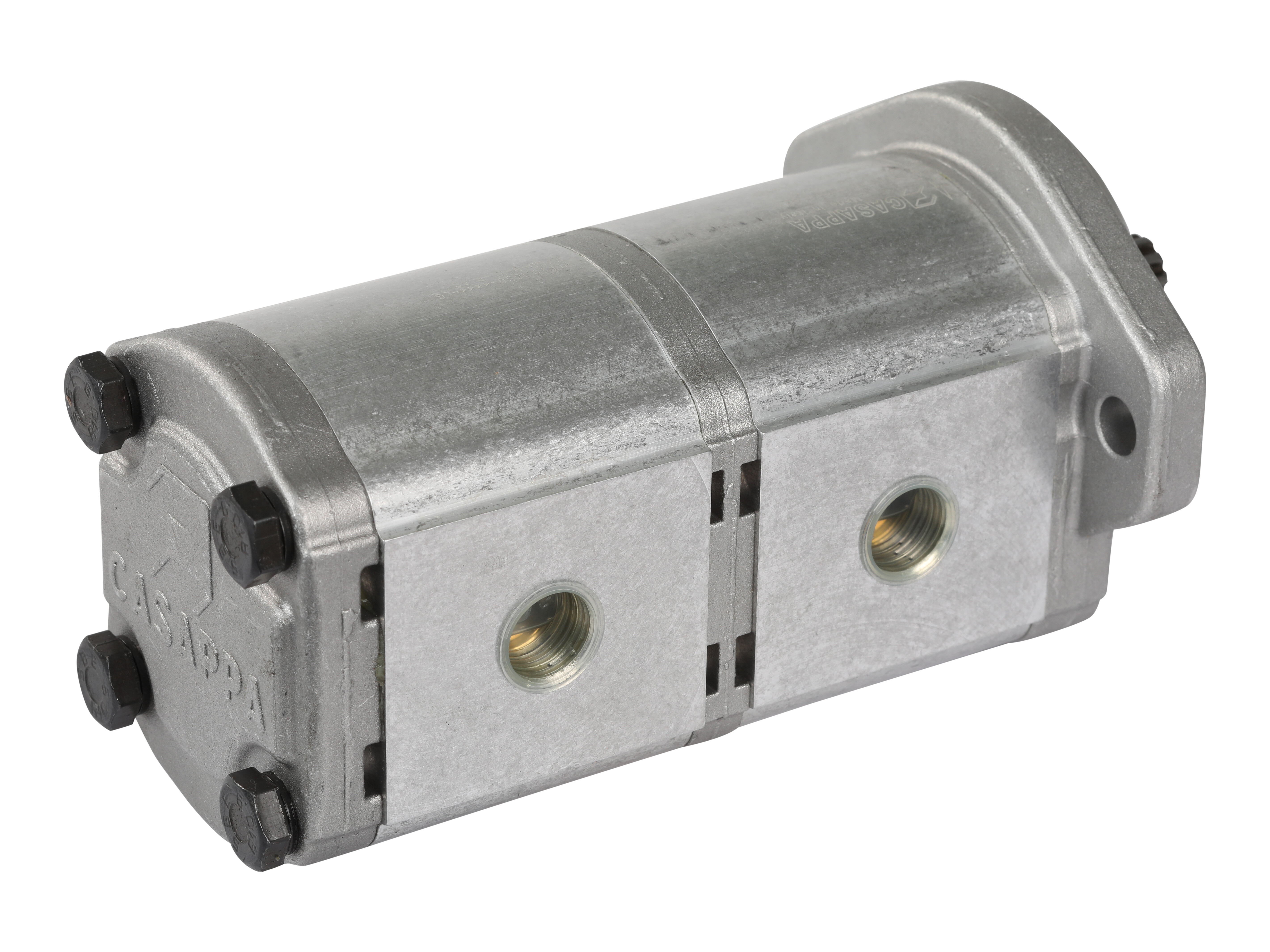

PLP20.16-01S1-LGE/GD-20.16- LGE/GD-S-FS-EL dobbeltpumpe

PLP20.16-01S1-LGE/GD-20.16- LGE/GD-S-FS-EL dobbeltpumpe

Varenummer:
67060422

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Brand Name
Casappa

Contamination level max.
19/17/13 - ISO 4406

Displacement P1
16.85 cm3

Displacement P2
16.85 cm3

Front pump
PLP20.16

Holes circle
106.4 mm

Model code
PLP20.16-01S1-LGE/GD-20.16-LGE/GD-S-FS-EL

Mounting flange
SAE-A2

Number of mounting holes
2

Number of outer grooves
10

Oil viscocity recommended
12 - 100 cSt

Pressure continous P1 max.
250 bar

Pressure continous P2 max.
250 bar

Pump group
2 + 2

Rear pump
PLP20.16

Recess
82,5 mm

Rotation direction
Venstre (CCW)

Rotational speed max.
3000 rpm

Rotational speed min.
500 rpm

Shaft spline
10T 16/32

Shaft type
Spline
Förpackningsstorlek
0 pcs

Streckkod
5704295849638

Bruttovikt
4,81 Kg

Nettovikt
4,81 Kg

Ursprungsland
ITA

Intrastat artikelkod
84136031

PLP20.16-01S1-LGE/GD-20.16- LGE/GD-S-FS-EL dobbeltpumpe
