Blok/trevejshane-3/8 BSP svær 3KH G3/8 10 1123 1 L01 gulkr.

3-vejs dråbetæt kuglehane, svær serie med L-boring. OBS!: spærrer for olien under omskiftning!

Partnumber:

3KH3/8-L01

Package size:

0 pcs

Min. order quantity is:

1 pcs

Reservedele (2)

Tætningssæt for kuglehane BK3 DN10 1123

Partnumber: BK3ALW10

Forkrøblet håndtag for DN20-25

Partnumber: SWF14-190

Specifications
Dimensions and shipping

Antal veje/positioner

3/2

Boring

Diameter indvendig

9 mm

Dimension B

80 mm

Dimension H

71 mm

Dimension H1

55 mm

Dimension L

115 mm

Gevind

G 3/8 BSP

Mærke navn

Pister Kugelhähne

Temperatur maks.

+60 °C

Temperatur min.

-20 °C

Tryk maks.

500 bar

Package size

0 pcs

Barcode

5704295022260

Gross weight

2,95 Kg

Net weight

2,95 Kg

Country of origin

DEU

Intrastat code

84812010

Product information

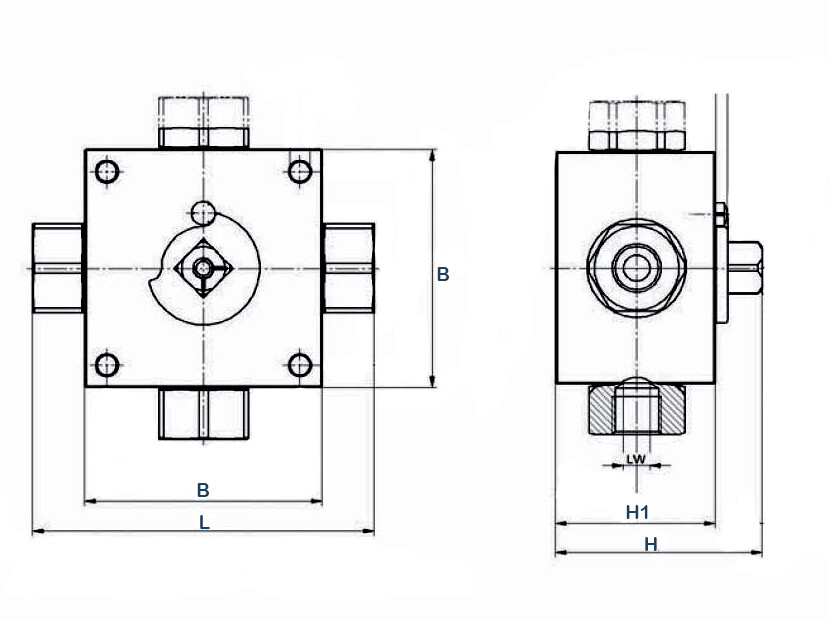

Measure sketch

3-vejs dråbetæt kuglehane, svær serie med L-boring. OBS!: spærrer for olien under omskiftning!
