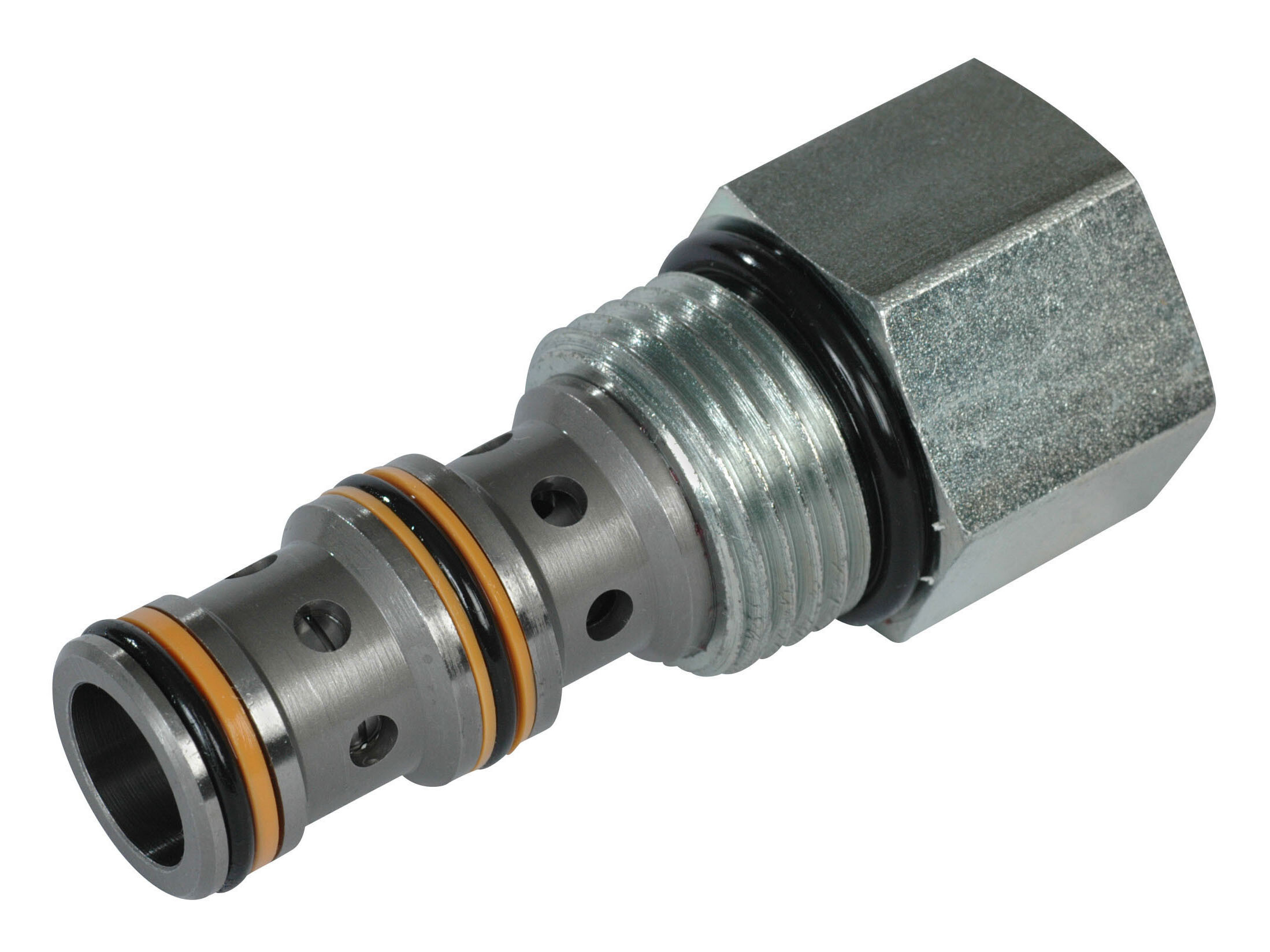

Fast Tryk Komp. Flow Vent. 38l/m 28l/m CP310-1-B-0-7.0

Fast Tryk Komp. Flow Vent. 38l/m 28l/m CP310-1-B-0-7.0

Denne ventil er en fast, trykkompenseret prioritetstype flowkontrolventil.

Partnumber:
135936
Package size:
0 pcs
Min. order quantity is:
1 pcs
HOUSING, SDC10-3-SE3B (3/8) SDC10-3-SE3B (3/8)
Partnumber: 922514310
HOUSING, SDC10-3-SE4B (1/2) SDC10-3-SE4B (1/2)
Partnumber: 922514410
Housing SDC10-3--SI3B (3/8)
Partnumber: 922514510
Housing SDC10-3--SI4B (1/2)
Partnumber: 922514610
KIT, SEAL CP10-3 CAV BUNA N #
Partnumber: 120240
Brand Name
Danfoss
Cavity
SDC10-3
Contamination level max.
20/18/14 - ISO 4406
Flow max. regulated
28 lpm
Flow min. regulated
28 lpm
Inlet flow max.
38 lpm
Model code
CP310-1-B-0-7.0
Oil viscocity recommended
12 - 54 cSt
Pressure compensated
Nej
Pressure max.
210 bar
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
41 - 47 Nm
Package size
0 pcs
Barcode
5704334467601
Gross weight
0,13 Kg
Net weight
0,13 Kg
Country of origin
ITA
Intrastat code
84812010

Denne ventil er en fast, trykkompenseret prioritetstype flowkontrolventil.

Produkt datablad
