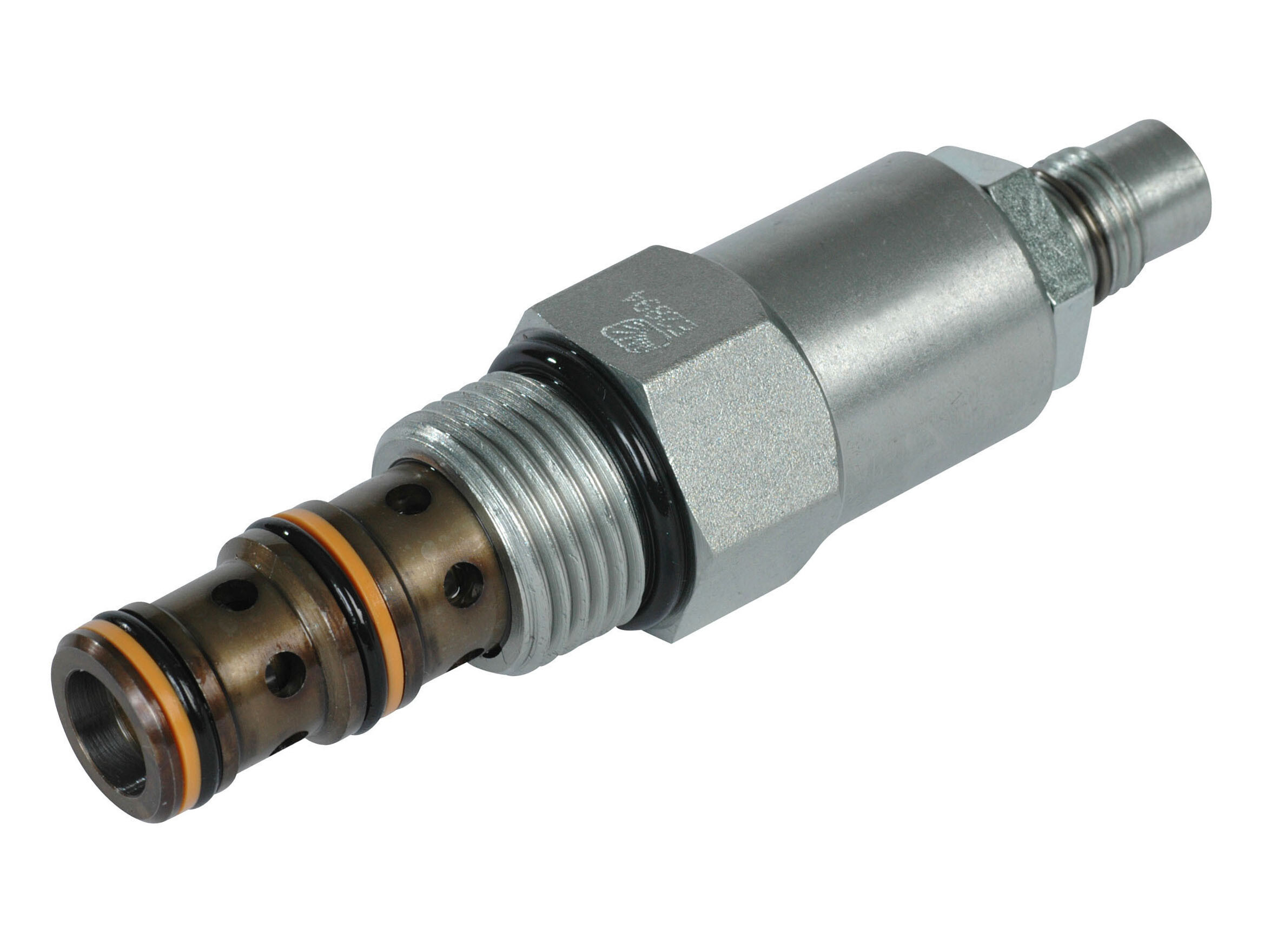

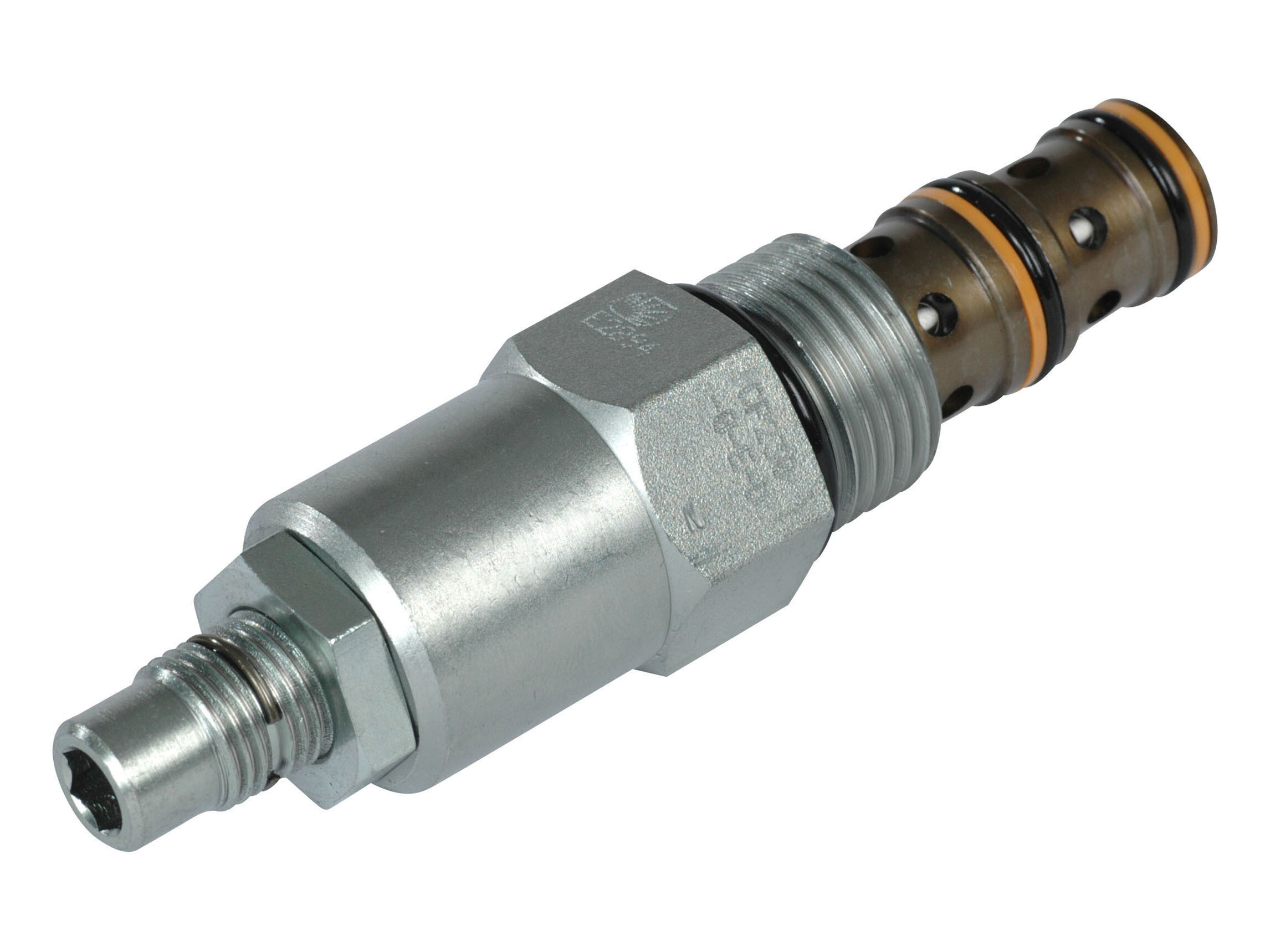

Press. Reducing valve 40l/m 28-245bar CP230-4-B-0-E-D-XXX
CP230-4, Pressure Reducing, Non-Relieving, Pilot Operated
This is a normally open, pilot operated pressure reducing valve. Port 2 is open to port 1 until the setting is reached at which time the valve throttles the outlet flow limiting the pressure. Port 3 is a drain port only, as the valve does not contain a relief function. This valve is ideal for stable and precise control of a secondary pressure within a circuit.
Artikelnummer:
135071.000
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Danfoss
Cavity
SDC10-3
Contamination level max.
20/18/14 - ISO 4406
Flow rate nominal LMin
40 lpm
Key size
25.4 mm
Material
Steel
Model code
CP230-4-B-0-E-D-XXX
Oil viscocity recommended
12 - 54 cSt
Pressure max.
350 bar
Pressure setting max.
350 bar
Pressure setting min.
28 bar
Sealing material
NBR
Torque tightening
64 - 73 Nm
Pakke str.
0 pcs
Stregkode
5704334468578
Brutto vægt
0,23 Kg
Netto vægt
0,23 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
CP230-4, Pressure Reducing, Non-Relieving, Pilot Operated
This is a normally open, pilot operated pressure reducing valve. Port 2 is open to port 1 until the setting is reached at which time the valve throttles the outlet flow limiting the pressure. Port 3 is a drain port only, as the valve does not contain a relief function. This valve is ideal for stable and precise control of a secondary pressure within a circuit.
