131337 - Retn.ventil, Manuel, 50l/m CP600-2-B-0-10-B

131337 - Retn.ventil, Manuel, 50l/m CP600-2-B-0-10-B

Manuel betjent patronventil, 50 l/min. 210 bar. Normalt lukket.

Sædeventil.

Uaktiveret: Lukket i begge retninger.

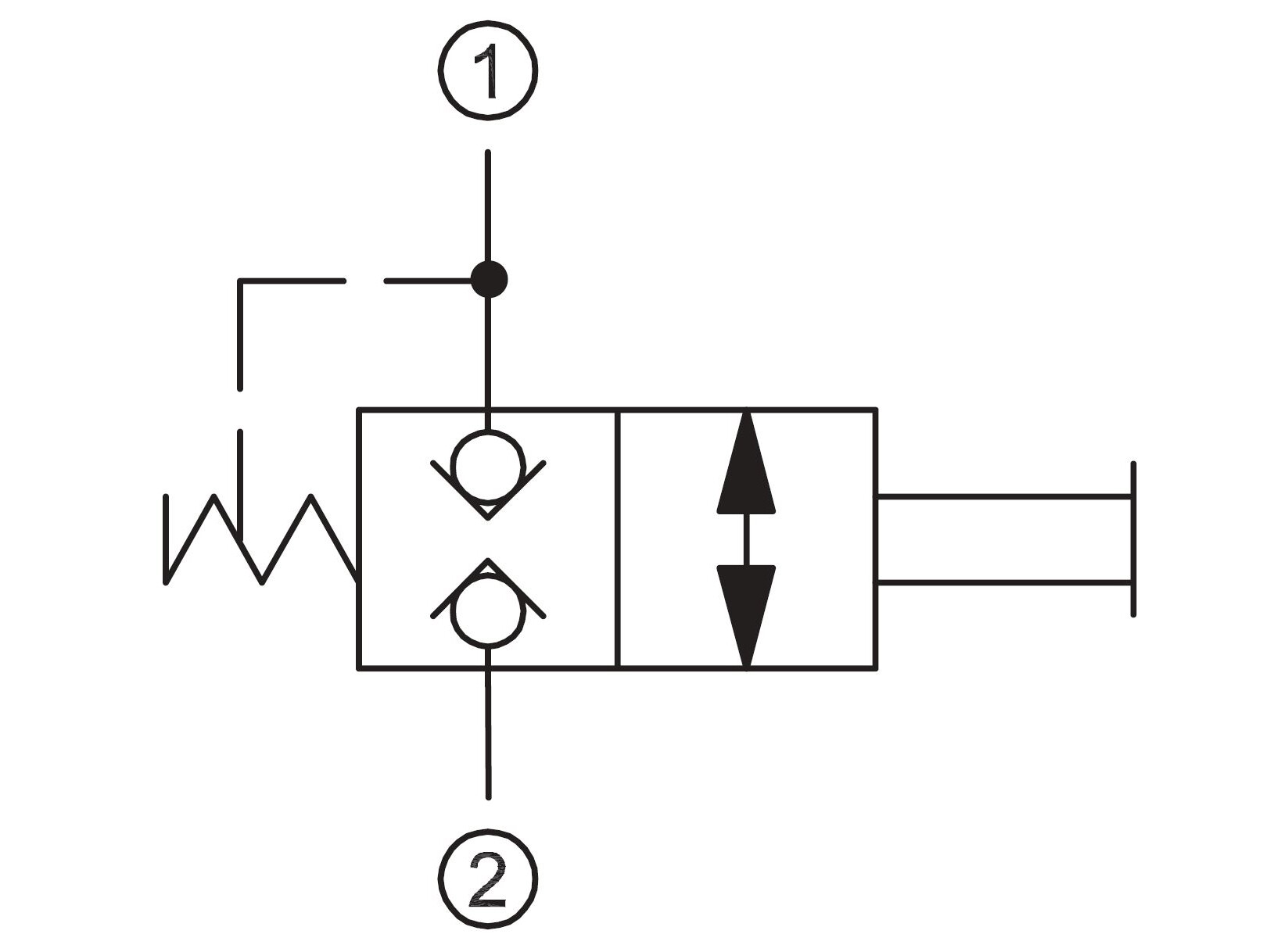

Aktiveret (manuel): Åben i begge retninger. (Se symbolet tilknyttet ventilen).

Partnumber:
131337
Package size:
0 pcs
Min. order quantity is:
1 pcs
11135684 - Mix-N-Match Dual Cross Body 1/2"DCP10-2-4B
Partnumber: 11135684
11137221 - Mix-N-Match Dual Parallel Body 1/2"DPL10-2-4B
Partnumber: 11137221
11143048 - Ventilhus SDC10-2-S3B stål 3/8" port
Partnumber: 11143048
11143049 - Ventilhus SDC10-2-S4B stål 1/2" port
Partnumber: 11143049
922514110 - Ventilhus SDC10-2-LG14B 1/2
Partnumber: 922514110
922514210 - Ventilhus SDC10-2-LG24B 1/2
Partnumber: 922514210
922516910 - Ventilhus SDC10-2-DG3B 3/8
Partnumber: 922516910
922517010 - Ventilhus SDC10-2-DG4B 1/2
Partnumber: 922517010
KIT SEAL - BUNA-N #
Partnumber: 120015
Activation
Manuel
Brand Name
Danfoss
Cavity
SDC10-2
Contamination level max.
20/18/14 - ISO 4406
Filter built-in
Nej
Flow rate nominal LMin
50 lpm
Manual operated
Ja
Model code
CP600-2-B-0-10-B
Number of ways/positions
2/2
Oil viscocity recommended
12 - 54 cSt
Pressure max.
210 bar
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
41 - 47 Nm
Valve type
NC - Normalt lukket
Package size
0 pcs
Barcode
5704334467465
Gross weight
0,14 Kg
Net weight
0,14 Kg
Country of origin
ITA
Intrastat code
84812010

Manuel betjent patronventil, 50 l/min. 210 bar. Normalt lukket.

Sædeventil.

Uaktiveret: Lukket i begge retninger.

Aktiveret (manuel): Åben i begge retninger. (Se symbolet tilknyttet ventilen).

Produkt datablad
