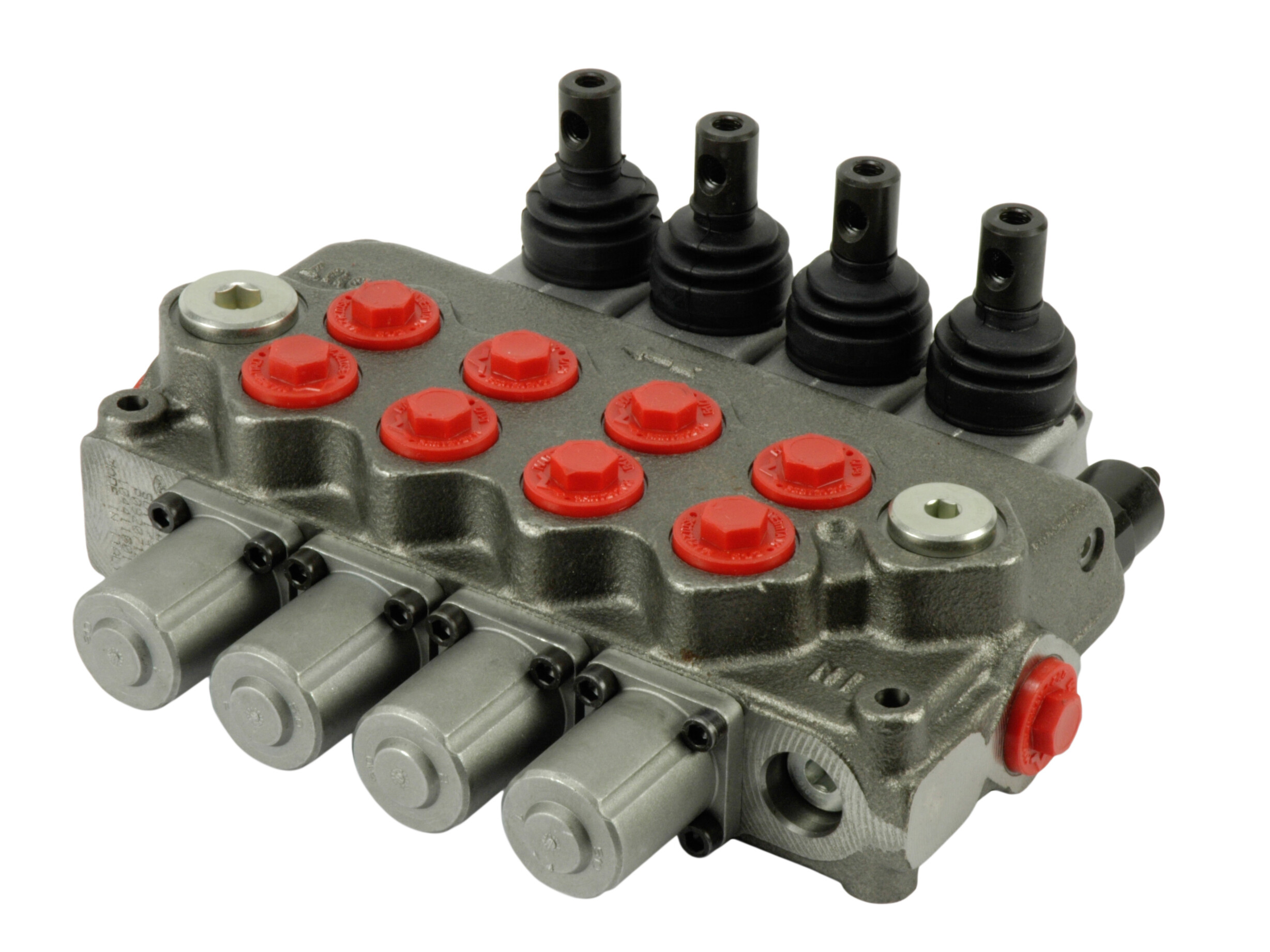

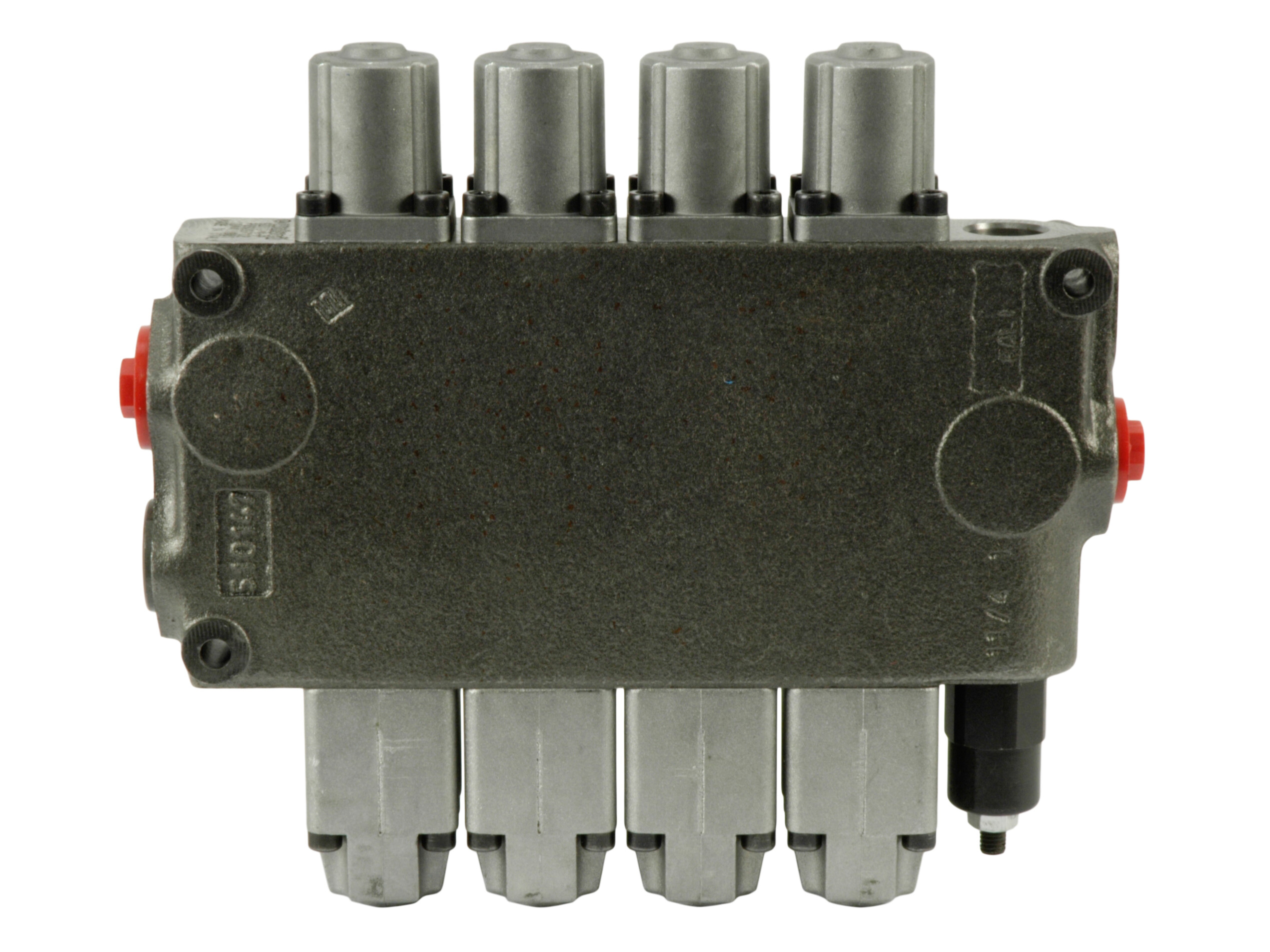

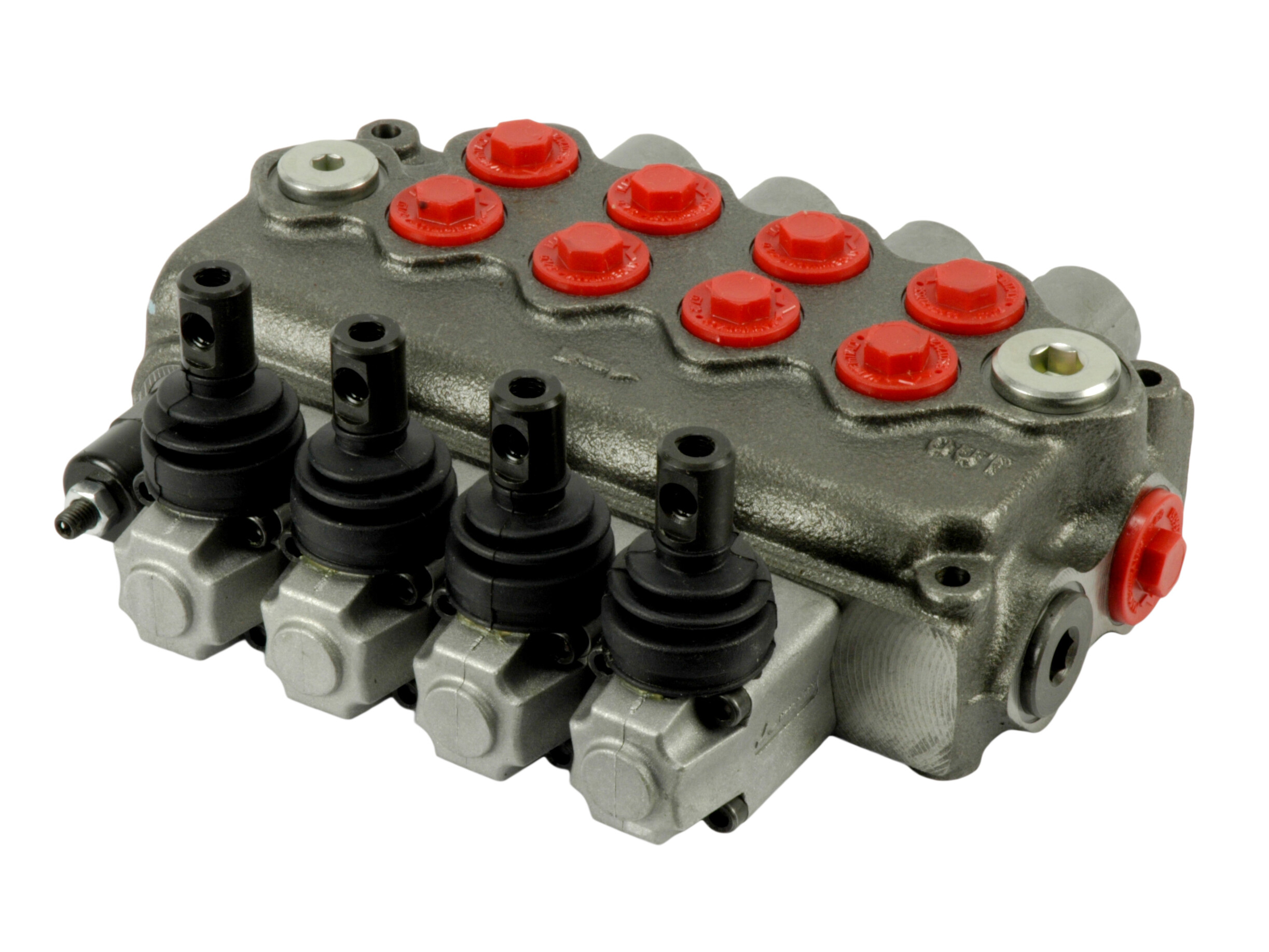

SD11/4-P(KG3-120)/18L/18L/18L/ 18L/AET

4-sektions SD11 monoblok retningsventil med indbygget trykbegrænsningsventil og 4 parallelforbundne glidere. Manuelt aktiverede med håndtag.

Gliderfunktion: 4 x dobbeltvirkende med port A og B lukket i neutralstilling. Fjedercentrerede.

Åbent center med gennemløb P til T i neutralstilling.

AET = Forberedt for montering af trykvidereføringsbøsning (port afproppet).

Varenummer:

104411001

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tilbehør (4)
Reservedele (3)

Håndtag AL01-M10x150, Walvoil L/SD/DLS7

Partnumber: 170012015

Håndtag AL01-M10x200, Walvoil L/SD8,SD11,SD14,SD16

Partnumber: 170012020

SD11/AEK closed center plug 3/4" BSP

Partnumber: 3XTAP532450

Lever 4 pcs AL01-M10x200 L/SD8,SD11,SD14,SD16

Partnumber: 4X170012020

O-ring

Partnumber: 20.22X3.53

SD11/8 Kit for spring return to neutral

Partnumber: 5V08110000

Rubber bellow SD11-SD14-SD16- SD18-SDS180 std.lever housing

Partnumber: SOF139350

Specifications
Dimensions and shipping

Antal sektioner

Arbejdsporte

G 1/2 BSP

Flow Nominel

70 lpm

Forureningsgrad maks.

-/19/16 - ISO 4406

Håndtag

Eksklusiv

Materiale

Støbejern

Model kode

SD11/4-P(KG3-120)/18L/18L/18L/18L/AET

Mærke navn

Walvoil

Olieviskositet anbefalet

12 - 400 cSt

Port P1

G 1/2 BSP

Port P2

G 1/2 BSP

Port T1

G 3/4 BSP

Port T2

G 3/4 BSP

Tryk T maks.

25 bar

Tryk maks.

315 bar

Trykbegrænsningsventil

Trykindstilling maks.

200 bar

Trykindstilling min.

63 bar

Trykvidereføring

Nej

Package size

0 pcs

Barcode

5704334152798

Gross weight

14,29 Kg

Net weight

14,29 Kg

Country of origin

ITA

Intrastat code

84812010

Product information

4-sektions SD11 monoblok retningsventil med indbygget trykbegrænsningsventil og 4 parallelforbundne glidere. Manuelt aktiverede med håndtag.

Gliderfunktion: 4 x dobbeltvirkende med port A og B lukket i neutralstilling. Fjedercentrerede.

Åbent center med gennemløb P til T i neutralstilling.

AET = Forberedt for montering af trykvidereføringsbøsning (port afproppet).
