NG06 pressure relief valves Atos HMP

NG06 pressure relief valves Atos HMP

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure setting min. Pressure setting max.

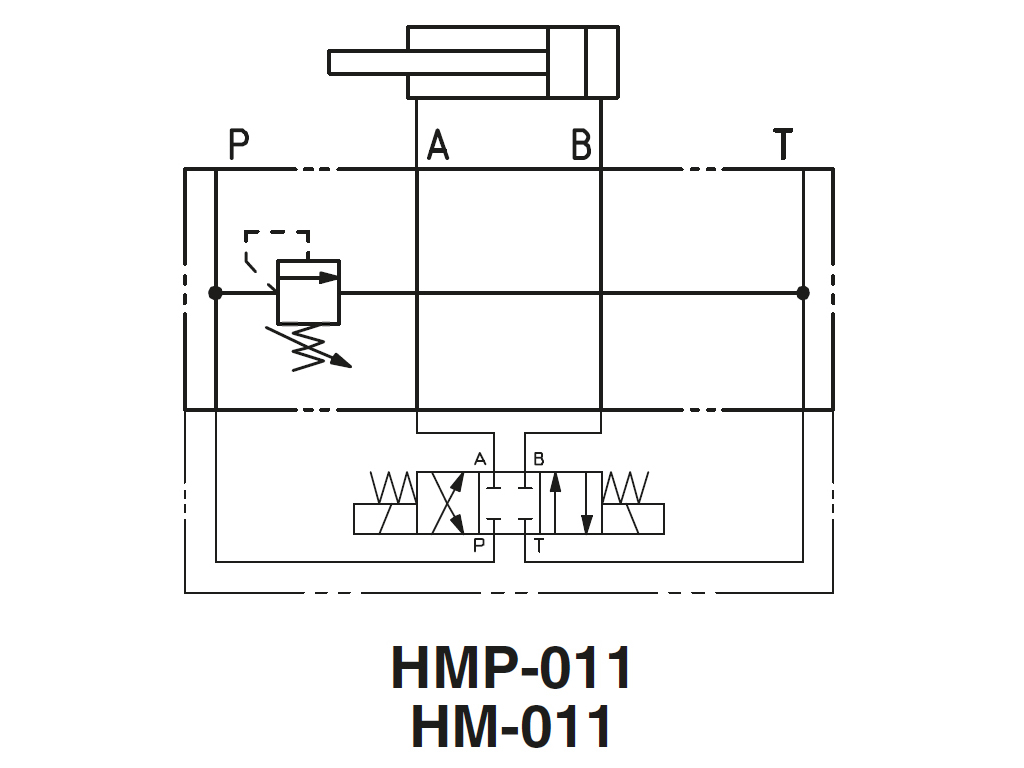

HMP011/210 Cetop3 pressure relief valve P 10-210 bar 10 bar 210 bar
HMP011/350 Cetop3 pressure relief valve P 15-350 bar 15 bar 350 bar

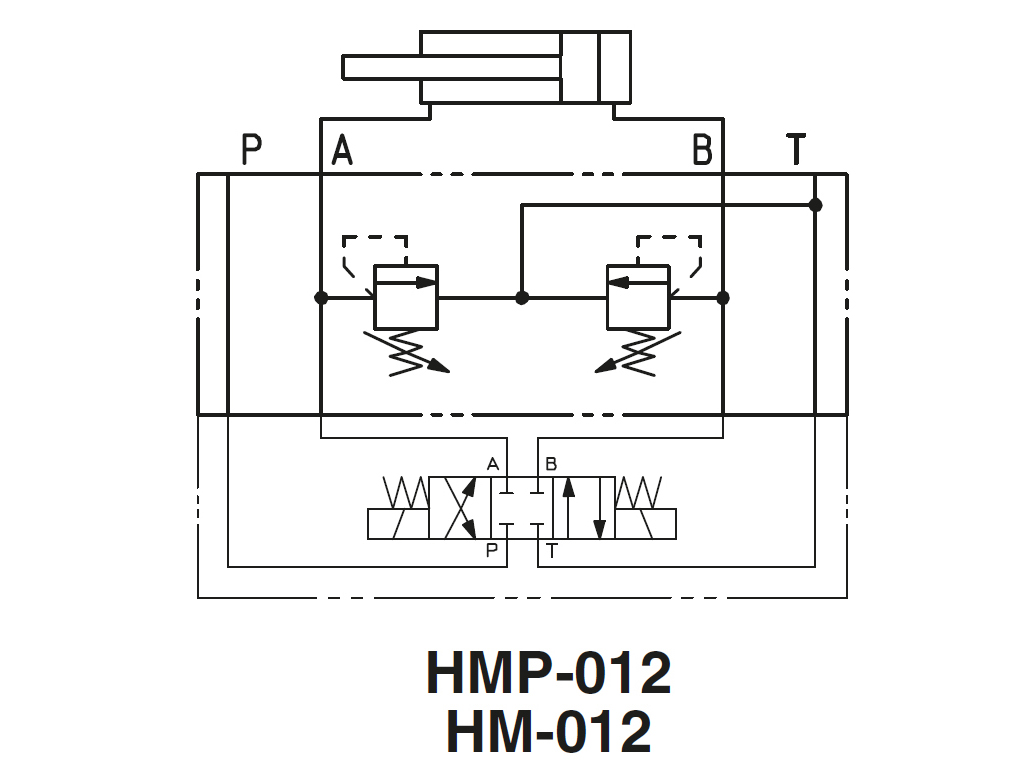

HMP012/100 Cetop3 pressure relief valve A 3-100 bar 3 bar 100 bar
HMP012/210 Cetop3 pressure relief valve A 10-210 bar 10 bar 210 bar
HMP012/350 Cetop3 pressure relief valve A 15-350 bar 15 bar 350 bar

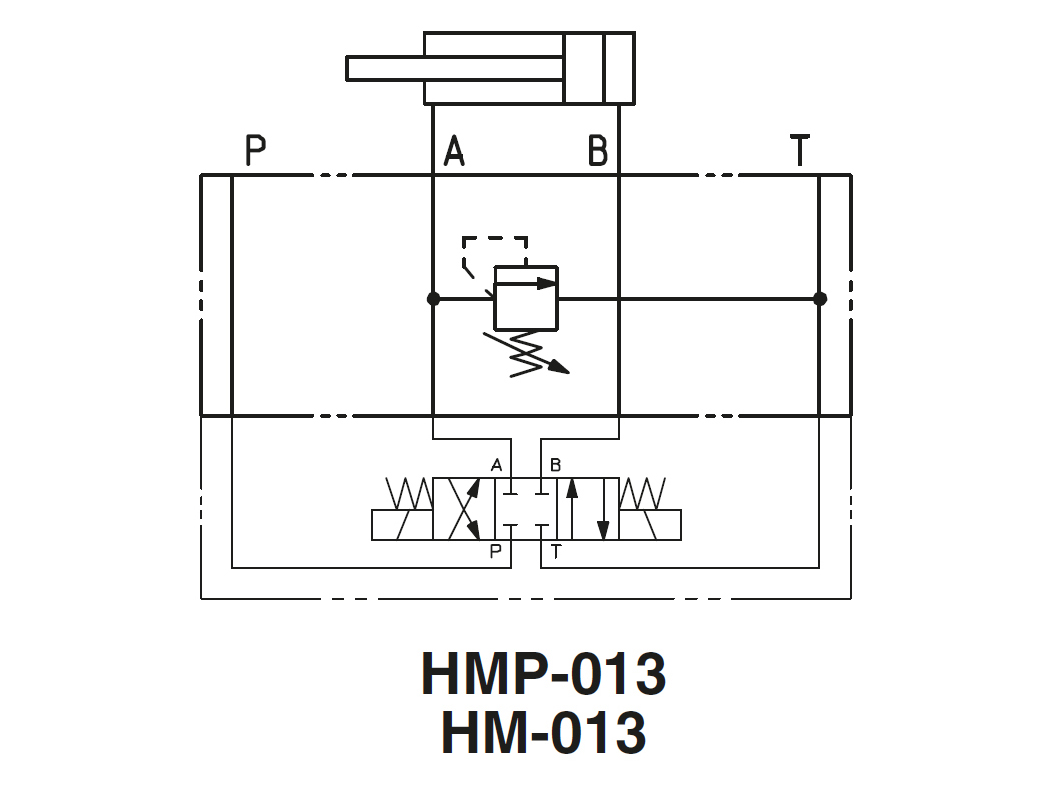

HMP013/100 Cetop3 pressure relief valve A 3-100 bar 3 bar 100 bar
HMP013/210 Cetop3 pressure relief valve A 10-210 bar 10 bar 210 bar
HMP013/350 Cetop3 pressure relief valve A 15-350 bar 15 bar 350 bar

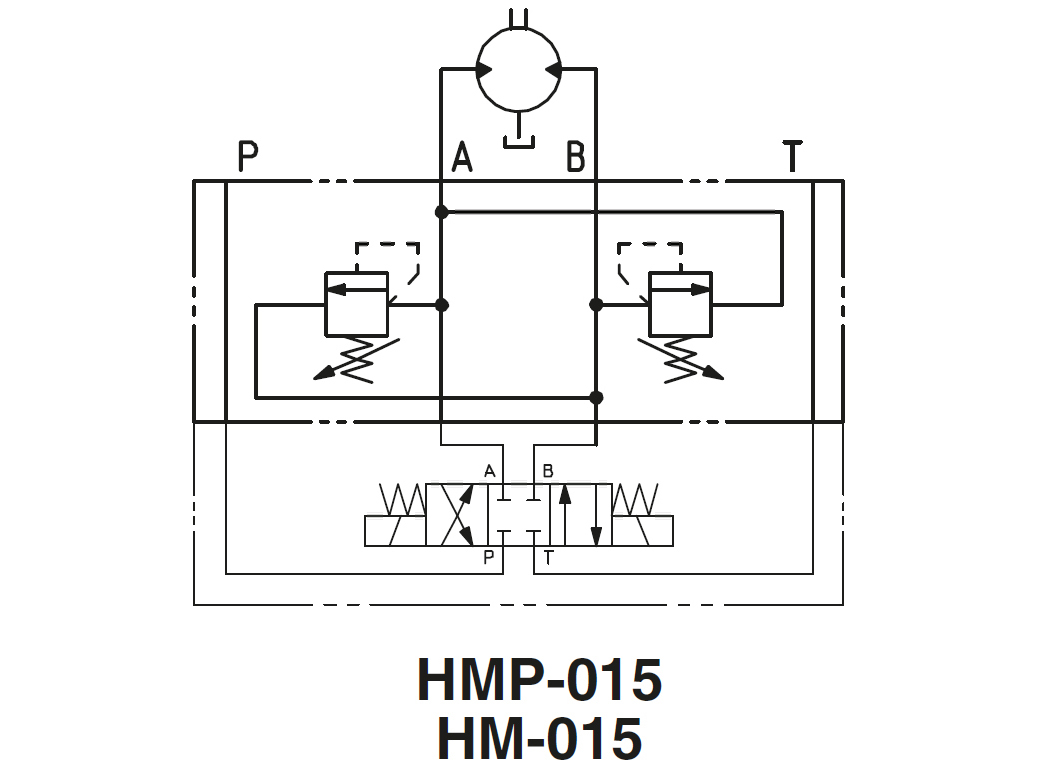

HMP015/210 Cetop3 pressure relief valve 10-210 bar 10 bar 210 bar
Brand Name
Atos
Contamination level max.
20/18/15 - ISO 4406
Flow rate nominal LMin
35
NG ISO-size
NG06
Oil viscocity recommended
15 - 100
Pressure max.
350
Standard ISO
ISO 4401
Temperature max.
+80
Temperature min.
-20
Valve type
Pressure relief valve
