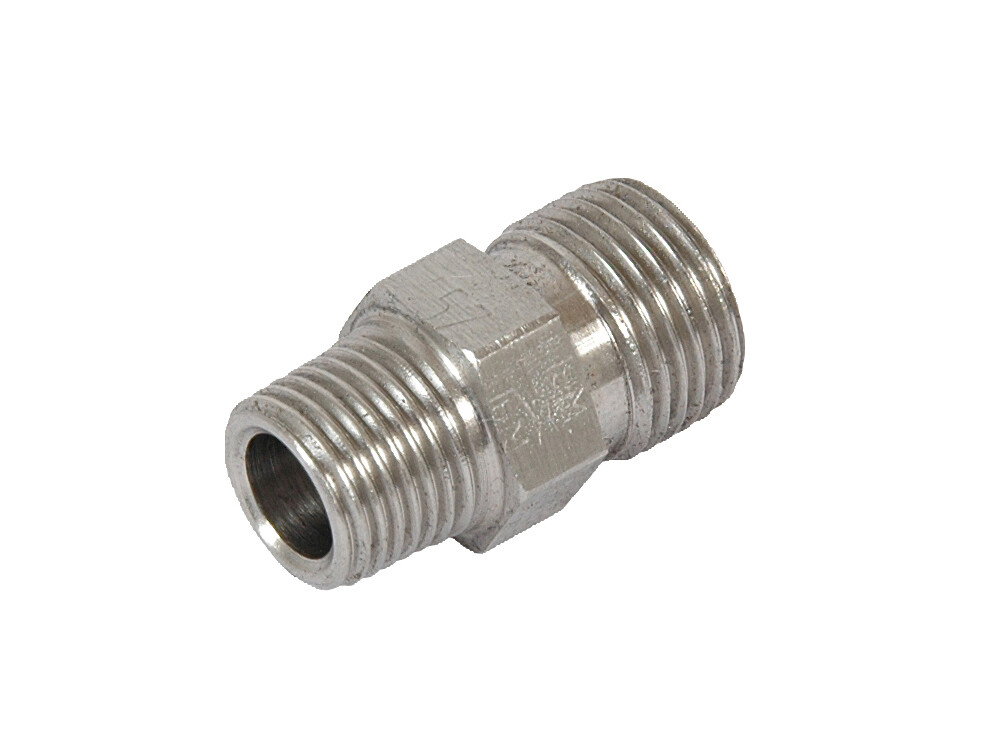

Straight fitting 0° - LL-series - DIN male x BSPT male stud stainless - A-RLLX/71 / XGE-LLR-SY

SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Pressure max.
A04RLLX/71 Stud fitting - ø4LL x 1/8" BSPT - AISI316 4 mm R 1/8 BSPT 100 bar
A06RLLX/71 Stud fitting - ø6LL x 1/8" BSPT - AISI316 6 mm 100 bar
A08RLLX/71 Stud fitting - ø8LL x 1/8" BSPT - AISI316 8 mm R 1/8 BSPT 100 bar
Angle
0

Brand Name
Volz

Material
Acid-resistant steel

Material quality
1.4571 / AISI316Ti

Pressure max.
100

REACH compliant
Yes

RoHs compliant
Yes

Safety factor
4

Series
LL

Temperature max.
+400

Temperature min.
-60
