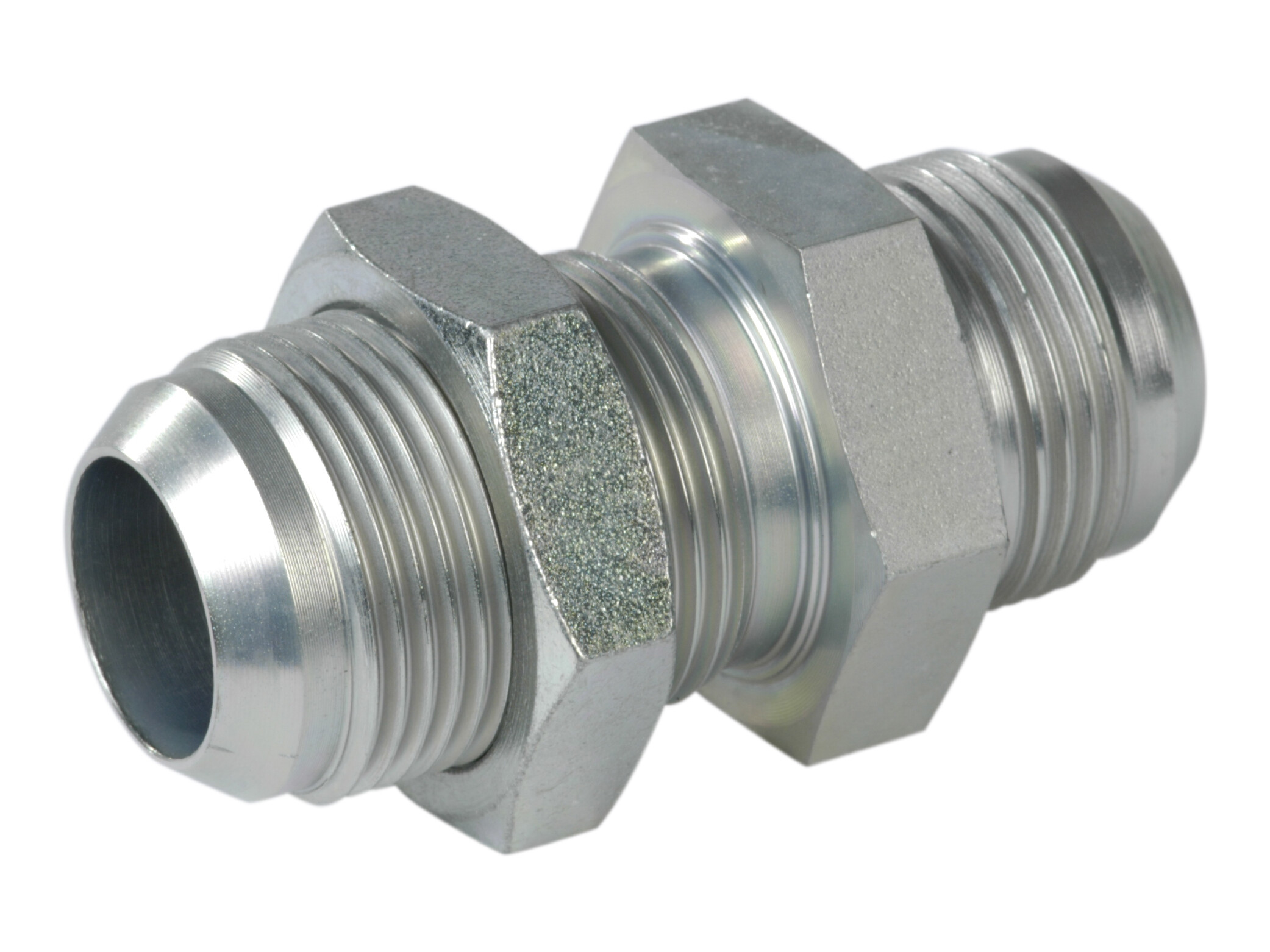

S250-25L bulkhead connection

Artikelnummer:

JSV-16

Förpackningsstorlek:

10 st

Minsta beställningskvantitet:

1 st

Accessories (1)

Bushing

Partnumber: JD-25

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

25 mm

Dimension A

80 mm

Dimension B

23 mm

Dimension CH

41 mm

Dimension CH1

41 mm

Dimension D

45.5 mm

Dimension J

1.5/16-12 JIC

Dimension J1

1.5/16-12 JIC

Dimension T

25 mm

Dimension T1

25 mm

Material

Steel

Pressure max.

290 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

1.5/16-12 JIC

Package size

10 st

Barcode

144118

Gross weight

0,36 Kg

Net weight

0,36 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S250-25L bulkhead connection

Note: Opening 3D files requires a program that supports the file format
