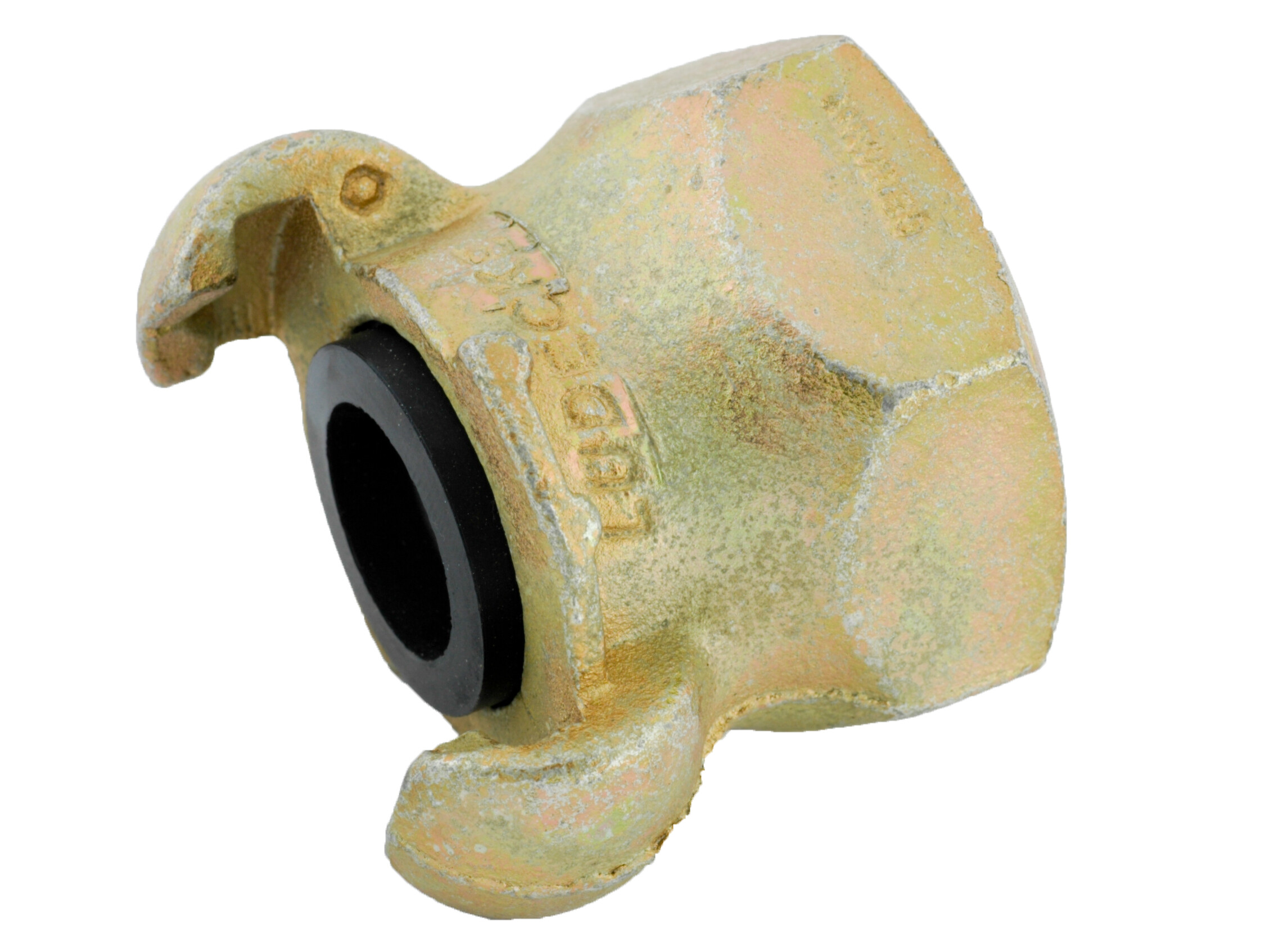

Airpressure coupling female thread, KIG

Airpressure coupling female thread, KIG

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max. Spigot distance Thread
0202620006 Pneumatic coupling type KIG14. Female BSP. 10 bar 42 mm G 1/4 BSP
0202620010 Pneumatic coupling type KIG38. Female BSP. 10 bar 42 mm G 3/8 BSP
0202620013 Pneumatic coupling type KIG12. Female BSP. 10 bar 42 mm G 1/2 BSP
0202620019 Innengevinde, DIN 3482, kig 34 10 bar 42 mm G 3/4 BSP
0202620025 Pneumatic coupling type KIG10. Female BSP. 10 bar 42 mm G 1 BSP
0202620032 Pneumatic coupling type KIG54. Female BSP. 10 bar 42 mm G 1.1/4 BSP
Angle
0
Brand Name
Ludecke
Material
Cast iron
Pressure max.
10
Sealing material
NBR
Spigot distance
42
Standard DIN
DIN 3489
Surface treatment
Yellow passivated, Zinc-plated
Temperature max.
+95
Temperature min.
-40
Thread ISO standard
ISO 228
Width
63
